Low Speed High Torque Orbital Motor Geometric Displacement 201.4 Cm3

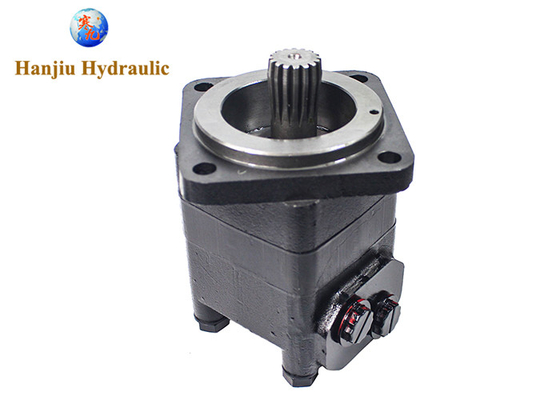

Large Image : Low Speed High Torque Orbital Motor Geometric Displacement 201.4 Cm3

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	OMTS200 - 151B3037

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Negotiable
Packaging Details:	36x32x18cm/ 2 pcs/ carton, 720 pcs/ 20' GP.
Delivery Time:	20 - 25 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability:	10000 pieces per months

Contact Now

Detailed Product Description

Type:	Hydraulic Drive Motor	Manufacturer:	HANJIU
Model No.:	OMTS200 - 151B3037	Size:	200 Ml/r
Replace:	Danfoss OMT Series	Flange:	4-hole Flange
Shaft:	No	Oil Port:	3/4 BSP
Drain :	1/4 BSP	Application:	Any Place Need Hydraulic Drive
Highlight:	Low Speed High Torque Orbital Motor , 201.4 Cm3 Orbital Motor , OMTS200 - 151B3037

Orbital Motor OMTS200 - 151B3037, Low Speed High Torque motor, Geometric Displacement 201.4 cm3

Quick review:

1,	model number	151B3037
2,	displacement	200 ml/r
3,	flange	4 - hole flange
4,	shaft	No
5,	oil port	3/4 BSP
6,	drain	1/4 BSP
7,	rotation	Standard
8,	paint	Black
9,	replace	Danfoss OMTS

HANJIU Hydraulics deliver OMT SERIES orbit motors for replacement. A lot of builds from the EUROPE have special engine from Danfoss OMTS mounted. We are able to deliver a large number of compatible engines on a short notice.

HANJIU OMTS/BMTS = Danfoss OMTS

Specifications:

Main Specifications:

Type		BMT 160	BMT 200	BMT 230	BMT 250	BMT 315	BMT 400	BMT 500	BMT 630	BMT 800
Geometric displacement (cm3 /rev.)		161.1	201.4	232.5	251.8	326.3	410.9	523.6	629.1	801.8
Max. speed (rpm)	cont.	625	625	536	500	380	305	240	196	154
Max. speed (rpm)	int.	780	750	643	600	460	365	285	233	185
Max. torque (N·m)	cont.	470	590	670	730	950	1080	1220	1318	1464
	int.	560	710	821	880	1140	1260	1370	1498	1520
	peak	669	838	958	1036	1346.3	1450.3	1643.8	1618.8	1665
Max. output (kW)	cont.	27.7	34.9	34.7	34.5	34.9	31.2	28.8	25.3	22.2
Max. output (kW)	int.	32	40	40	40	40	35	35	27.5	26.8
Max. pressure drop (MPa)	cont.	20	20	20	20	20	18	16	14	12.5
	int.	24	24	24	24	24	21	18	16	13
	peak	28	28	28	28	28	24	21	19	16
Max. flow (L/min)	cont.	100	125	125	125	125	125	125	125	125
Max. flow (L/min)	int.	125	150	150	150	150	150	150	150	150
Max. inlet pressure (MPa)	cont.	21	21	21	21	21	21	21	21	21
	int.	25	25	25	25	25	25	25	25	25
	peak	30	30	30	30	30	30	30	30	30
Weight (kg)		19.5	20	20.4	20.5	21	22	23	24	25

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

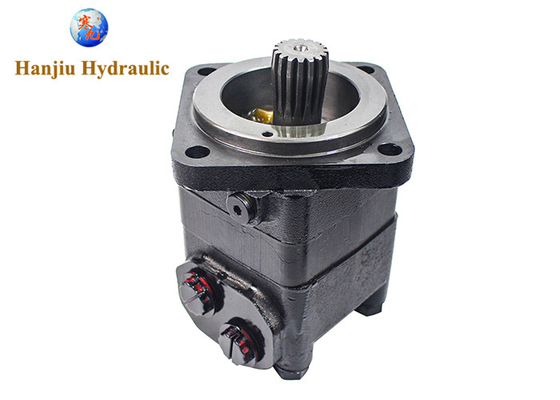

Low Speed High Torque Orbital Motor Geometric Displacement 201.4 Cm3 0

Applications:
• Trenchers
• Skid Steer Attachments
• Zero Turn Mowers
• Golf Course Maintenance Equipment
• Sweepers
• Wood Chippers
• Conveyers
• Combine Harvesters
• Winches
• Augers
• Portable Irrigation Systems
• Post Hole Augers
• Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape Specialty Harvesters
• Combine Header Drives
• Sprayers
• Scissor Lifts
• Snow Removal
• Salt and Sand Spreaders
• Oil and Gas Blender Trucks
• Mini and Walk-Behind Skid Steers
• Tool Carriers
• Pipe Spinners

About Hanjiu:

Hanjiu produce variety of hydraulic parts to suit range of brands & applications. We can vast your business.

We introduce us as advantage supplement of your current hydraulic supply, solve reliability, quality, time, cost, brand promotion.

Send your request to get our latest quote.

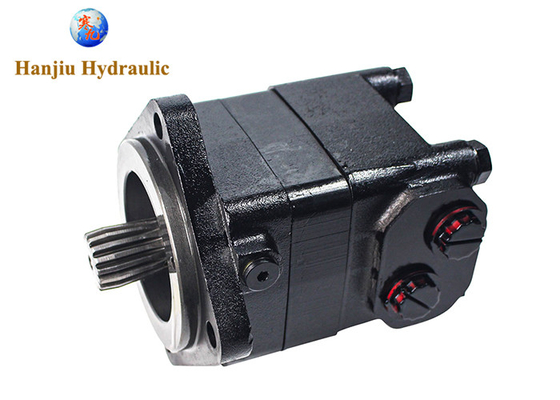

Low Speed High Torque Orbital Motor Geometric Displacement 201.4 Cm3 1

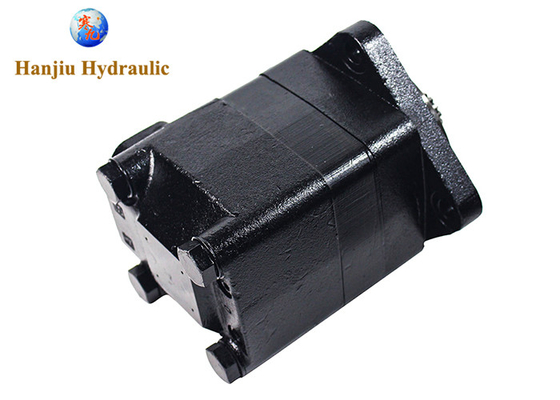

Low Speed High Torque Orbital Motor Geometric Displacement 201.4 Cm3 2
