Product Details:
Payment & Shipping Terms:
|
| Type: | HEAVY DUTY TORQMOTOR | Model No.: | BMTE250 |
|---|---|---|---|
| Max Speed: | Cont.500/int.600 Rpm | Max Torque: | Cont.730/int.880 N.M |
| Max Output: | Cont.34.5/int.40kw | Max Pressure: | Cont.20mpa/int.24mpa |
| Highlight: | Parker TK0250 High Torque Motor,1/4' Key Straight Shaft Parker Motor,High Torque Parker Motor |
||

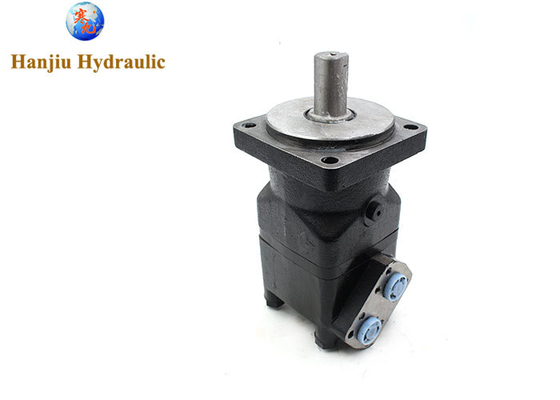

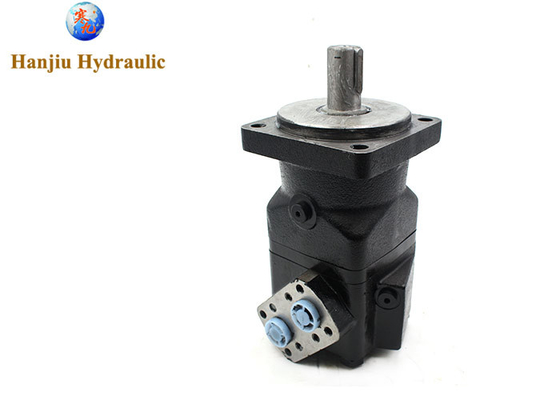

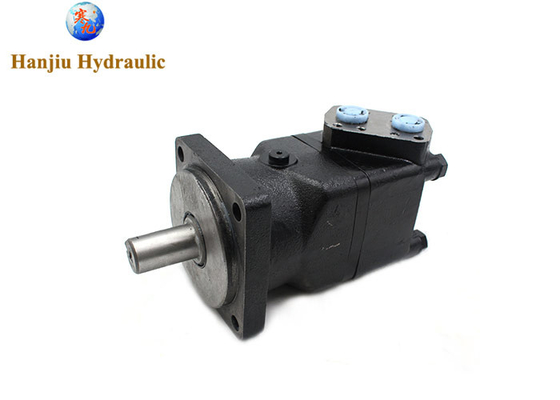

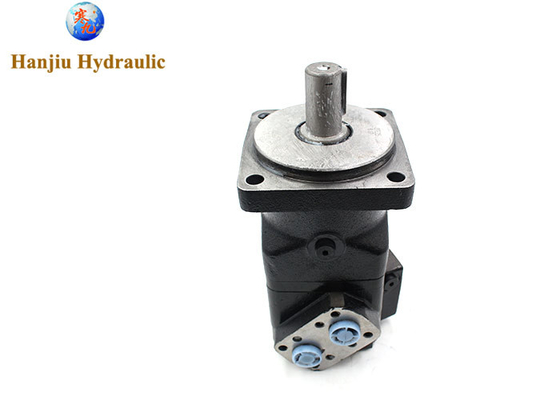

Parker TK0250 High torque motor, 1 1/4' key straight shaft ,3/4 inch side ports heavy duty motor
Hanjiu hydraulic supply the BMTE motors, matching PARKER TK series motors
that is BMTE-0250=TK0250
Details:
- Displacement: 250cc
- Shaft: 31.75mm key shaft
- Flange: 4-hole square flange φ161.9, pilot φ127x12
- Ports: 3/4 inch ports
Main spec.
| Type | BMTE 160 | BMTE 200 | BMTE 230 | BMTE 250 | BMTE 315 | BMTE 400 | BMTE 500 | BMTE 630 | BMTE 800 | |
| Geometric displacement (cm3 /rev.) |
161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N·m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max. pressure drop (MPa) |
cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (MPa) |
cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
Hanjiu Technology has a professional R&D and production team with a good reputation and rich production experience. And Hanjiu Technology always adheres to the service concept of customer first, so as to ensure the rights and interests of every customer. At Hanjiu, you can buy the best quality products in the same category at a high cost performance
Hanjiu Technology has more than ten years of experience. The hydraulic cycloid motors produced by them can completely replace the hydraulic motors manufactured by big companies such as Parker and Danfoss. You can rest assured of the quality. In addition, Hanjiu Technology always adheres to the concept of giving as much profit as possible to distributors, so the products we provide have super high cost performance.
