Product Details:
Payment & Shipping Terms:
|
| Type: | Hydraulic Drive Motor | Model No.: | BMT 500 |
|---|---|---|---|
| Max Speed: | Cont.240/int.285 Rpm | Max Torque: | Ocnt.1220/int.1370 N.M |
| Max Output: | Cont.28.8/int.35kw | Max Pressure: | Cont.16mpa/int.18mpa |
| Highlight: | Hydraulic Drive Motor OMT500,H673971 Hydraulic Drive Motor,H673971 hydraulic motor |
||

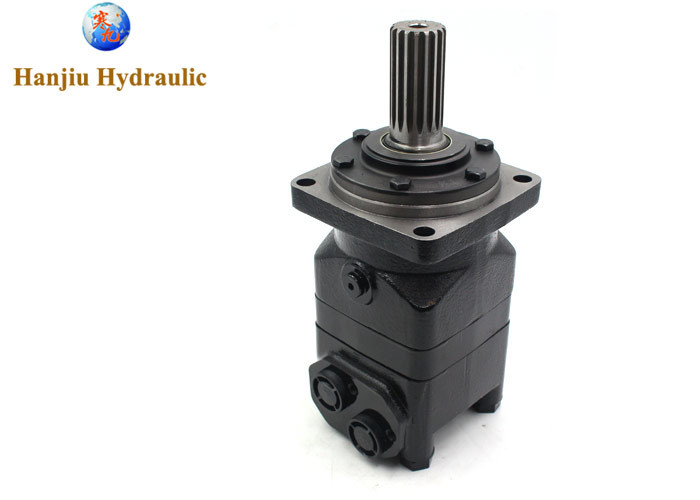

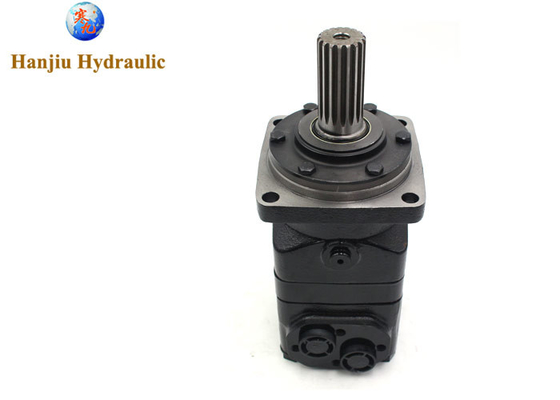

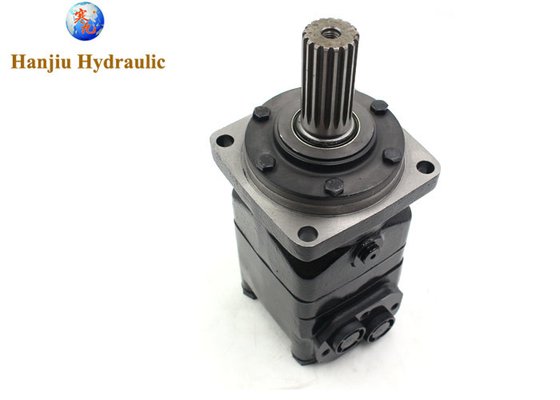

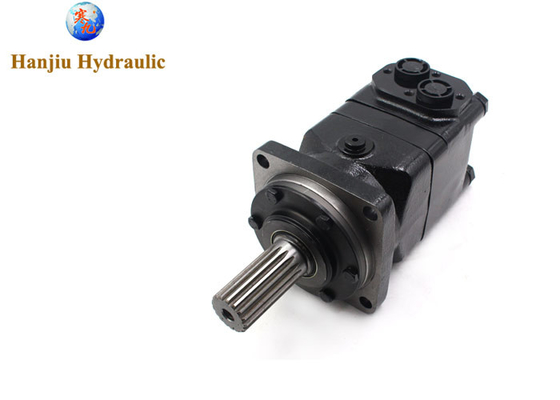

product details:
type:BMT Series motor
flange:4bolts flange
shaft:spline shaft, 14teeth
ports:BSP G3/4
Main specification:
| Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 500 | BMT 630 | BMT 800 | |
| Geometric displacement (cm3 /rev.) |
161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N·m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max. pressure drop (MPa) |
cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (MPa) |
cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
Hanjiu Hydraulics has produced hydraulic motors for more than ten years, from small displacement to large displacement, from small horses to heavy motors, our products have been recognized by customers,These hydraulic motors are ideal if your hydraulic system requires a quality motor. There are light series hydraulic motors, heavy series hydraulic motors and other models to choose from. We have strong strength, advanced equipment, gathered a group of senior technical personnel, and have a professional and professional R&D team to continuously design and develop products. Compared with other famous brands, we have lower price and safer transportation guarantee, we are glad to be your hydraulic product partner, try it once, you will not regret it.
