Product Details:
Payment & Shipping Terms:
|
| Type: | Hydraulic Low Speed High Torque Motor | Material: | Cast Iron |
|---|---|---|---|
| Model No.: | 6k Motor | Size: | 400ml/r |
| Max.torque(N.m): | Cont.1160N.m/int.1625N.m | Max.speed(rpm): | Cont.382rpm/int.570rpm |
| Highlight: | 6000 Series Hydraulic Wheel Drive Motor,6-390BBA-F Hydraulic Wheel Drive Motor,Tapered shaft Hydraulic Wheel Drive Motor |
||

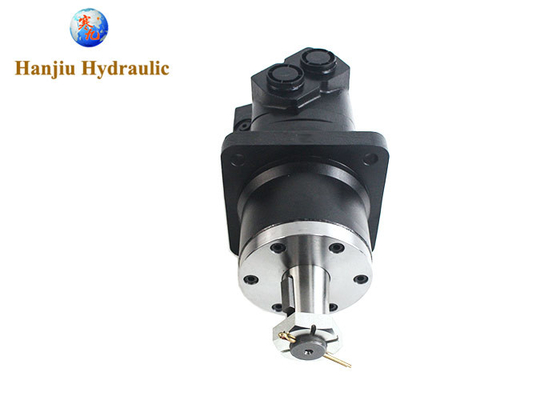

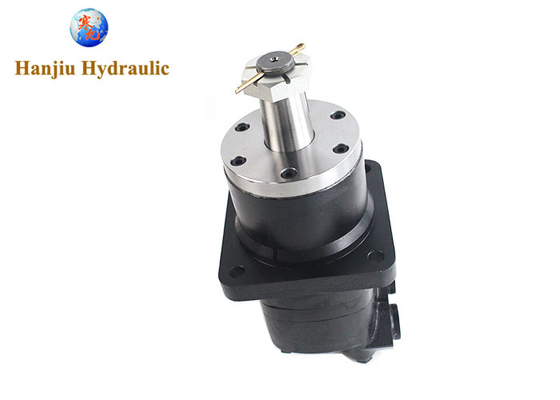

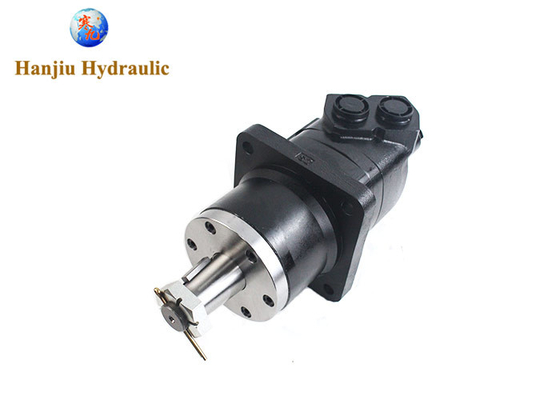

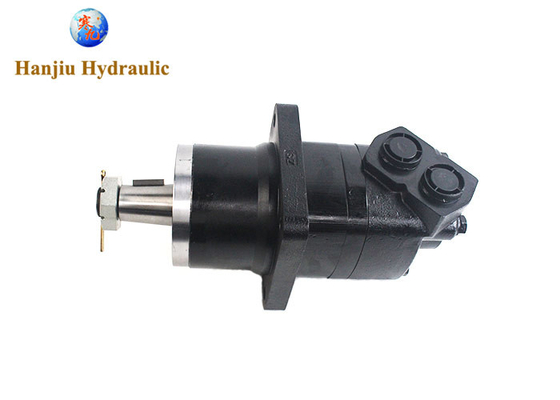

6-390BBA-F Char Lynn 6000 Series Hydraulic Wheel Drive Motor,Tapered shaft for hydraulic trencher motor
hanjiu produce the bmk6 motors,matching charlynn 6000 motor 113-1073-006,6-390BBA-F
Model number: BMK6
Replace Char-lynn motor 6000 Series
Displacement: 400cc
Flange: wheel flange
Pilot: 127x12.5
Mounting distance: 161.9
Shaft: tapered shaft
Port:3/4’’ 8X3/8-16UNC
Drain port: 7/16-20 UNF
Paint: Black
Main Specification
| Type |
BMK6 200 |
BMK6 250 |
BMK6 315 |
BMK6 400 |
BMK6 500 |
BMK6 630 |
BMK6 800 |
BMK6 1000 |
|
| Geometric displacement (cm3 /rev.) |
195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | |
| Weight (kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 | |
| Part Number | Displacement cm³/rev (in³/rev) | |
| 6-200BBA-F |
195 (11.9) |
|
|
6-250BBA-F |
245 (15.0) |
|
|
6-310BBA-F |
310 (19.0) |
|
|
6-390BBA-F |
390 (23.9) |
|
|
6-490BBA-F |
490 (30.0) |
|
|
6-630BBA-F |
113-1093-006 |
625 (38.0) |
|
6-980BBA-F |
985 (60.0) |
|
High Torque at Low Speeds Hydraulic motors excel at delivering high torque (turning force) at low speeds. This is crucial for many applications where powerful starting or maneuvering at slow speeds is necessary.
Independent Control Each wheel can be equipped with its own hydraulic motor and control system. This allows for independent control of each wheel's speed and direction, enabling exceptional maneuverability in tight spaces or on uneven terrain.
Compact Design Hydraulic motors offer a high power-to-size ratio, allowing for efficient use of space within a machine's design.
Applications of Wheels and Hydraulic Motors
Skid Steer Loaders The workhorses of construction sites, skid steers rely on independent hydraulic motors driving each track (or wheel) to achieve their signature skid-steering maneuverability.
Forklifts Some forklift models, particularly rough-terrain forklifts, utilize hydraulic motors for powerful and precise movement on uneven surfaces.
Excavators While excavators primarily use tracks, some mini-excavator models might utilize wheels driven by hydraulic motors for increased mobility on pavement or softer ground.
Specialty Vehicles Many special-purpose vehicles, like airport baggage tugs or industrial cleaning machines, benefit from the maneuverability and power provided by wheels and hydraulic motors.
Additional Considerations
The specific type and size of the hydraulic motors used depend on the vehicle's weight, power requirements, and desired performance.
Modern hydraulic motors for wheel drives might incorporate features like variable displacement, allowing for adjusting the motor's output based on driving conditions or terrain.
By understanding how wheels and hydraulic motors work together, you gain appreciation for a versatile and powerful drive system used in various machines that require strength, maneuverability, and precise control over their movement.
