Product Details:
Payment & Shipping Terms:
|
| Type: | Hydraulic Low Speed High Torque Motor | Manufacturer: | HANJIU |
|---|---|---|---|
| Model No.: | 6k Motor | Size: | 400ml/r, 500ml/r, 630ml/r, 1000ml/r |
| Max.torque(N.m): | Cont.1160N.m/int.1625N.m | Max.speed(rpm): | Cont.382rpm/int.570rpm |
| Highlight: | 112-1062 eaton 6000 series motor,harvester eaton 6000 series motor |
||

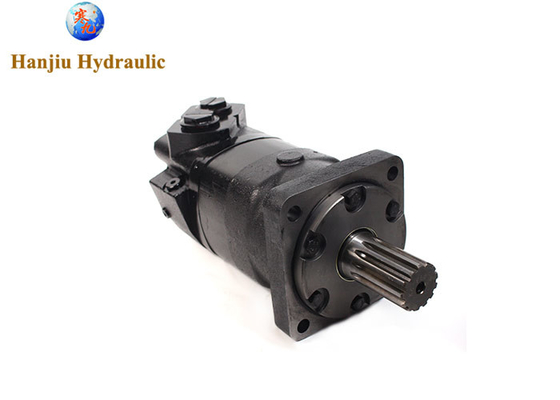

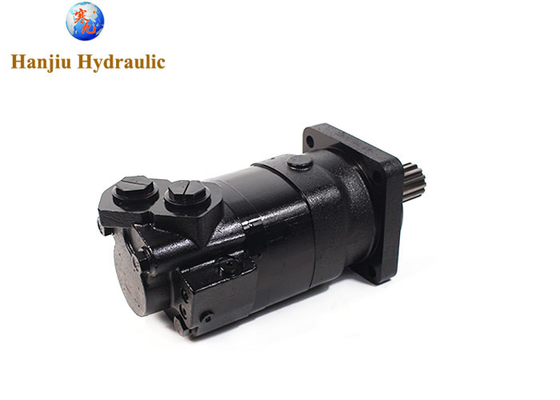

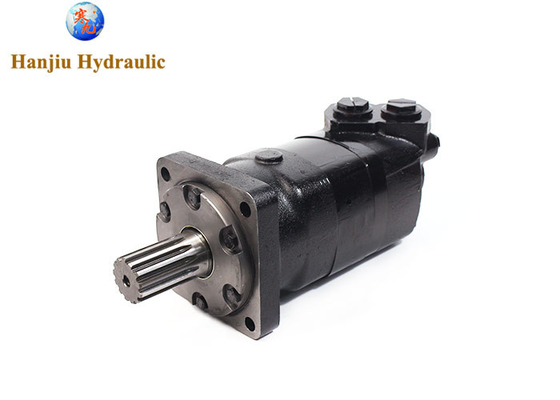

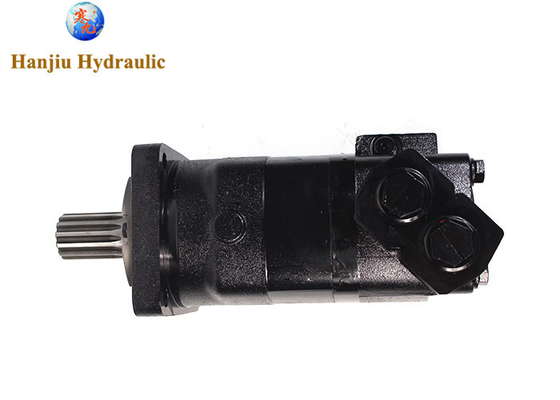

EATON 6000 Series Motor 112-1062 JOHN DEERE CH570 Sugar Cane Harvester Parts
Hanjiu technology supply hydraulic low speed high torque motors, BMK6 Series motors,
equals eaton charlynn 6000 series geroler motors, widely used on sugar cane harvesters,
like John deere CH570, same quality, same performance
Model number: BMK6
Replace Char-lynn motor 6000 Series
Displacement: 500cc
Flange: 4x13.5 Square flange
Pilot: 127x12.5
Mounting distance: 161.9
Shaft: 38.1mm spline shaft, 17-DP12/24
Port:3/4’’ 8X3/8-16UNC
Drain port: 7/16-20 UNF
Paint: Black
Main Specification
| Type |
BMK6 200 |
BMK6 250 |
BMK6 315 |
BMK6 400 |
BMK6 500 |
BMK6 630 |
BMK6 800 |
BMK6 1000 |
|
| Geometric displacement (cm3 /rev.) |
195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | |
| Weight (kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 | |
| Part Number | Displacement cm³/rev (in³/rev) |
| 112-1058-006 | 195 (11.9) |
| 112-1059-006 | 245 (15.0) |
| 112-1060-006 | 310 (19.0) |
| 112-1061-006 | 390 (23.9) |
| 112-1062-006 | 490 (30.0) |
| 112-1109-006 | 625 (38.0) |
| 112-1063-006 | 985 (60.0) |
Relying on research and innovation, Hanjiu Technology Company has created a variety of products that can completely replace charlynn hydraulic motors no matter what specifications or styles, HANJIU hydraulic motor can be replaced. Of course, everyone may have questions: the model is keeping up, but can the product quality of Hanjiu Technology Company be comparable to this decades-old brand? The answer is yes. In order to dispel everyone's doubts, I would like to ask you to introduce Hanjiu Technology Company. Hanjiu Technology Co., Ltd. is the first production and export of hydraulic rail motors, steering units in North China factory, Hanjiu company to supply different types of products in the operation has been adhering to the "quality first, service first, continuous improvement, innovation to meet customers" principle of management, and their products to "zero defects, zero complaints" as the quality goal. In order to reflect their sincerity and professionalism, Hanjiu Company will provide the best quality products at reasonable prices.In addition, you require the product and quality we can fully guarantee, very cost-effective, warranty 18 months, delivery time of 25-35 working days, monthly capacity of 55000pcs, they will also carry out one-on-one testing of each product to ensure quality, from pre-sales to after-sales are attentive to serve you.
Relying on the rapid innovation and improvement of hydraulic company Hanjiu Technology has now become one of the most famous hydraulic motor manufacturers in China, and has occupied a good position in China and even overseas markets, most of the motors sold abroad are from Hanjiu. Of course, while improving technology, they also adhere to the original intention of "minimizing profits and forming relative advantages in price and quality", and are committed to developing the most cost-effective hydraulic and other related products on the market, thereby enhancing the market competitiveness of electric motors. For more than ten years, Hanjiu Technology Hydraulic Company in good faith first, quality first for the purpose, from the entry of employees, raw materials into the factory, from parts processing, assembly programs to products, there are relatively perfect product quality system, and passed the CE certification, is committed to establishing an internationally renowned brand
