Product Details:
Payment & Shipping Terms:
|
| Displacement: | 160cc | Max.speed(rpm): | Cont.560rpm/int.670pm |
|---|---|---|---|
| Max.torque(N.m): | Cont.450N.m/int.680N.m | Max.pressure Drop: | Cont.20Mpa/int.31Mpa |
| Oil Temperature: | Normal-35℃-80℃ | Viscosity: | 42-74mm2/s |
| Highlight: | char lynn 4000 series,Char Lynn Engine 4000 Series,119-1116-006 |
||

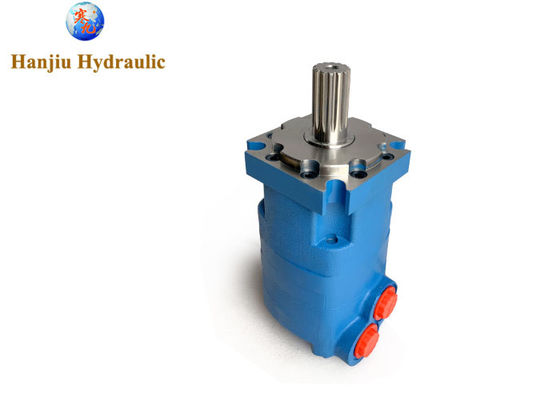

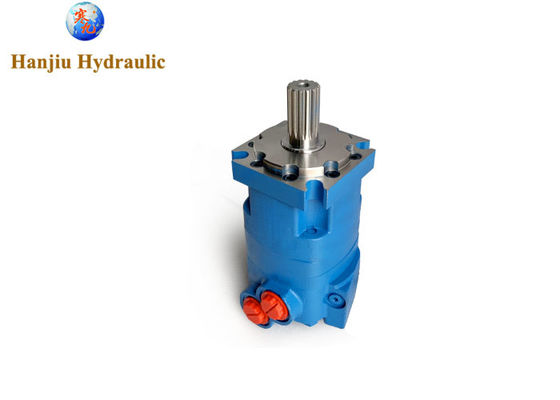

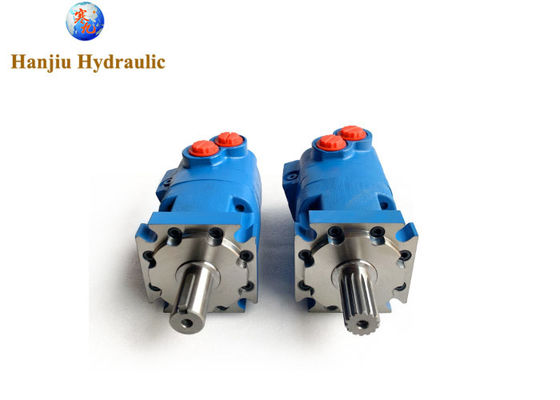

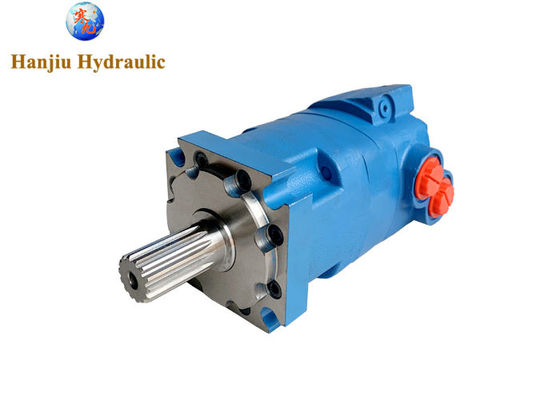

Char-Lynn Engine 4000 Series 119-1116-006,4 Bolt SAE-B Square Mount, 1-1/4″ 14ft Tooth Spline Shaft With High Seal Kits
Product details
Displacement - 9.8 cu in
Mounting - SAE-B standard mounting
Shaft - 1 1/4" splined shaft
Ports - 1 1/16" -12 UN-2B SAE O-RING PORTS
Max Speed - 560 rpm (cont) / 670 rpm (interm)
Flow - 95 gpm (cont) / 115 gpm (interm)
Torque - 450N.m (cont) / 680N.m (interm)
Pressure - 205bar (cont) / 310bar (interm)
HANJIU disc valve motors allow higher flows and higher pressures than spool valve motors,
resulting in higher torques and efficiencies. All are available in standard mount, wheel mount,
or bearingless configurations with many shaft and port options and speed sensors to meet a
broad range of application requirements. Hanjiu disc valve motors deliver unrivalled quality
and are supported by manufacturing systems that ensure on time delivery.
Main specification
| TYPE |
BMK4 |
BMK4 200 |
BMK4 250 |
BMK4 |
BMK4 |
BMK4 |
|
| Displacement(ml/r) | 159.2 | 195.6 | 246.1 | 311.6 | 391.3 | 490.8 | |
| Max.speed(rpm) |
cont. |
560 | 440 | 300 | 234 | 188 | 155 |
| int. | 670 | 535 | 450 | 351 | 282 | 232 | |
Max.Pressure.Drop(Mpa) |
cont. | 20 |
20 |
20 | 20 | 20 | 20 |
| int. | 30 | 30 | 30 | 30 | 30 | 27.5 | |
| peak. | 30 | 30 | 30 | 30 | 30 | 30 | |
| Max.Torque(N.m) | cont. | 450 | 565 | 710 | 920 | 1160 | 1445 |
| int. | 680 | 855 | 1080 | 1325 | 1625 | 1880 | |
| Max.Flow(cont.)(L/min) | cont. | 95 | 95 | 150 | 150 | 150 | 150 |
| int. | 115 | 115 | 205 | 225 | 225 | 225 | |
| Weight(kg) | 26.3 | 26.5 | 26.8 | 27.3 | 28 | 28.8 | |
Other types of BMK4 crossing number
| Part Number | Displacement cm³/rev (in³/rev) |
| 109-1115-006 | 130 (7.9) |
| 109-1116-006 | 160 (9.9) |
| 109-1117-006 | 205 (12.5) |
| 109-1118-006 | 245 (15) |
| 109-1119-006 | 310 (19) |
| 109-1120-006 | 395 (24) |
APPLICATIONS:
HANJIU Hydraulic has been in the hydraulic industry for more than 20 years, providing a wide range of hydraulic power services, products and system solutions, as well as our own series of hydraulic motors and hydraulic valves. Our main advantage is that we provide services and solutions for all hydraulic product types and systems. We recognize the importance of machine uptime and are committed to providing lasting quality service.
We have a good reputation in hydraulic design and manufacturing, and are equipped with some of the most popular skills and machinery. Our dedicated engineering and design have produced various hydraulic products, and we have the most complete and best quality hydraulic motors in China. We have been recognized by customers with competitive prices and services, and are always willing to make more efforts to meet the urgent needs of customers.
