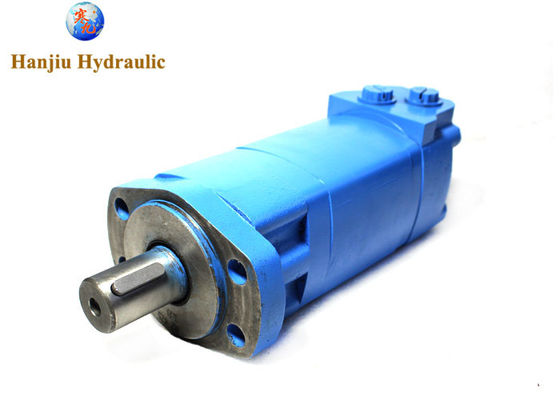

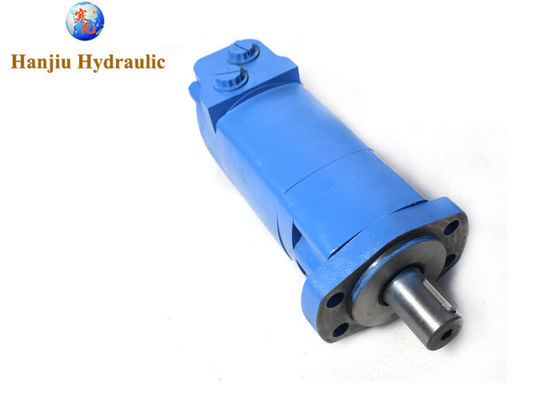

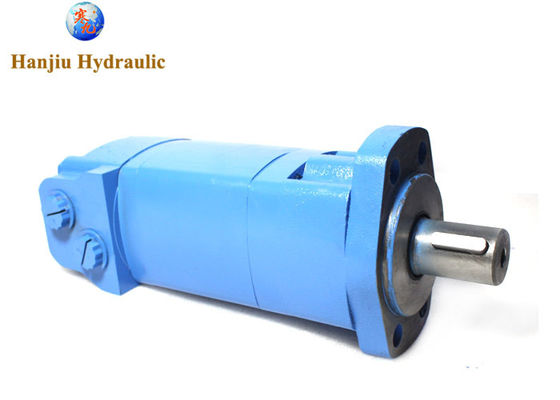

Eaton Gerotor Hydraulic Motor Industrial Disc Valve Motor 29.8 Cu In/Rev, 4 Bolt Magneto Mounting Flange,31.75mm Shaft

Large Image : Eaton Gerotor Hydraulic Motor Industrial Disc Valve Motor 29.8 Cu In/Rev, 4 Bolt Magneto Mounting Flange,31.75mm Shaft

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMK2 MOTOR

Payment & Shipping Terms:

Minimum Order Quantity:	10pieces
Price:	Negotiable
Packaging Details:	2PCS IN ONE CARTON,800PCS IN 20'FCL
Delivery Time:	25-30DAYS
Payment Terms:	T/T, D/P, D/A, L/C
Supply Ability:	300000PCS PER YEAR

Contact Now

Detailed Product Description

Features:	Match /M+S/Eaton/Char_lynn	Application:	Harvesting Equipment
Displacement:	500cc	Max.speed(rpm):	Cont.153rpm/int.230rpm
Max.torque(N.m):	Cont.845N.m/int.930N.m	Max.pressure Drop:	Cont.12Mpa/int.14Mpa
Oil Temperature:	Normal-35℃-80℃	Viscosity:	42-74mm2/s
Highlight:	eaton gerotor hydraulic motor , 31.75mm Shaft gerotor hydraulic motor , 500cc gerotor hydraulic motor

2000 Series Geroler Motor, 29.8 cu in/rev,

4 Bolt Magneto Mounting Flange,31.75mm Shaft

7/8-14 St.Thd. O-Ring

Brand	HANJIU
Displacement	29.8 Cir
Product Type	Simple product
Features	Blue Paint
Mount	4 Bolt Magneto
Ports	7/8-14 St.Thd. O-Ring
Supplier Part Number	104-3917-006
Product Weight	27.00 lbs

Main specification

TYPE		BMK2 125CC	BMK2 160CC	BMK2 200CC	BMK2 250CC	BMK2 315CC	BMK2 400CC	BMK2 475CC
Displacement(ml/r)		129.8	156.8	193.4	242.5	304.3	390.8	485
Max.Pressure.Drop(Mpa)	cont.	21	20.5	20.5	20.5	21	15.5	12
	int.	31	26	26	26	24	17	14
	peak.	31	31	31	31	31	20.5	17
Max.Torque(N.m)	cont.	385	455	540	660	765	775	845
Max.Torque(N.m)	int.	560	570	665	820	885	925	930
Speed.Range(r/min)	cont.	576	477	385	308	246	191	153
Speed.Range(r/min)	int.	720	713	577	462	365	287	230
Max.Flow(cont.)(L/min)	cont.	75	75	75	75	75	75	75
Max.Flow(cont.)(L/min)	int.	95	115	115	115	115	115	115
Weight(kg)		10	10.2	10.5	11	11.5	12	12.4

Eaton Gerotor Hydraulic Motor Industrial Disc Valve Motor 29.8 Cu In/Rev, 4 Bolt Magneto Mounting Flange,31.75mm Shaft 0

Eaton Gerotor Hydraulic Motor Industrial Disc Valve Motor 29.8 Cu In/Rev, 4 Bolt Magneto Mounting Flange,31.75mm Shaft 1

Eaton Gerotor Hydraulic Motor Industrial Disc Valve Motor 29.8 Cu In/Rev, 4 Bolt Magneto Mounting Flange,31.75mm Shaft 2

Benefits

• Lowest pressure drop motor in the industry

• Widest range of options

• The most experienced manufacturer of LSHT motors

Applications

• Swing motor

• Brush Cutters & mowers

• Harvesting equipment

• Directional boring

• Turf equipment

• Skid Steer loaders

• Fairway mowers

• Harvesters

• Mowing

• Snow removal

• Sprayers

• Trencher

• Wood products

• Grinders and mixers

• Forestry equipment

• Irrigation reels

When the job is tough—perhaps the harvest is long, or the brush to be cleared is thicker than usual

—nobody has time for a faulty, unreliable motor.

HANJIU answers the call with medium pressure disc valve motors that provide higher flows

and pressures than spool valve motors. Whether the system requires standard mount,

wheel mount ,Hanjiu medium pressure motors deliver unrivaled performance for a variety of applications.

Eaton Gerotor Hydraulic Motor Industrial Disc Valve Motor 29.8 Cu In/Rev, 4 Bolt Magneto Mounting Flange,31.75mm Shaft 3

We are offering an exclusive range of Gerotor Motor to valued clients. Our engineers develop this range using optimum quality material and modern equipment. Furthermore, our products are highly appreciated for long-lasting nature. Quality tested on various constraints, these products promise international standards. Additionally, we are capable in making these products available in bulk quantity and in time.
