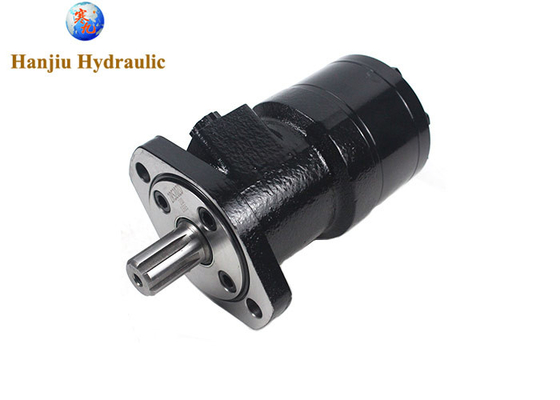

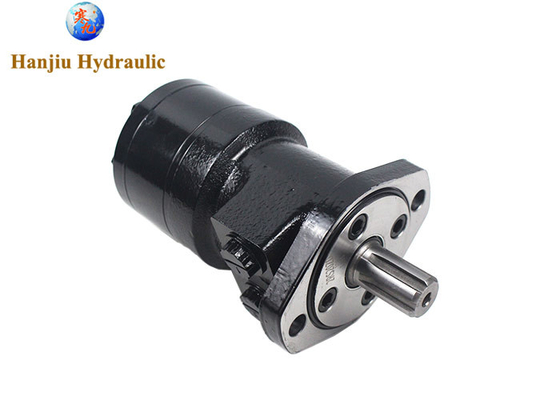

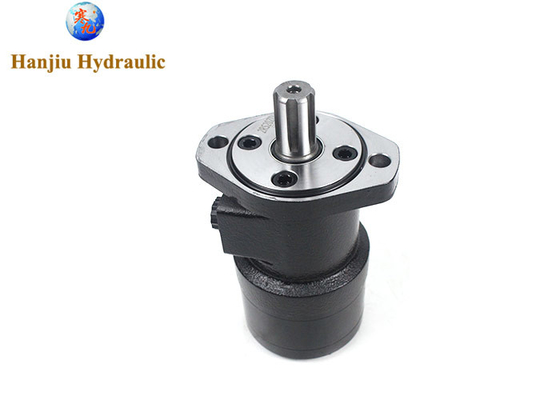

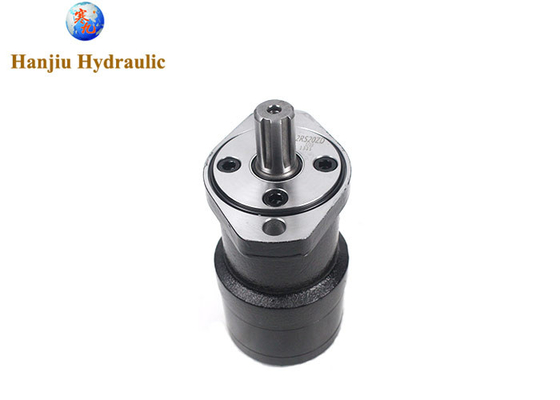

BMRS200 Hydraulic Motor Orbit Motor 2 Bolts Flange SAE 6B spline Shaft flange rotated 90 degree

BMRS200 Hydraulic Motor Orbit Motor 2 Bolts Flange SAE 6B spline Shaft flange rotated 90 degree

BMRS200 Hydraulic Motor Orbit Motor 2 Bolts Flange SAE 6B spline Shaft flange rotated 90 degree

BMRS200 Hydraulic Motor Orbit Motor 2 Bolts Flange SAE 6B spline Shaft flange rotated 90 degree

BMRS200 Hydraulic Motor Orbit Motor 2 Bolts Flange SAE 6B spline Shaft flange rotated 90 degree

BMRS200 Hydraulic Motor Orbit Motor 2 Bolts Flange SAE 6B spline Shaft flange rotated 90 degree

Large Image : BMRS200 Hydraulic Motor Orbit Motor 2 Bolts Flange SAE 6B spline Shaft flange rotated 90 degree

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMRS-200-H2R-S-S

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact seller for latest offer
Packaging Details:	Carton, Box, Pallets
Delivery Time:	35 work days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	200000 pieces per year

Contact Now

Detailed Product Description

Product:	Hydraulic Motor,orbit Motor	Model No.:	BMRS200
Manufacturer:	Hanjiu	Origion:	China
Material:	Cast Iron	Warranty:	1 Year
Highlight:	BMRS200 Hydraulic Motor , 2 Bolts Flange Hydraulic Motor , SAE 6B spline Shaft Hydraulic Motor

BMRS200 Hydraulic Motor Orbit Motor 2 Bolts Flange SAE 6B spline Shaft flange rotated 90 degree

Quick review:

Model number: BMRS-200-H2R-S-S
Displacement: 200 ml/r
Shaft:SAE 6B Spline shaft
Rotation, CW

specialty: the shaft is 90 degree rotated with flange
application:slew drive

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 40	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 400
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Technical data for BMR with 31.75 and 32 shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1250	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1520	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	380	450	540	550	580
	int.	83	126	220	280	340	430	500	610	690	690
	peak	105	165	270	320	370	460	560	710	840	830
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	11	10	9	7.5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	12	10	9
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	17.5	17.5	17.5	13.5	11.5
	int.	16.5	17.5	20	20	20	20	20	20	17.5	15
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	21	17.5
Max. flow (L/min)	cont.	45	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	55	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

BMRS200 Hydraulic Motor Orbit Motor 2 Bolts Flange SAE 6B spline Shaft flange rotated 90 degree 0
