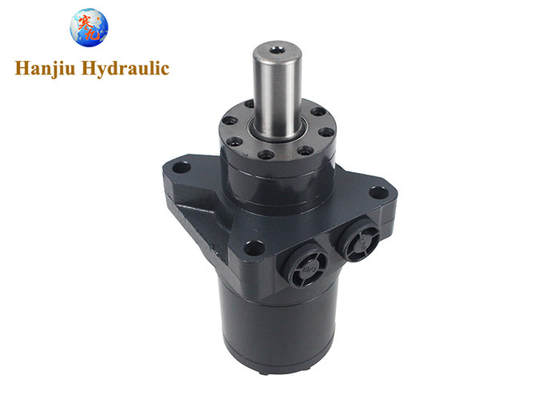

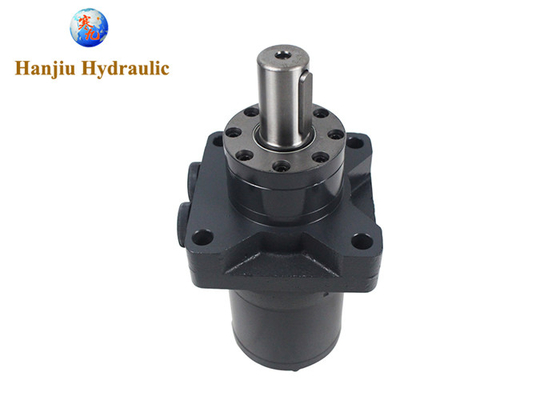

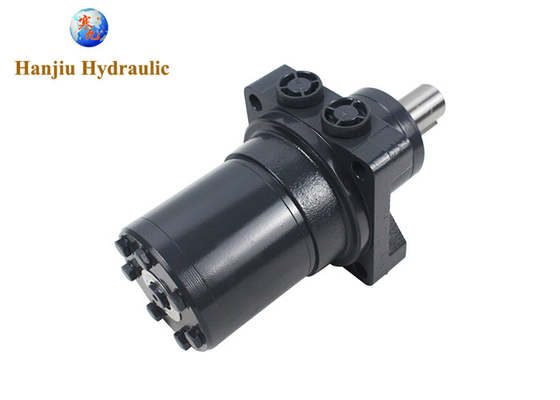

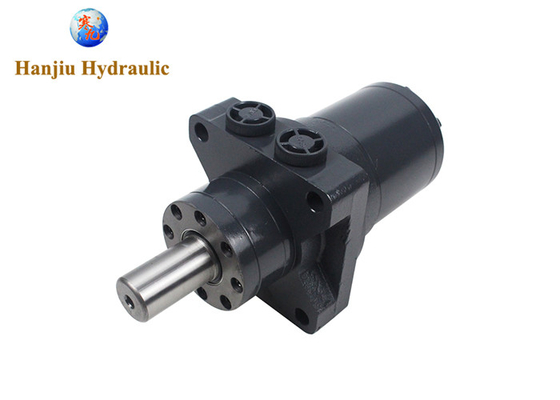

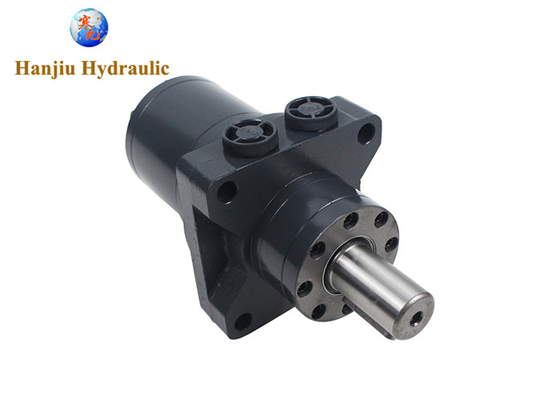

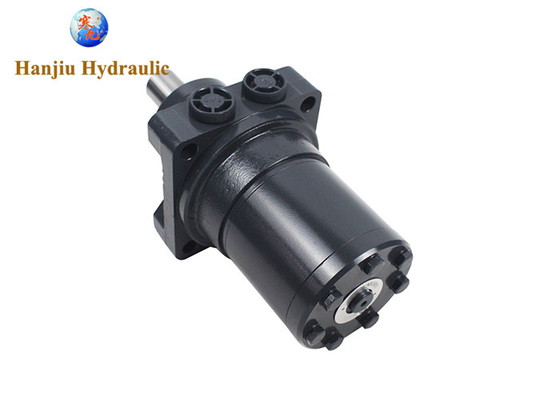

BMR / BMRS / BMRWN BMRWN-400-B-G Geroler Orbital Motors 400 Ml/r Needel Bearing

Speed, torque, flow, pressure, weight informations:

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type BMR BMRS 40 BMR BMRS 50 BMR BMRS 80 BMR BMRS 100 BMR BMRS 125 BMR BMRS 160 BMR BMRS 200 BMR BMRS 250 BMR BMRS 315 BMR BMRS 400 Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4 Max. speed (rpm) cont. 1085 960 750 600 475 378 310 240 190 155 int. 1220 1150 940 750 600 475 385 300 240 190 Max. torque (N·m) cont. 72 100 195 240 300 360 360 390 390 365 int. 83 126 220 280 340 430 440 490 535 495 peak 105 165 270 320 370 460 560 640 650 680 Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 10 7 6 5 int. 9.8 11.2 15 15 14.5 14 13 9.5 9 8 Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 16.5 13 11 9 7 int. 16.5 17.5 20 20 20 20 17.5 15 13 10 peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 20 17.5 15 Max. flow (L/min) cont. 40 50 60 60 60 60 60 60 60 60 int. 45 60 75 75 75 75 75 75 75 75 Weight (kg) 6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5

Technical data for BMR with 31.75 and 32 shaft:

Type BMR BMRS 36 BMR BMRS 50 BMR BMRS 80 BMR BMRS 100 BMR BMRS 125 BMR BMRS 160 BMR BMRS 200 BMR BMRS 250 BMR BMRS 315 BMR BMRS 375 Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4 Max. speed (rpm) cont. 1250 960 750 600 475 378 310 240 190 155 int. 1520 1150 940 750 600 475 385 300 240 190 Max. torque (N·m) cont. 72 100 195 240 300 380 450 540 550 580 int. 83 126 220 280 340 430 500 610 690 690 peak 105 165 270 320 370 460 560 710 840 830 Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 11 10 9 7.5 int. 9.8 11.2 15 15 14.5 14 13 12 10 9 Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 17.5 17.5 17.5 13.5 11.5 int. 16.5 17.5 20 20 20 20 20 20 17.5 15 peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 21 17.5 Max. flow (L/min) cont. 45 50 60 60 60 60 60 60 60 60 int. 55 60 75 75 75 75 75 75 75 75 Weight (kg)   6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5

* Continuous pressure:Max.value of operating motor continuously. * Intermittent pressure:Max.value of operating motor in 6 seconds per minute . * Peak pressure:Max.value of operating motor in 0.6 second per minute.











More BMR series hydraulic motor we have:

BMR series motor adapt the advanced Geroler gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure, provide reliable and smooth operation, high efficiency and long life.
Characteristic features:
*Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.
*Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.
*Special design in the driver-linker and prolong operating life
*Special design for distribution system can meet the requirement of low noise of unit.
*Compact volume and easy installation

More series and types of hydraulic orbital motors available:
