Product Details:
Payment & Shipping Terms:
|
| Item: | Disc Geroler Motors | Material: | Cast Iron |
|---|---|---|---|
| Direction Of Rotation: | Reversible | Mounting: | 4 Bolts Standard Type |
| Warranty: | 1year | Charlynn Code: | 109-1119-006 |
| Highlight: | EATON Hydraulic Geroler Disc Valve Motor,Hydraulic Geroler Disc Valve Motor 850 Nm,303 Rpm Hydraulic Geroler Disc Valve Motor |
||

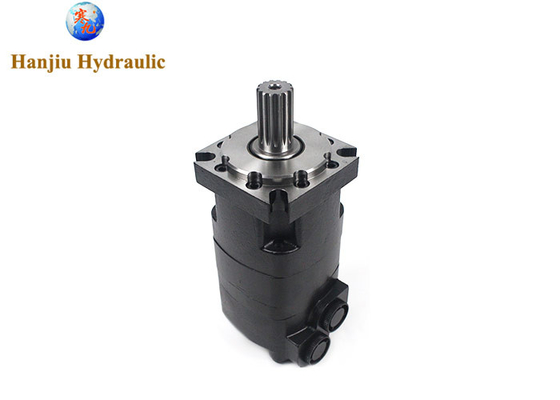

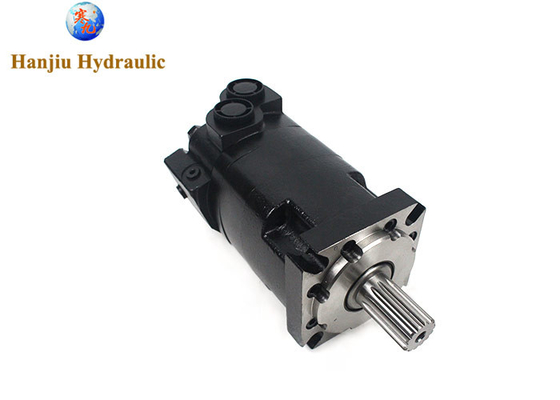

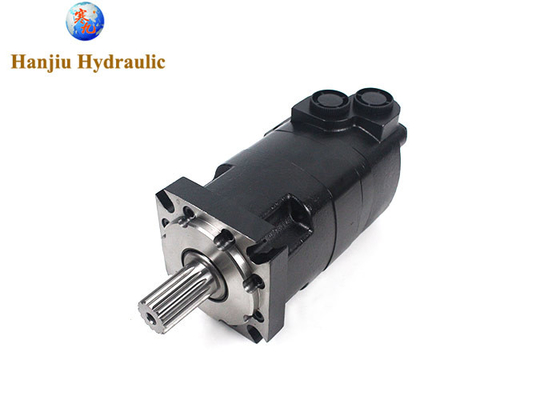

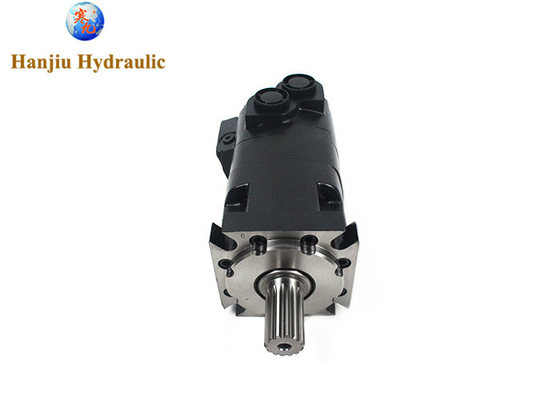

EATON / CHAR-LYNN 109-1119-006 Hydraulic Geroler Disc Valve Motor, 850 Nm, 303 Rpm
Product details:
DISPLACEMENT:311.8 CM3/R [19.03 IN3/R]
MOUNTING TYPE:STANDARD, 4 BOLT; 101.60 [4.000] PILOT DIA 14.7 [.58] SLOTS ON 127.00 [5.000] DIA.BOLT CIRCLE. (SAE B)
OUTPUT SHAFT;31.75 [1.250] DIA. FLAT ROOT SIDE FIT, 14 TOOTH, 12/24 DP 30 DEG. INVOLUTE SPLINE, 38.1 [1.50] MINIMUM FULL SPLINE LENGTH WITH .375-16UNC-2B THREAD
PORTS:1.0625-12 UN-2B SAE O-RING PORTS - STAGGERED PORTS
CASE FLOW OPTIONS:.4375-20 UNF-2B SAE O-RING PORT WITH CHECK VALVE
Main Specifications:
| TYPE | BMK4 | BMK4 | BMK4 | BMK4 | BMK4 | BMK4 | |
| 160 | 200 | 250 | 315 | 400 | 500 | ||
| Displacement(ml/r) | 159.2 | 195.6 | 246.1 | 311.6 | 391.3 | 490.8 | |
| Max.speed(rpm) | cont. | 560 | 440 | 300 | 234 | 188 | 155 |
| int. | 670 | 535 | 450 | 351 | 282 | 232 | |
| Max.Pressure.Drop(Mpa) | cont. | 20 | 20 | 20 | 20 | 20 | 20 |
| int. | 30 | 30 | 30 | 30 | 30 | 27.5 | |
| peak. | 30 | 30 | 30 | 30 | 30 | 30 | |
| Max.Torque(N.m) | cont. | 450 | 565 | 710 | 920 | 1160 | 1445 |
| int. | 680 | 855 | 1080 | 1325 | 1625 | 1880 | |
| Max.Flow(cont.)(L/min) | cont. | 95 | 95 | 150 | 150 | 150 | 150 |
| int. | 115 | 115 | 205 | 225 | 225 | 225 | |
| Weight(kg) | 26.3 | 26.5 | 26.8 | 27.3 | 28 | 28.8 | |
Geroler motor working principle
Advantages of Geroler Motors
High torque output Ideal for heavy loads.
Smooth operation Consistent output without pulsations.
Compact design Efficient use of space.
Reversible Can operate in both clockwise and counterclockwise directions.
Wide speed range Versatile for various applications.
Applications of Geroler Motors
Construction equipment Excavators, cranes, drilling rigs
Agricultural machinery Tractors, harvesters
Industrial machinery Presses, conveyors, mixers
Marine applications Winches, steering systems
Mobile equipment Forklifts, aerial work platforms
Would you like to know more about specific applications or how to select the right Geroler motor for your project
