Product Details:
Payment & Shipping Terms:
|
| Item: | Disc Geroler Motors | Model: | 4000 Series |
|---|---|---|---|
| Material: | Cast Iron | Fastening: | 4 Bolts Standard Type |
| Maximum Pressure: | 3500 Bar | Charlynn Code: | 109-1106-006 |
| Highlight: | 1091106 Hydraulic Motor,Eaton Char-Lynn Hydraulic Motor,109-1106-006 Hydraulic Motor |
||

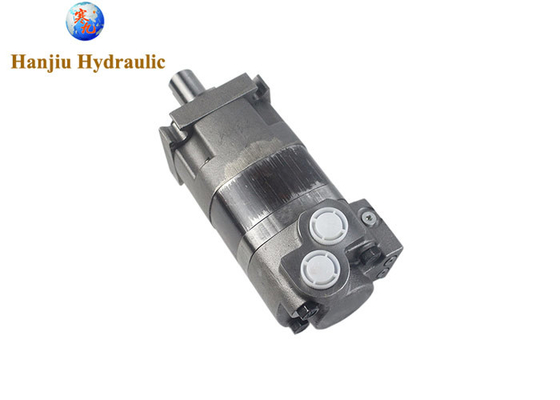

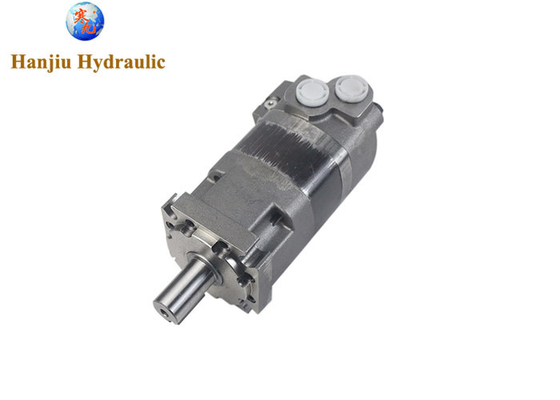

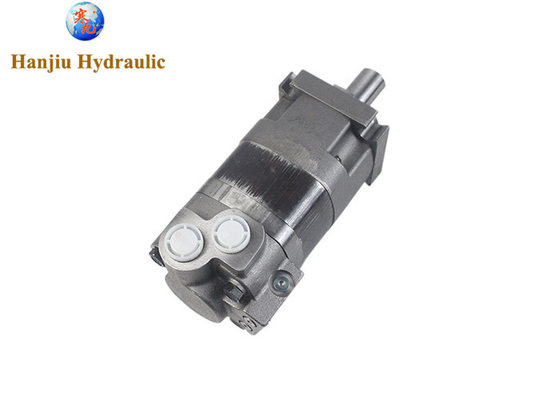

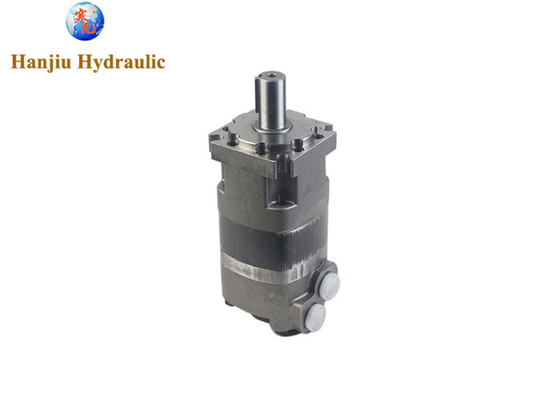

New Hydraulic Motor For Eaton Char-Lynn 4000 Series 1091106,109-1106-006
Specification
Condition: Brand new
Color: Black
Material: Iron
Displacement: 395cm3/r/24.0in3/r
Mounting type: 4 bolt std
Shaft: 1.25 straight woodruff key
Port Size: 1 1/16-12inch o-ring Staggered
Fitment type: Direct replacement
Product details:
| MOUNTING TYPE | 4 Bolt SAE B |
| PORT TYPE | Split Flange |
| DISPLACEMENT (IN3/REV) | 24.00 cu in/rev |
| SHAFT SIZE & TYPE | 1-1/4 in. Straight Keyed Shaft |
| RPM [MAX] | 582 rpm |
| MOUNT TYPE | 4 Bolt |
| OUTPUT TORQUE AT RATED PSI (INCH/POUNDS) | 4290 in lb |
| SHAFT TYPE | Key shaft |
| MOTOR TYPE | Disc Valve |
| MOUNTING HOLES | 0.58 in |
| FLANGE ORIENTATION | Standard |
| DRAIN | SAE-4 w/Check Valve |
| DUTY | Standard-Duty |
| MOTOR ELEMENT | Geroler |
| SERIES | 4000 Series |
| ROTATION | Standard Rotation |
| FLOW RATE | 25 gal/min |
| PORT SIZE | 1-1/16-12 St.Thd. O-Ring |
| PILOT DIAMETER | 4 in |
| PORT LOCATION | Side Port |
| BOLT CIRCLE DIA. | 5 in |
| MOUNTING HOLE SIZE | 0.58 in |
| SEAL MATERIAL | Buna-N |
| INLET PRESSURE [MAX] | 4500 psi |
| CORROSION RESISTANT | No |
| PAINT/PACKAGING | Individual Box |
| MAXIMUM SPEED @ CONTINUOUS FLOW | 582 rpm @ 25 gal/min |
| SPECIAL FEATURES | None |
| PAINT CODE | black |
| WEIGHT | 57.0 LB |
109-1001-006
109-1002-006
109-1003-006
109-1006-006
109-1008-006
109-1011-006
109-1012-006
109-1013-006
109-1052-006
109-1053-006
109-1054-006
109-1055-006
109-1056-006
109-1057-006
109-1059-006
109-1061-006
109-1062-006
109-1063-006
109-1064-006
109-1065-006
109-1087-006
109-1094-006
109-1100-006
109-1101-006
109-1102-006
109-1103-006
109-1104-006
109-1105-006
109-1106-006
109-1107-006
109-1108-006
109-1109-006
109-1110-006
109-1111-006
109-1112-006
109-1113-006
109-1114-006
109-1115-006
109-1116-006
109-1117-006
109-1118-006
109-1119-006
109-1120-006
109-1154-006
109-1155-006
109-1156-006
109-1157-006
109-1158-006
109-1159-006
109-1160-006
109-1173-006
109-1184-006
109-1185-006
109-1189-006
109-1190-006
109-1191-006
109-1192-006
109-1193-006
109-1194-006
109-1195-006
109-1196-006
109-1203-006
109-1204-006
109-1207-006
109-1208-006
109-1211-006
109-1212-006
109-1215-006
109-1220-006
109-1224-006
109-1225-006
109-1227-006
109-1231-006
109-1233-006
109-1234-006
109-1236-006
109-1238-006
109-1245-006
109-1246-006
109-1247-006
109-1248-006
109-1252-006
109-1254-006
109-1260-006
109-1263-006
109-1264-006
109-1267-006
109-1269-006
109-1278-006
109-1280-006
109-1286-006
109-1287-006
109-1293-006
109-1295-006
109-1296-006
109-1304-006
109-1305-006
109-1309-006
109-1311-006
109-1314-006
109-1316-006
109-1317-006
109-1318-006
109-1337-006
109-1339-006
When selecting a Geroler motor, it's crucial to carefully consider the required torque output for your specific application.
Factors such as load, speed, and operating conditions should be taken into account to ensure optimal performance.
In summary, Geroler motors are exceptional performers when it comes to torque. Their ability to deliver high torque at low speeds makes them a valuable asset in various industries demanding powerful rotational force.
Would you like to explore specific Geroler motor models or discuss torque requirements for a particular application
Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems
