| Type: | Gerotor Hydraulic Motor | Model Number: | BMK6-315-CC-FE-SF5-B |
|---|---|---|---|
| Displacement: | 315 Ml/r | Manufacturer: | Hanjiu |
| Highlight: | BMK6 series Low Speed Motors,BMK6 series High Torque Motors |
||
Welcome to the website of Hanjiu Technology
We focus on the design, development, manufacture and export of high-quality hydraulic products
You can get hydraulic motors suitable for any equipment here
We have various series, various sizes, various speeds and torques
This series is the BMK6 series hydraulic motor

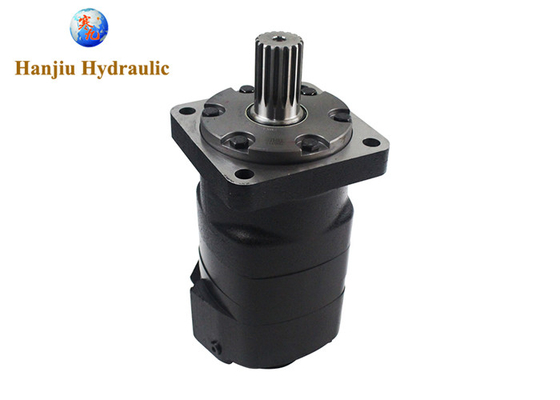

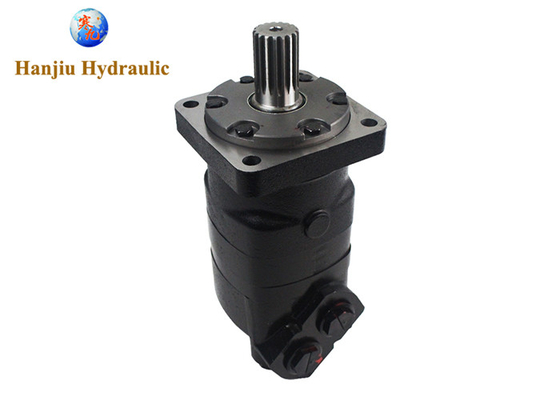

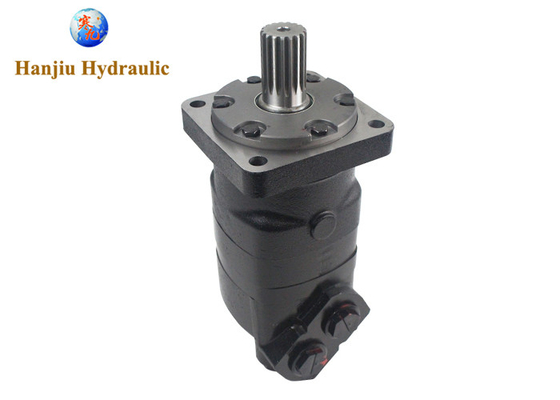

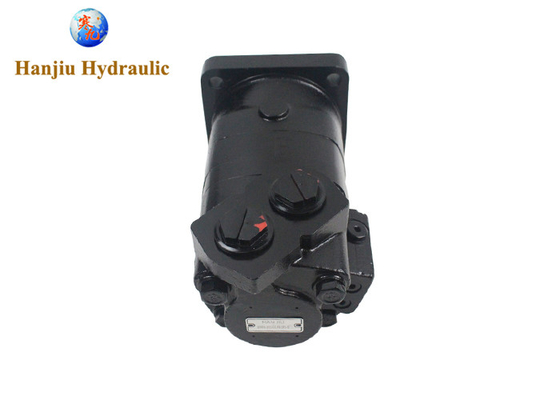

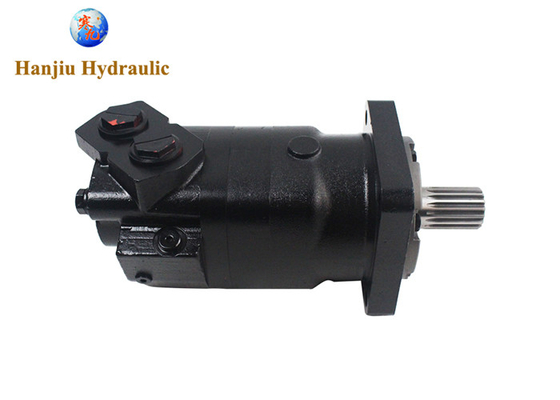

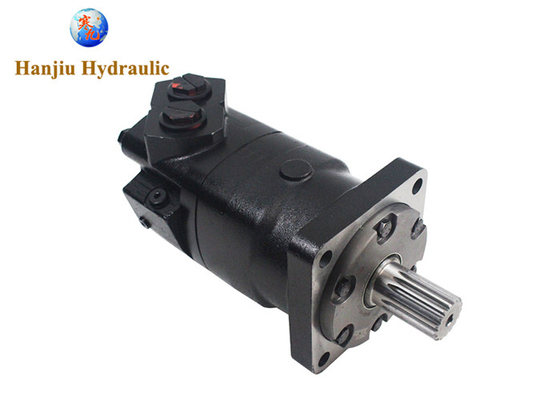

BMK6-315-CC-FE-SF5-B
Displacement: 315ml/r
Flange: 4-14.2 Square-flange 161.9., pilotФ127x12.5
Shaft: Shaftp38.1,splined tooth17-DP12/24
Rotation :Standard
| TYPE | BMK6 200 |
BMK6 250 |
BMK6 315 |
BMK6 400 |
BMK6 500 |
BMK6 630 |
BMK6 800 |
BMK6 1000 |
|
| Displacement(ml/r) | 195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | |
| Max.speed(rpm) | cont. | 765 | 610 | 480 | 382 | 304 | 240 | 186 | 152 |
| int. | 865 | 830 | 690 | 570 | 455 | 360 | 280 | 230 | |
Max.Pressure.Drop(Mpa) |
cont. | 20 | 20 | 20 | 20 | 20 | 17.5 | 14 | 14 |
| int. | 30 | 30 | 30 | 30 | 27.5 | 22.5 | 15.5 | 14 | |
| peak. | 30 | 30 | 30 | 30 | 30 | 24 | 17.5 | 17 | |
| Max.Torque(N.m) | cont. | 565 | 710 | 920 | 1160 | 1445 | 1480 | 1580 | 1675 |
| int. | 840 | 1080 | 1325 | 1625 | 1880 | 1890 | 1880 | 1860 | |
| Max.Flow(cont.)(L/min) | cont. | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| int. | 170 | 205 | 225 | 225 | 225 | 225 | 225 | 225 | |
| Weight(kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 |
|
Overview
The Hanjiu BMK6-315-CC-FE-SF5-B motor is a high-quality, advanced motor suitable for a wide range of applications. This motor belongs to the BMK6 series, which is known for its innovative roller gear set design, disc-type distribution flow, and high-pressure capabilities.
Features:
Usage Information:
This motor is versatile and can be used in a variety of applications that require high-pressure operation. The tapered roller bearings ensure smooth operation even at high pressures, making it reliable in different situations.
Series Information:
The BMK6 series is known for its high-quality construction and versatile operation. This series of motors is designed to meet the requirements of different applications while ensuring durability and efficiency.
Don't miss the opportunity to enhance your operations with the Hanjiu BMK6-315-CC-FE-SF5-B motor. Buy it today and experience the reliability and performance it provides.
BMK6 Series is a durable hydraulic motor with superior side load capacity, high pressure shaft seal and smooth low speed operation. Ideal for medium duty applications such as vehicle propulsion, augers, chain drives, winches and boom rotate. Intermittent pressures go to 4000 psi. Max dynamic side load capability is 3600 lb. at the key. This rugged Low Speed High Torque (LSHT) orbital motor features robust construction with continuous oil flow across splines for longer life, superior side load capacity, and smooth extra low speed operation. A high pressure shaft seal is standard. Its innovative design eliminates the need for a drain. Dependability is based on high quality design and manufacturing.
Applications:
• Trenchers
• Skid Steer Attachments
• Zero Turn Mowers
• Golf Course Maintenance Equipment
• Sweepers
• Wood Chippers
• Conveyers
• Combine Harvesters
• Winches
• Augers
• Portable Irrigation Systems
• Post Hole Augers
• Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape Specialty Harvesters
• Combine Header Drives
• Sprayers
• Scissor Lifts
• Snow Removal
• Salt and Sand Spreaders
• Oil and Gas Blender Trucks
• Mini and Walk-Behind Skid Steers
• Tool Carriers
• Pipe Spinners
