| Product: | Hydraulic Motor | Displacement: | BMK231501AS |
|---|---|---|---|
| Rotation: | CW | Manufacturer: | Hanjiu |
| Highlight: | 2 bolt Geroler Orbital Motors,19.81 GPM Geroler Orbital Motors,1740 PSI Geroler Orbital Motors |
||

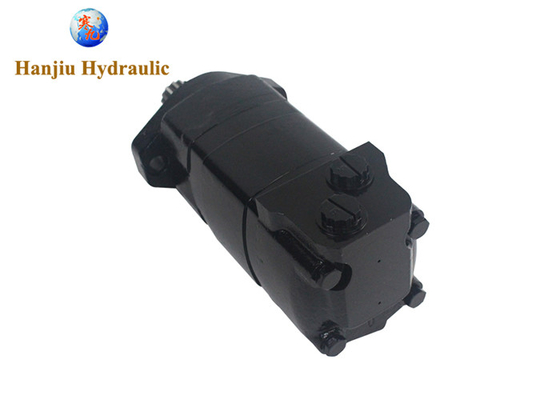

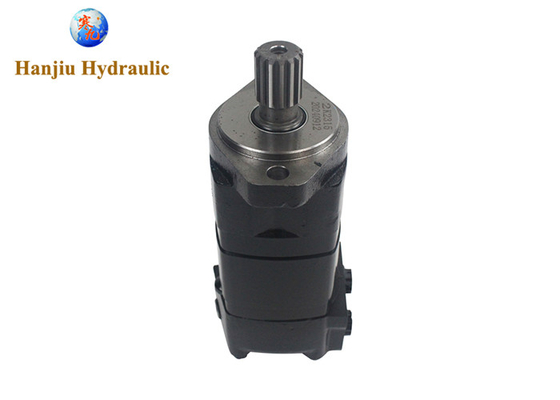

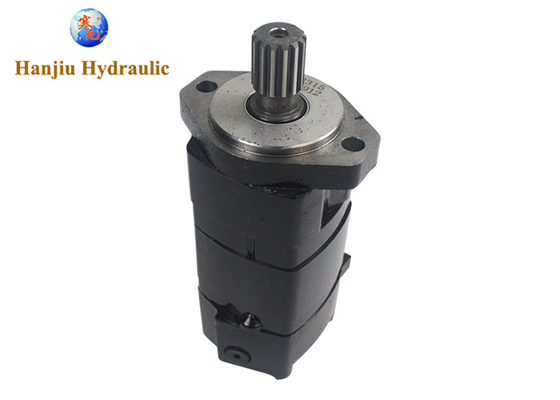

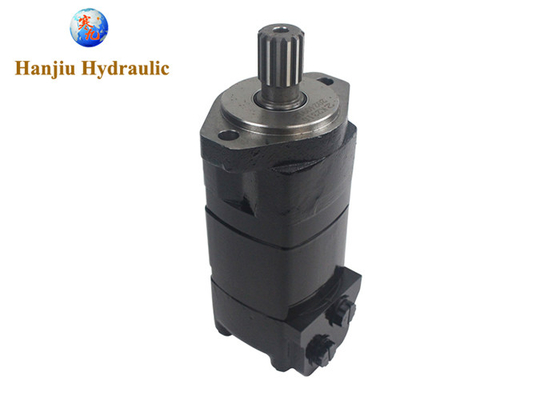

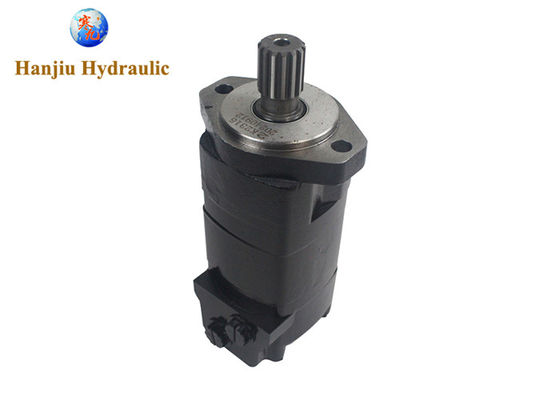

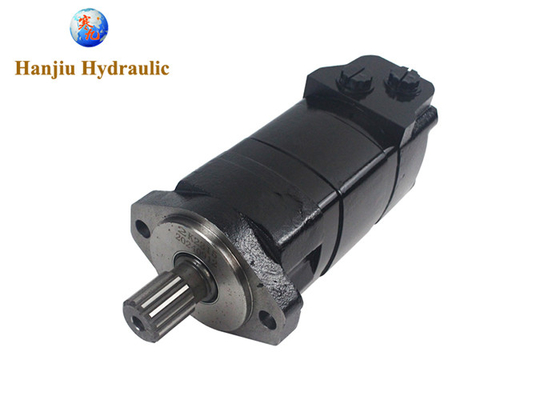

BMK2 series Geroler Orbital Motors 315ml/r 1740 PSI 19.81 GPM 2 bolt Oval flange
Quick review:
BMK2 series hydraulic motors are 100% compatible with Eaton char-lynn 2000 series
| Model No. | BMK231501AS |
| Flange | 2 bolt |
| Shaft | 14T Spline |
| Displacement | 315 ml/r |
| Port | 7/8-14 unf |
More BMK2 - Geroler Orbital Motors, Features
Displacement: 3.97 – 29.60 in³/rev
Cont. Torque: 136.4 – 623.2 lbf.ft
Continuous Speed: 153 – 835 rpm
Speed, torque, flow, pressure, weight informations:
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) |
65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||
Measurement:
About HANJIU Technology:
Precision manufacturing, providing solutions for hydraulic systems. Grow together with customers, always provide innovation in products and services, always maintain our quality standards, and let our professional team meet your needs. Brand new wholeheartedly provide you with quality service. Our goal is to ensure that our customers receive fast, efficient and reliable service. Be a benchmark enterprise in the industry and lead the industry development.
HANJIU manufactures economical hydraulic motors, hydraulic directional valves and Orbitrol steering for all over the world.
We specialize in Eaaton Char-lynn replacement/alternative/compatible motors
We specialize in Saauer Danfooss replacement/alternative/compatible motors
We specialize in Parker replacement/alternative/compatible motors
We specialize in Brevini replacement/alternative/compatible Motors
We are good at M+S replacement/alternative/compatible motor
More Eaton Char-lynn replacement motor we have:
