BMK2 Series Orbital Hydraulic Motor SAE B Flange Sizes 65 To 475cc/rev Max Pressure Up 210Bar

BMK2 series Orbital Hydraulic Motor, SAE B flange, Sizes 65 to 475cc/rev, Max. Pressure up 210Bar

Quick review:

BMK2 series hydraulic motors are 100% compatible with Eaton char-lynn 2000 series

BMK2 - Geroler Orbital Motors, Features
Displacement: 3.97 – 29.60 in³/rev
Cont. Torque: 136.4 – 623.2 lbf.ft
Continuous Speed: 153 – 835 rpm

About HANJIU Technology:

Precision manufacturing, providing solutions for hydraulic systems. Grow together with customers, always provide innovation in products and services, always maintain our quality standards, and let our professional team meet your needs. Brand new wholeheartedly provide you with quality service. Our goal is to ensure that our customers receive fast, efficient and reliable service. Be a benchmark enterprise in the industry and lead the industry development.

HANJIU manufactures economical hydraulic motors, hydraulic directional valves and Orbitrol steering for all over the world.

We specialize in Eaaton Char-lynn replacement/alternative/compatible motors
We specialize in Saauer Danfooss replacement/alternative/compatible motors
We specialize in Parker replacement/alternative/compatible motors
We specialize in Brevini replacement/alternative/compatible Motors
We are good at M+S replacement/alternative/compatible motor

Speed, torque, flow, pressure, weight informations:

Main Specifications:
Type		BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2
		65	80	100	125	160	200	250	315	400	475
Geometric displacement (cm3 /rev.)		65	80	100.9	129.8	156.8	193.4	242.5	304.3	390.8	485
Max. speed (rpm)	cont.	835	800	742	576	477	385	308	246	191	153
	int.	990	980	924	720	713	577	462	365	287	230
Max. torque (N·m)	cont.	185	235	295	385	455	540	660	765	775	845
	int.	245	345	445	560	570	665	820	885	925	930
Max. pressure drop (MPa)	cont.	20.5	21	21	21	20.5	20.5	20.5	21	15.5	12
	int.	27.5	31	31	31	26	26	26	24	17	14
	peak	31	31	31	31	31	31	31	31	20.5	17
Max. flow (L/min)	cont.	55	65	75	75	75	75	75	75	75	75
	int.	65	80	95	95	115	115	115	115	115	115
Weight (kg)		9.2	9.4	9.7	10	10.2	10.5	11	11.5	12	12.4
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.









More Eaton Char-lynn replacement motor we have:



• J (129-)
• H (101-)
• S (103-)
• T (158-)
• W (162-)
• 2000 (104-, 105-, 106-,)
• 4000 (109-, 110-,)
• 6000 (112-, 113-, 114-)
• 10000 ( 119-)

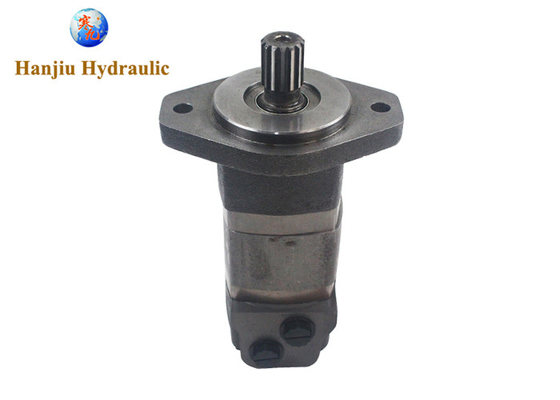

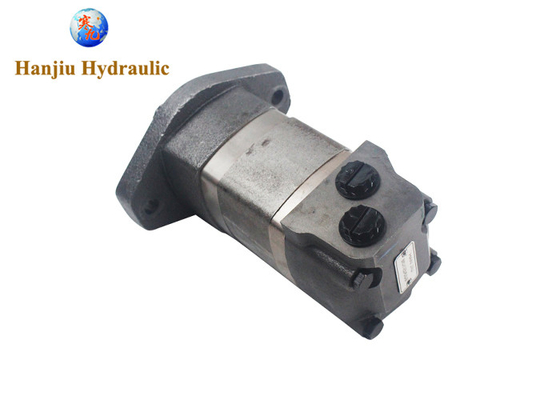

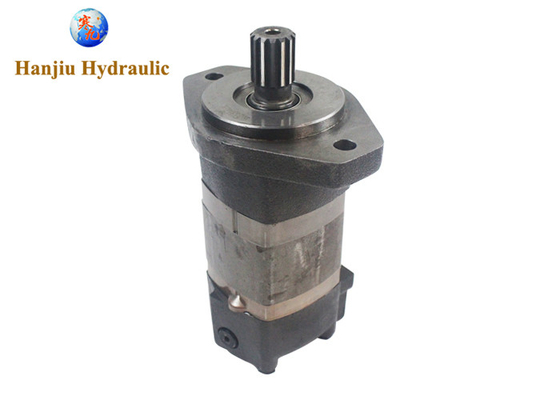

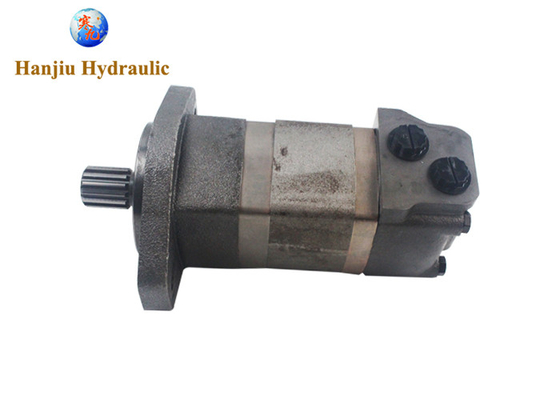

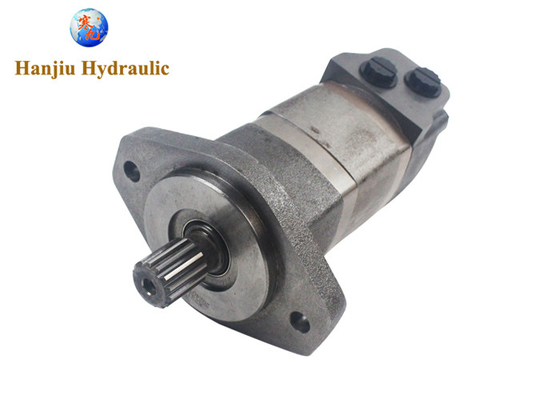

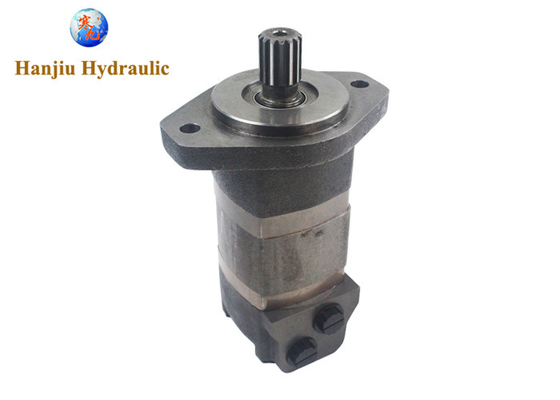

Photo:









Measurement:
