Product Details:
Payment & Shipping Terms:
|
| Item: | Disc Geroler Motors | Material: | Cast Iron |
|---|---|---|---|
| Direction Of Rotation: | Reversible | Fastening: | 4 Bolts Standard Type |
| Maximum Pressure: | 3500 Bar | Charlynn Code: | 109-1003 |
| Highlight: | 4 bolt Disc geroler motor,109-1003-006 Hydraulic Motor,Char-Lynn 4000 Series Hydraulic Motor |
||

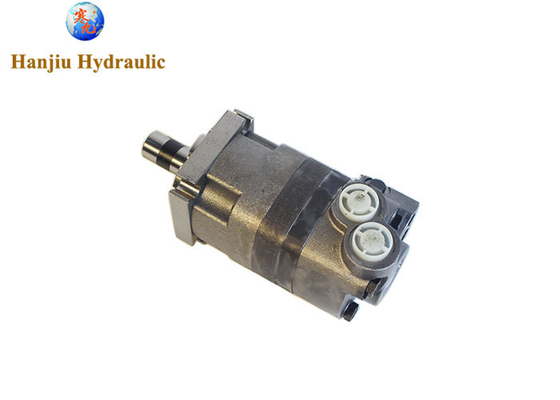

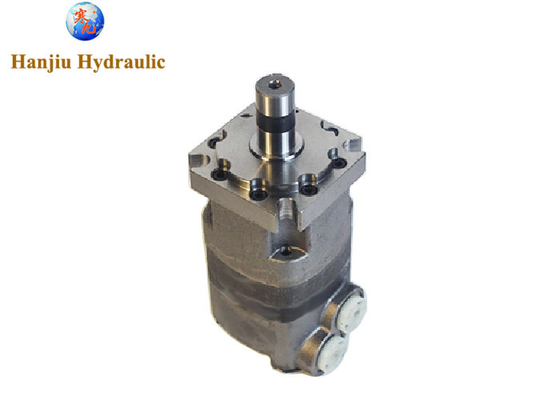

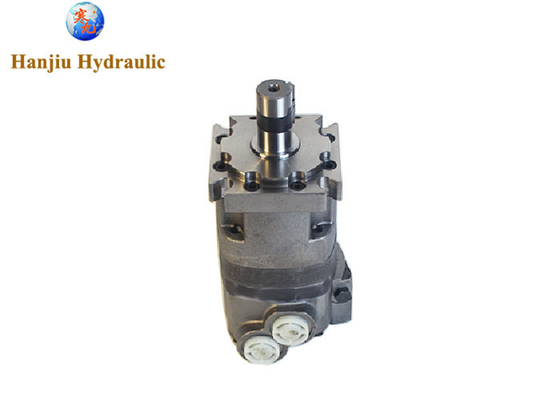

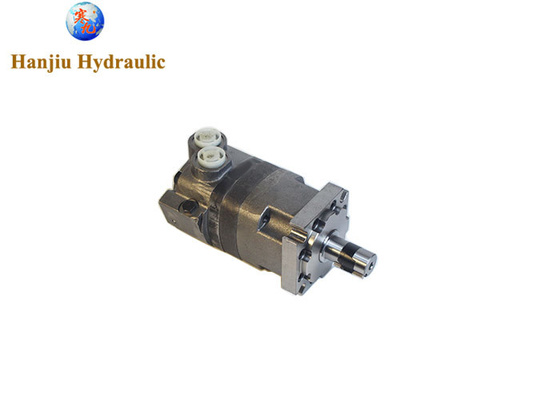

109-1003-006 Char-Lynn 4000 Series Hydraulic Motor 4 bolt Disc geroler motor
Product details:
Disc Motor
Geroler
Disc Valve109-1003-006 Char-Lynn 4000 Series Hydraulic Motor
Main Specifications:
| TYPE | BMK4 | BMK4 | BMK4 | BMK4 | BMK4 | BMK4 | |
| 160 | 200 | 250 | 315 | 400 | 500 | ||
| Displacement(ml/r) | 159.2 | 195.6 | 246.1 | 311.6 | 391.3 | 490.8 | |
| Max.speed(rpm) | cont. | 560 | 440 | 300 | 234 | 188 | 155 |
| int. | 670 | 535 | 450 | 351 | 282 | 232 | |
| Max.Pressure.Drop(Mpa) | cont. | 20 | 20 | 20 | 20 | 20 | 20 |
| int. | 30 | 30 | 30 | 30 | 30 | 27.5 | |
| peak. | 30 | 30 | 30 | 30 | 30 | 30 | |
| Max.Torque(N.m) | cont. | 450 | 565 | 710 | 920 | 1160 | 1445 |
| int. | 680 | 855 | 1080 | 1325 | 1625 | 1880 | |
| Max.Flow(cont.)(L/min) | cont. | 95 | 95 | 150 | 150 | 150 | 150 |
| int. | 115 | 115 | 205 | 225 | 225 | 225 | |
| Weight(kg) | 26.3 | 26.5 | 26.8 | 27.3 | 28 | 28.8 | |
Geroler motors are a type of hydraulic motor known for their high torque output at low speeds. This makes them ideal for various heavy-duty applications where significant rotational force is required. Here are some common applications of Geroler motors
Construction Equipment
Excavators The powerful torque of Geroler motors is essential for digging and lifting heavy loads.
Cranes Geroler motors provide the necessary force for lifting and moving heavy objects.
Drilling rigs The high torque output is ideal for drilling into the ground.
Agricultural Machinery
Tractors Geroler motors power the various implements used in agriculture, such as plows, harrows, and balers.
Harvesters The high torque is required for cutting, threshing, and transporting crops.
Industrial Machinery
Presses Geroler motors provide the force needed for pressing and forming materials.
Conveyors The high torque can be used to move heavy loads along conveyor belts.
Mixers Geroler motors are used to power the mixing blades in various industrial processes.
Marine Applications
Winches Geroler motors are used to power winches for lifting and lowering heavy objects.
Steering systems The high torque can be used to turn the rudders of large ships.
Mobile Equipment
Forklifts Geroler motors provide the power for lifting and moving heavy loads.
Aerial work platforms The high torque is needed to lift the platform to high altitudes.
Other Applications
Oil and gas industry Geroler motors are used in various applications, such as pumping and drilling.
Mining industry The high torque is required for moving heavy equipment and materials.
Manufacturing Geroler motors are used in various manufacturing processes, such as metalworking and plastics processing.
These are just a few examples of the many applications of Geroler motors. Their versatility and high torque output make them a valuable component in a wide range of industries.
Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems
