Product Details:
Payment & Shipping Terms:
|
| Item: | Disc Geroler Motors | Model: | 4000 Series |
|---|---|---|---|
| Direction Of Rotation: | Reversible | Fastening: | 4 Bolts Standard Type |
| Maximum Pressure: | 3500 Bar | Material: | Cast Iron |
| Highlight: | 4k Series hydraulic geroler motor,Eaton hydraulic geroler motor,4k Series eaton geroler motor |
||

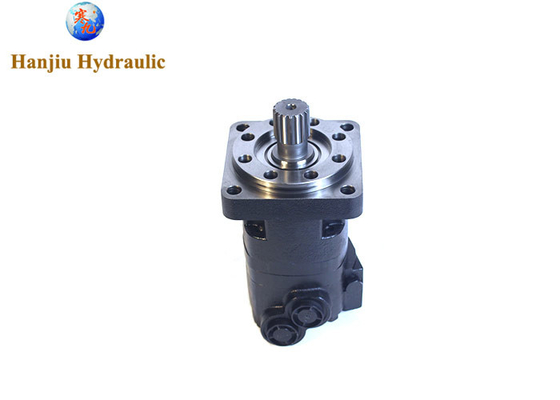

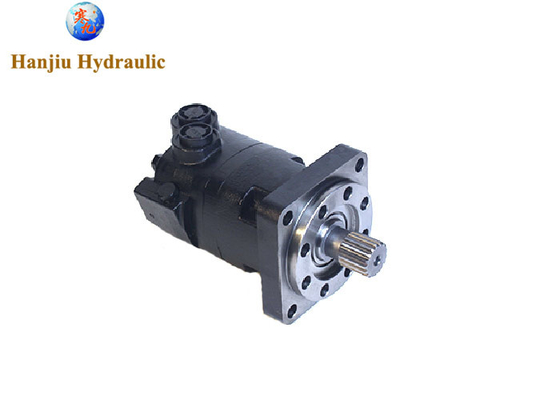

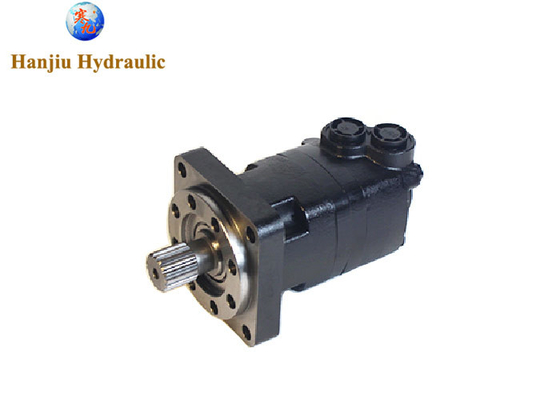

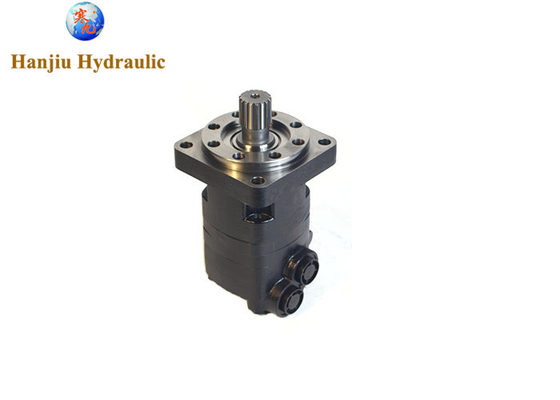

Part name:Hydraulic Motor
Part Number:109-1192-006 109-1192-aft
Fitment Type:Direct Replacement
Condition:New
Details:
Disc Motor
Geroler
Disc Valve
Product details:
| MOUNTING TYPE CODE | STANDARD, 4 BOLT; 127.00 [5.000] PILOT DIA.14.27 [.562] DIA. HOLES ON 161.92 [6.375] DIA. BOLT CIRCLE. (SAE C) |
| PORT TYPE | G 3/4 PORTS - STAGGERED PORTS |
| DISPLACEMENT (IN3/REV) | 130.3 CM3/R [7.95 IN3/R] |
| SHAFT SIZE & TYPE | 38.10 [1.500] DIA. FLAT ROOT SIDE FIT, 17 TOOTH, 12/24 DP 30 DEG. INVOLUTE SPLINE, 31.2 [1.23] MINIMUM FULL SPLINE LENGTH, WITH .375-16 UNC-2B THREAD IN END |
| RPM [MAX] | 582 rpm |
| MOUNT TYPE | 4 Bolt |
| OUTPUT TORQUE AT RATED PSI (INCH/POUNDS) | 4290 in lb |
| SHAFT TYPE | Splined |
| MOTOR TYPE | Disc Valve |
| MOUNTING HOLES | 0.58 in |
| FLANGE ORIENTATION | Standard |
| DRAIN | SAE-4 w/Check Valve |
| DUTY | Standard-Duty |
| MOTOR ELEMENT | Geroler |
| SERIES | 4000 Series |
| ROTATION | Standard Rotation |
| FLOW RATE | 25 gal/min |
| PORT SIZE | 3/4- unf |
| PILOT DIAMETER | 4 in |
| PORT LOCATION | Side Port |
| BOLT CIRCLE DIA. | 5 in |
| MOUNTING HOLE SIZE | 0.58 in |
| OUTPUT SHAFT CODE | 3 |
| SEAL MATERIAL | Buna-N |
| INLET PRESSURE [MAX] | 4500 psi |
| CORROSION RESISTANT | No |
| PAINT/PACKAGING | Individual Box |
| MAXIMUM SPEED @ CONTINUOUS FLOW | 582 rpm @ 25 gal/min |
| SPECIAL FEATURES | None |
| PAINT CODE | black |
| WEIGHT | 57.0 LB |
Key Applications
Construction Equipment
Excavators Driving tracks, swing mechanisms, and attachments.
Cranes Rotating and lifting operations.
Drilling rigs Powering drilling mechanisms and auxiliary functions.
Agricultural Machinery
Tractors Driving tracks or wheels, powering implements.
Harvesters Operating various components like feed systems and conveyors.
Industrial Machinery
Conveyors Providing power for belt or roller conveyors.
Mixers Driving mixing blades in various industrial processes.
Presses Applying force for various industrial applications.
Marine Applications
Winches Powering lifting and lowering operations.
Steering systems Providing power for steering mechanisms.
Thrusters Generating propulsion for marine vessels.
Mobile Equipment
Forklifts Driving wheels and lifting masts.
Aerial work platforms Powering platform rotation and extension.
Specific Applications Based on Motor Characteristics
High torque, low-speed applications Excavator tracks, heavy-duty mixers.
Medium torque, medium-speed applications Conveyors, agricultural machinery components.
High-speed applications Some specialized orbital motors can be used in applications requiring higher speeds, such as certain pump drives.
