BMT-800-4-M-D BMT MT BM4U OMT Orbital Motors 800 Mlr Key Shaft 4 Bolt

Large Image : BMT-800-4-M-D BMT MT BM4U OMT Orbital Motors 800 Mlr Key Shaft 4 Bolt

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMT-800-4-M-D

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	190 usd/pc
Packaging Details:	1 pc/ wooden box, wooden pallet for sea shipping
Delivery Time:	10 - 15 work days
Payment Terms:	D/A, D/P, T/T, Western Union
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Product:

Hydraulic Motor

Displacement:

00 Ml/r

Shaft:

Key Shaft

Rotation:

Highlight:

4 bolt BMT-800-4-M-D Orbital Motors

BMT-800-4-M-D Orbital Motors

BMT-800-4-M-D BMT MT BM4U OMT Orbital Motors 800 mlr key shaft 4 bolt

Quick review:

Model number: BMT-800-4-M-D
Displacement: 800 ml/r
Shaft, key shaft
Rotation, CW
Features, replace Eaton Char-lynn 6000, Saaeur Danfoos OMT, M+S MT

Speed, torque, flow, pressure, weight informations:

Main Specifications:

Type		BMT 160	BMT 200	BMT 230	BMT 250	BMT 315	BMT 400	BMT 500	BMT 630	BMT 800
Geometric displacement (cm3 /rev.)		161.1	201.4	232.5	251.8	326.3	410.9	523.6	629.1	801.8
Max. speed (rpm)	cont.	625	625	536	500	380	305	240	196	154
Max. speed (rpm)	int.	780	750	643	600	460	365	285	233	185
Max. torque (N·m)	cont.	470	590	670	730	950	1080	1220	1318	1464
	int.	560	710	821	880	1140	1260	1370	1498	1520
	peak	669	838	958	1036	1346.3	1450.3	1643.8	1618.8	1665
Max. output (kW)	cont.	27.7	34.9	34.7	34.5	34.9	31.2	28.8	25.3	22.2
Max. output (kW)	int.	32	40	40	40	40	35	35	27.5	26.8
Max. pressure drop (MPa)	cont.	20	20	20	20	20	18	16	14	12.5
	int.	24	24	24	24	24	21	18	16	13
	peak	28	28	28	28	28	24	21	19	16
Max. flow (L/min)	cont.	100	125	125	125	125	125	125	125	125
Max. flow (L/min)	int.	125	150	150	150	150	150	150	150	150
Max. inlet pressure (MPa)	cont.	21	21	21	21	21	21	21	21	21
	int.	25	25	25	25	25	25	25	25	25
	peak	30	30	30	30	30	30	30	30	30
Weight (kg)		19.5	20	20.4	20.5	21	22	23	24	25

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

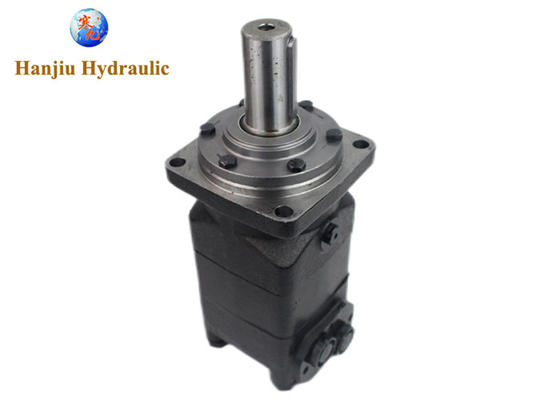

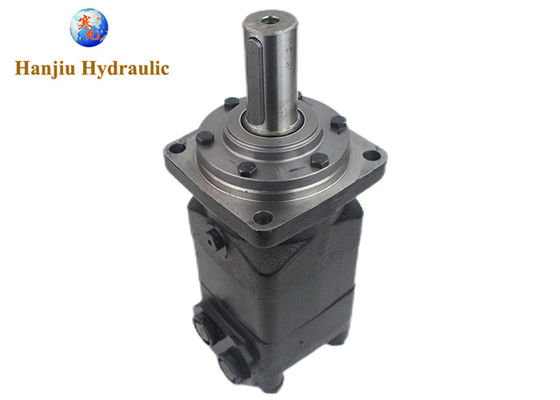

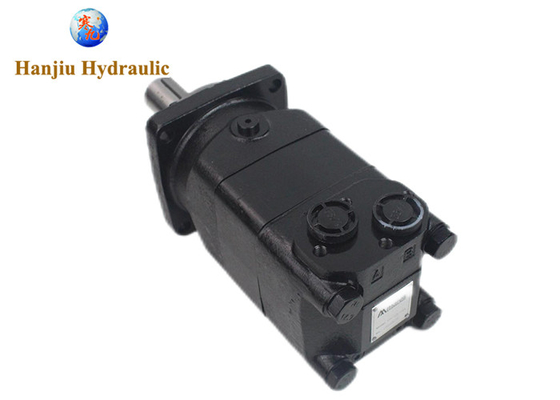

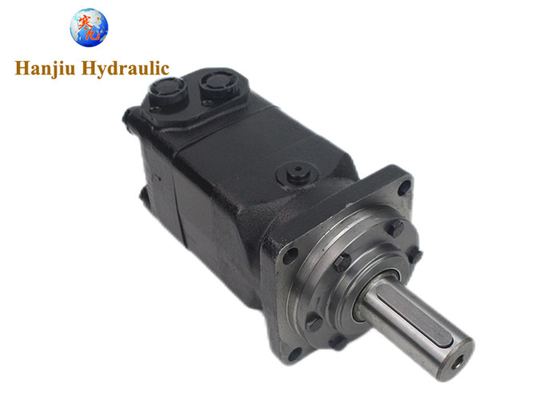

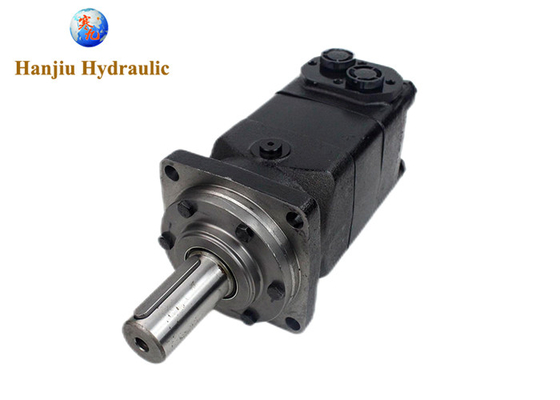

Photo:

BMT-800-4-M-D BMT MT BM4U OMT Orbital Motors 800 Mlr Key Shaft 4 Bolt 0

BMT-800-4-M-D BMT MT BM4U OMT Orbital Motors 800 Mlr Key Shaft 4 Bolt 1

Benefits:

• High efficiency

• Powerful compact

package

• Design flexibility

• Extended leak-free

performance

Applications:

• Agricultural augers,

harvesters, seeders

• Car wash brushes

• Food processing

• Railroad maintenance

equipment

• Machine tools

• Conveyors

• Industrial sweepers and

floor polishers

• Saw mill works

• Turf equipment

• Concrete and asphalt

equipment

• Skid steer attachments

Measurement:

Engine Compatible With BMT / BMTS Char Lynn6000 Danfoss OMT / OMTS M+S MLHT 1
