Product Details:
Payment & Shipping Terms:
|
| Features: | Eaton Char-lynn Replacement | Item: | Gerotor Hydraulic Motor |
|---|---|---|---|
| Series: | 109-1100 | Displacement: | 109.8 CM3/R |
| Mounting Type: | STANDARD, 4 BOLT | Output Shaft: | 31.75 [1.250] DIA. STRAIGHT |
| Origin: | China | Manufacturer: | Hanjiu |
| Brand: | Hanjiu | Seal Option: | Standard |
| Highlight: | danfoss hydraulic motor,China hydraulic motor,109-1100-006 |
||
Quick review:

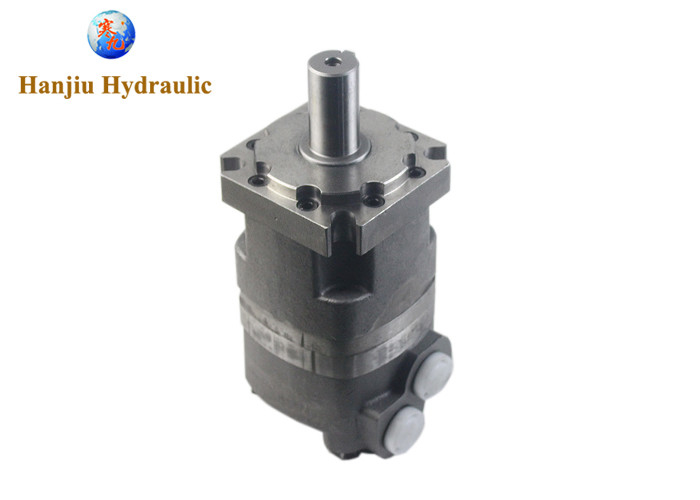

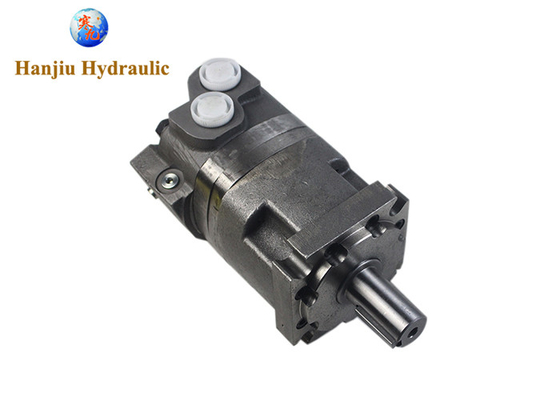

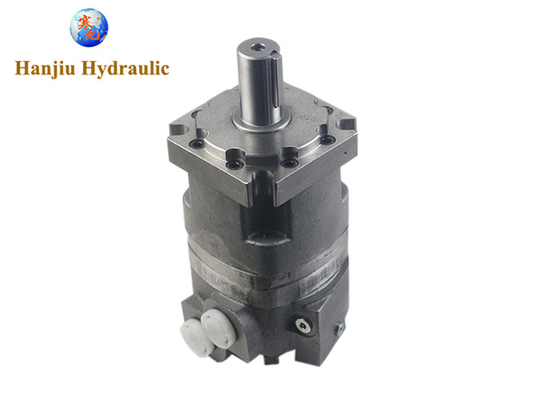

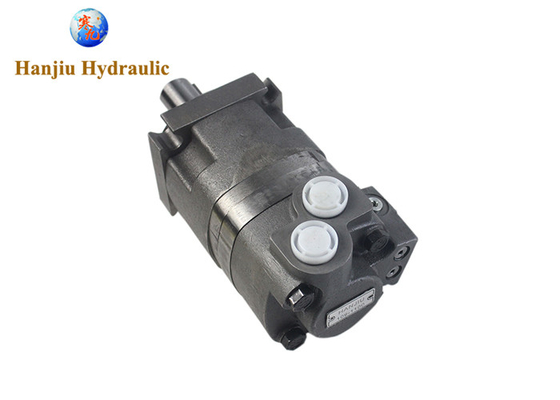

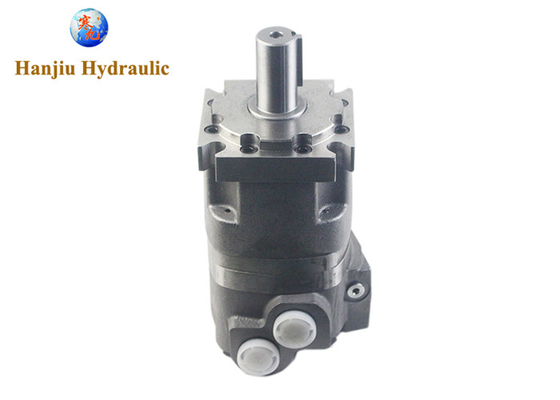

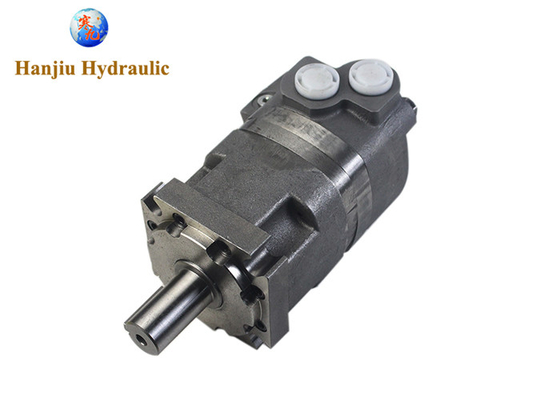

This motor compatible with Danfoss Char-lynn 109-1100-006 109-1100 hydraulic motor
109-1100-006
Motors - 4000 Series; Standard Mount Motor
Model Code: M04067AB01AB02000000000000000F
|
Product Specifications
|
|
|
|
Description |
| PRODUCT | MOTOR |
| SERIES | 4000 SERIES |
| DISPLACEMENT | 109.8 CM3/R |
| MOUNTING TYPE | STANDARD, 4 BOLT |
| OUTPUT SHAFT | 31.75 STRAIGHT |
| PORTS | 1.0625-12 UN-2B SAE O-RING |
| Caase FLOW OPTIONS | .4375-20 UNF-2B SAE O-RING PORT |
About Us:
We are a hydraulic motor manufacturer from China, specializing in the manufacturing, research and development, design and customization of low-speed and high-torque hydraulic motors. For Eaton char-lynn hydraulic motors, we have a series of hydraulic motors from 8ml - 985ml that can be directly used for replacement and replacement of Eaton char-lynn hydraulic motors.
Developed for applications requiring low speed high torque, our motors are available in different types depending on their rotation speed and maximum torque capacity. Capacity is between 8 and 980 cm3. From China, we have an annual output of more than 200,000 units and stable delivery . Welcome to contact us for the latest price.
Here are examples we make 109- series motors , motor models contact us to get
| 109-1001-006 | 109-1100-006 | 109-1155-006 | 109-1212-006 | 109-1278-006 |
| 109-1002-006 | 109-1101-006 | 109-1156-006 | 109-1215-006 | 109-1280-006 |
| 109-1003-006 | 109-1102-006 | 109-1157-006 | 109-1220-006 | 109-1286-006 |
| 109-1006-006 | 109-1103-006 | 109-1158-006 | 109-1224-006 | 109-1287-006 |
| 109-1008-006 | 109-1104-006 | 109-1159-006 | 109-1225-006 | 109-1293-006 |
| 109-1011-006 | 109-1105-006 | 109-1160-006 | 109-1227-006 | 109-1295-006 |
| 109-1012-006 | 109-1106-006 | 109-1173-006 | 109-1231-006 | 109-1296-006 |
| 109-1013-006 | 109-1107-006 | 109-1184-006 | 109-1233-006 | 109-1304-006 |
| 109-1052-006 | 109-1108-006 | 109-1185-006 | 109-1234-006 | 109-1305-006 |
| 109-1053-006 | 109-1109-006 | 109-1189-006 | 109-1236-006 | 109-1309-006 |
| 109-1054-006 | 109-1110-006 | 109-1190-006 | 109-1238-006 | 109-1311-006 |
| 109-1055-006 | 109-1111-006 | 109-1191-006 | 109-1245-006 | 109-1314-006 |
| 109-1056-006 | 109-1112-006 | 109-1192-006 | 109-1246-006 | 109-1316-006 |
| 109-1057-006 | 109-1113-006 | 109-1193-006 | 109-1247-006 | 109-1317-006 |
| 109-1059-006 | 109-1114-006 | 109-1194-006 | 109-1248-006 | 109-1318-006 |
| 109-1061-006 | 109-1115-006 | 109-1195-006 | 109-1252-006 | 109-1337-006 |
| 109-1062-006 | 109-1116-006 | 109-1196-006 | 109-1254-006 | 109-1339-006 |
| 109-1063-006 | 109-1117-006 | 109-1203-006 | 109-1260-006 | 109-1363-006 |
| 109-1064-006 | 109-1118-006 | 109-1204-006 | 109-1263-006 | 109-1450-006 |
| 109-1065-006 | 109-1119-006 | 109-1207-006 | 109-1264-006 | 109-1453-006 |
| 109-1087-006 | 109-1120-006 | 109-1208-006 | 109-1267-006 | 109-1543-006 |
| 109-1094-006 | 109-1154-006 | 109-1211-006 | 109-1269-006 | 110-1092-006 |
