| Model No.: | BMPH100 | Displacement: | 100cc |
|---|---|---|---|
| Speed: | 615/770rpm | Torque: | 182/227 Nm |
| Max Power: | 11/13KW | Max Flow: | 60/75LPM |
| Highlight: | charlynn 101-1195-009 hydraulic gerotor motor,100cc hydraulic gerotor motor |
||

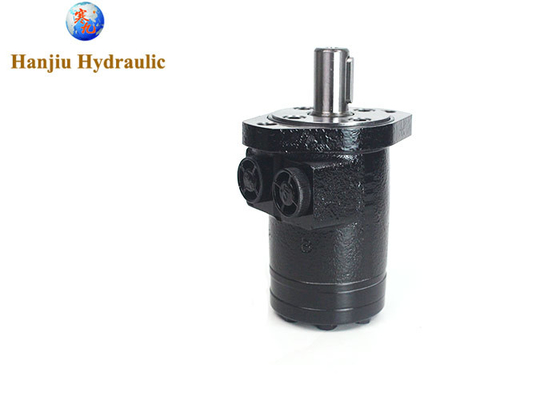

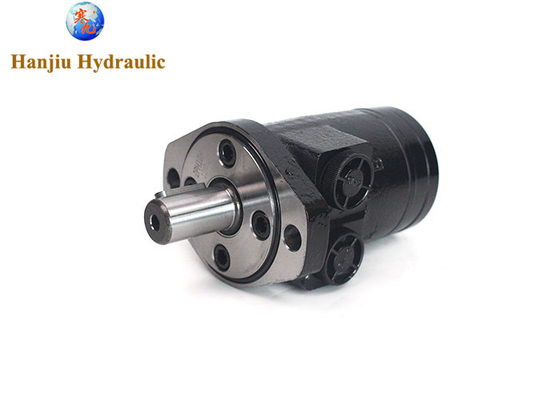

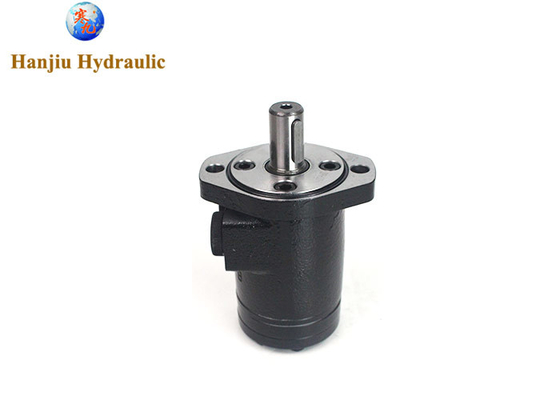

charlynn 101-1195-009 hydraulic gerotor motor, 100cc, 2 bolts flange with straight key shaft high torque motor
HANJIU Technology supply the BMPH series motors, code BMPH-100-H2R-A-G, matching Eaton charlynn H series 101-1195-009
with needle bearing , high torque motor,and flange rotate 90 degrees
Details:
- Displacement: 100cc
- Flange H4 Ø82.55mm
- Shaft: Ø25.4mm,woodruff key φ25.4X6.35,with crosshole ∅10.3
- Ports: G1/2 (A & B), G1/4(T)
| Geometric displacement (cm3/rev.) | 100cc | |
| Max. speed (rpm) | cont. | 615 |
| int. | 770 | |
| Max. torque (N•m) | cont. | 182 |
| int. | 227 | |
| peak | 264 | |
| Max. output (kW) | cont. | 11.0 |
| int. | 13 | |
| Max. pressure drop(MPa) | cont. | 14 |
| int. | 17.5 | |
| peak | 22.5 | |
| Max. flow (L/min) | cont. | 60 |
| int. | 75 | |
| Weight (kg) | 5.9 | |
