| Item: | Motor Geroler | Model: | 119-1028-003 |
|---|---|---|---|
| Size: | 343.8 CM3/R [20.98 IN3/R] | Mounting: | Standard, 4 Bolt |
| Shaft: | 57.15 Mm Straight Shaft | Pilot: | 1.3125-12 UN-2B SAE O-RING |
| Highlight: | char lynn geroler motor,119-1028-003 geroler motor,danfoss geroler hydraulic motor |
||

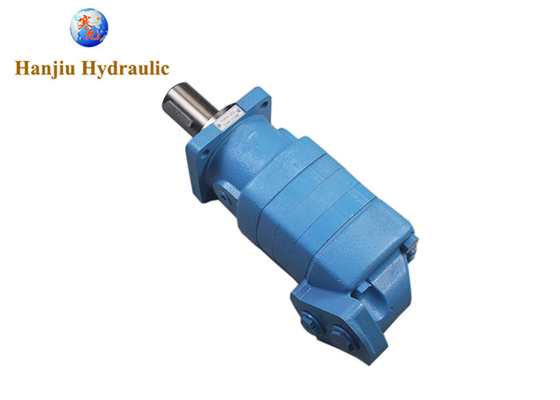

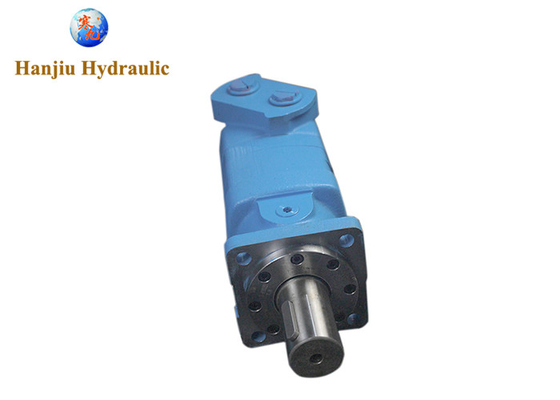

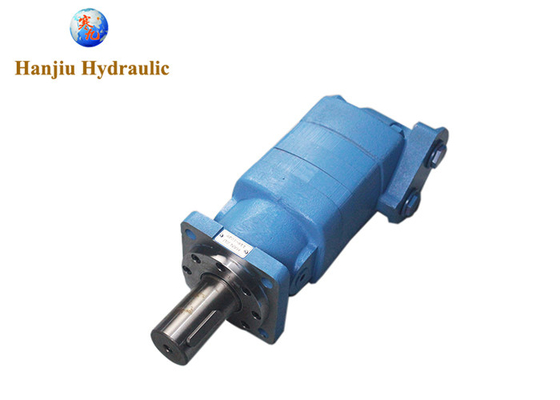

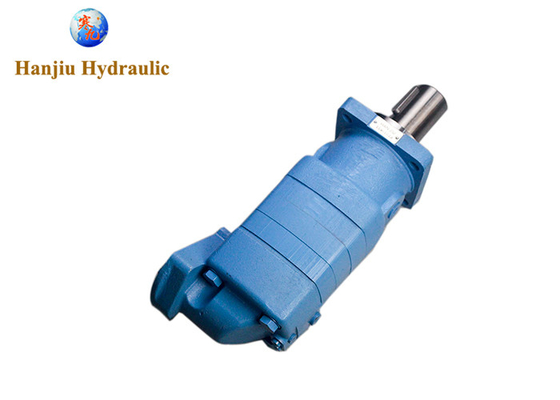

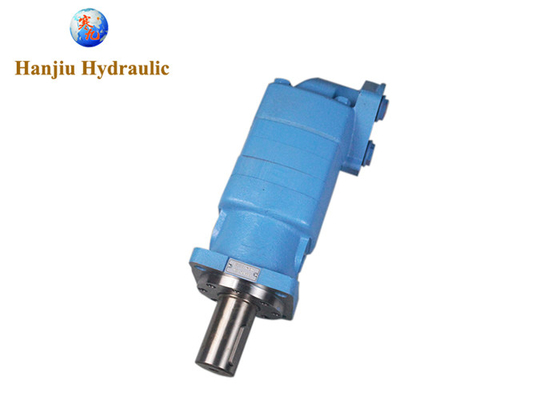

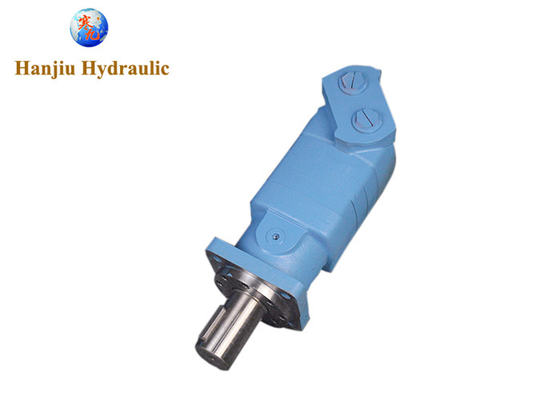

Char-Lynn (Danfoss) 119-1028-003, 10000 Series Hydraulic Motor made in China by Hanjiu
Quick review:
| 119-1028-003 | ||
| M10210AA01AA01000000000000000C | ||
| Feature | Code | Description |
| PRODUCT | M | MOTOR |
| SERIES | 10 | 10,000 SERIES |
| DISPLACEMENT | 210 | 343.8 CM3/R [20.98 IN3/R] |
| MOUNTING TYPE | AA | STANDARD, 4 BOLT; 127.0 [5.00] PILOT DIA. 16.76 [.660] DIA. HOLES ON 161.92 [6.375] DIA. BOLT CIRCLE. |
| OUTPUT SHAFT | 1 | 57.15 [2.250] DIA. STRAIGHT SHAFT WITH .500-20 UNF-2B THREAD IN END, 12.7 [.50] SQUARE X 63.5 [2.50] STRAIGHT KEY |
| PORTS | AA | 1.3125-12 UN-2B SAE O-RING STAGGERED PORTS |
| FLOW OPTIONS | 1 | .5625-18 UNF-2B DRAIN SAE O-RING PORT |
| LOW PRESSURE RELIEF | 0 | NONE |
| PRESSURE / FLOW OPTION | 0 | NONE |
| GEROLER OPTION | 0 | STANDARD |
| SEAL OPTION | 0 | STANDARD |
More Char-Lynn (Danfoss) 10000 series hydraulic motor:
119-1028
119-1029
119-1030
119-1031
119-1034
119-1035
119-1042
119-1046
119-1047
A compact, highly efficient hydraulic motor is a key component of a hydraulic drive system. Hanjiu offers a wide variety of motors with unique performance characteristics which are designed for superior, efficient system performance. Contact us today to discuss your questions or application needs with our team.
Hanjiu Technology Company production of LSHT hydraulic motors, a wide variety of types, their production of motors for the main markets of hydraulics including construction, agriculture, traditional industry, metallurgy, mining, shipbuilding and horticulture and other fields, Hanjiu company relies on its strong global distribution network to sell their products to various countries and regions, in many places can appreciate the Hanjiu technology hydraulic motors to provide fast and convenient services.
