Charlynn Gerotor Hydraulic Motor 103-1064-002 4 Bolts Square Flange 1 Inch SAE 6B Splined Shaft

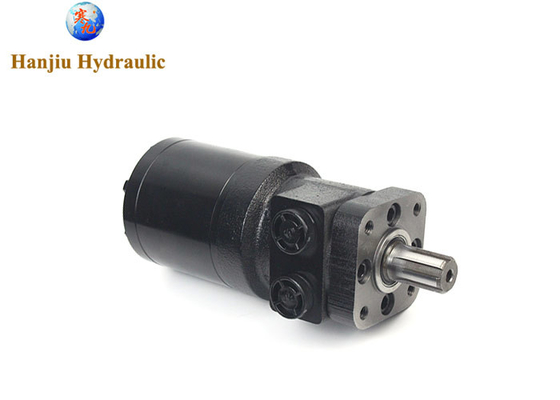

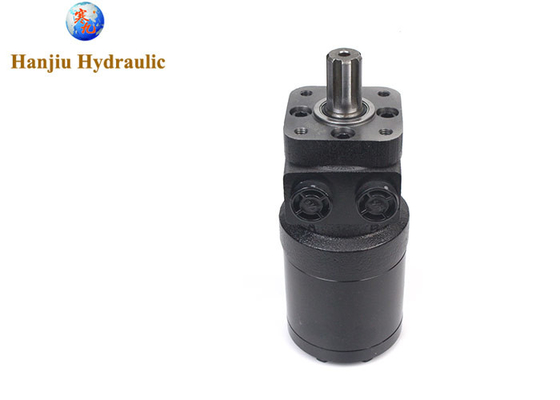

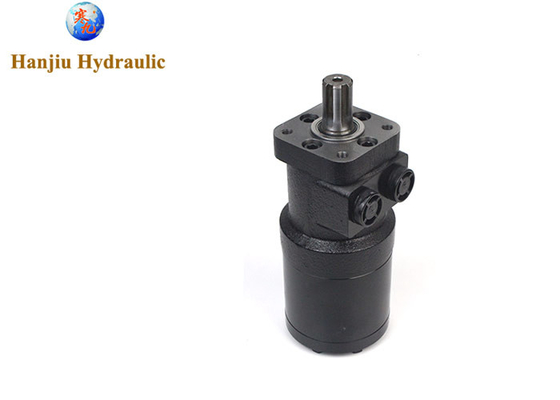

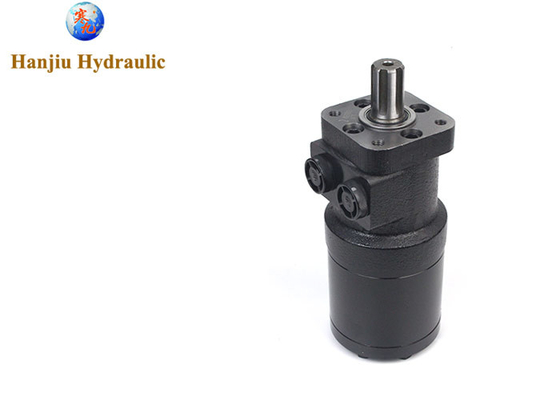

Large Image : Charlynn Gerotor Hydraulic Motor 103-1064-002 4 Bolts Square Flange 1 Inch SAE 6B Splined Shaft

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMRS MOTOR

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	47 - 60 usd
Packaging Details:	1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Delivery Time:	10 - 15 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability:	70000 pieces per year

Contact Now

Detailed Product Description

Type:	Geroler And Gerotor Motor	Model No.:	BMRS375
Max Speed:	Cont.155/int. 190 Rpm	Max Torque:	Cont.365/int. 495 N.M
Max Output:	Cont.5/int. 8 Kw	Max Pressure:	Cont.7/int 10 Mpa
Highlight:	Charlynn Gerotor Hydraulic Motor , Gerotor Hydraulic Motor 103-1064-002 , 4 Bolts Square Flange Hydraulic Motor

Charlynn gerotor hydraulic motor 103-1064-002, 4 bolts square flange, 1 inch SAE 6B Splined shaft

Specifications:

Type	BMRS
Displacement	375CC
shaft	1inch 6B spline shaft
Flange	H4
Port Position	side ports
Shaft Seal	High Pressure
Drain	Yes

Main specification

Type		BMRS 36	BMRS 50	BMRS 80	BMRS 100	BMRS 125	BMRS 160	BMRS 200	BMRS 250	BMRS 315	BMRS 375
displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13.0	12.5	12.5	10	7.0	6.0	5
Max. output (kW)	int.	9.8	11.2	15	15.0	14.5	14	13	9.5	9.0	8
Max. pressure drop (MPa)	cont.	14.0	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8.0	8.5	9.0	9.5
