| Item: | Disc Geroler Motors | Model: | 4000 Series |
|---|---|---|---|
| Direction Of Rotation: | Reversible | Flange: | 4 Bolts Standard Type |
| Shaft: | 1 1/4 Spline Shaft | Charlynn Code: | 109-1450-aft |
| Highlight: | Gerotor Hydraulic Motor 109-1450-006,Aftermarket Gerotor Hydraulic Motor,109-1450-006 Hydraulic Drive Motor |
||

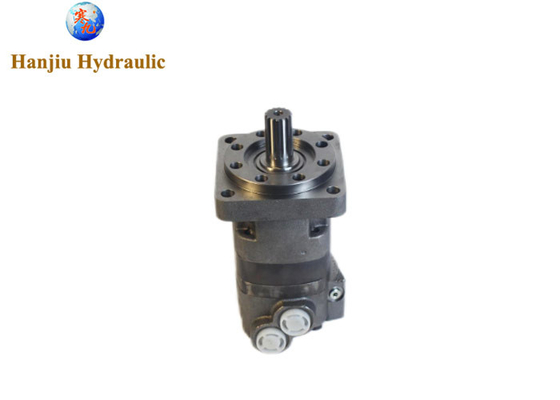

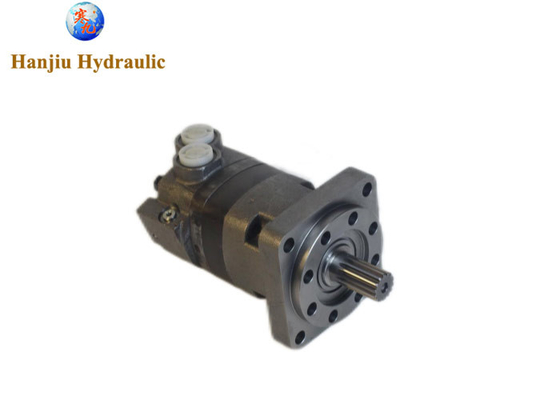

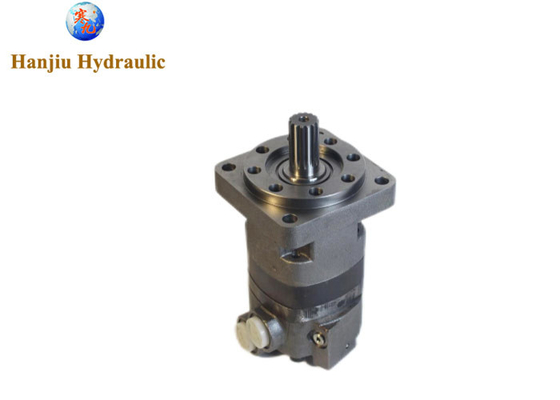

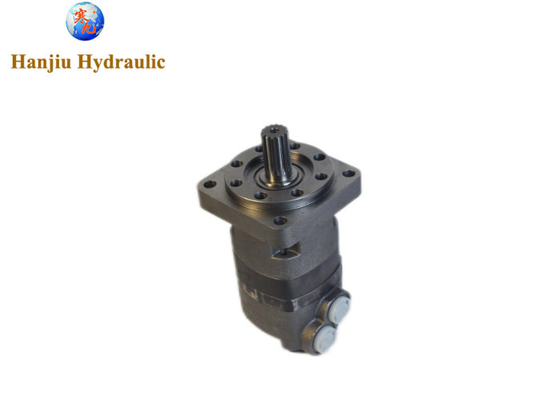

New aftermarket Gerotor hydraulic motor charlynn 4k 109-1450-006 Disc Valve Hydraulic Motors
Disc Motor
Geroler
Disc Valve
3/4 Split Flange Port
15.03 Cubic Inch Displacement Per Rev
Product details:
| MOTOR TYPE | Disc Valve |
| MOUNT TYPE | 4 Bolt |
| DISPLACEMENT (IN3/REV) | 15.03 |
| MOUNTING HOLE SIZE | 0.562 in |
| PORT SIZE | 3/4 unf |
| PAINT/PACKAGING | Individual Box |
| SHAFT SIZE & TYPE | Splined |
| RPM [MAX] | 383 rpm |
| SERIES | 4000 Series |
| MOTOR ELEMENT | Geroler |
| PILOT DIAMETER | 5 in |
| DRAIN | 0.4375-20 UNF-2B SAE O-Ring Port With Check Valve |
| BOLT CIRCLE DIA. | 6 3/8 in |
| GEROTER/GEROLER OPTIONS | Standard |
| MATERIAL | Cast Iron |
| OUTPUT TORQUE AT RATED PSI (INCH/POUNDS) | 6240 in lb |
| PORT TYPE | Split Flange |
| FLOW RATE | 25 gal/min |
| WEIGHT | 46.16 LB |
