| Type: | Gerotor Hydraulic Motor | Manufacturer: | HANJIU |
|---|---|---|---|
| Model: | BMSY-125-W-B-D-B | Displacement: | 125 Ml/r |
| Shaft: | Ø 32mm | Port: | G1/2 Manifold |
| Highlight: | 32mm shaft wheel mount hydraulic motor,gerotor wheel mount hydraulic motor |
||

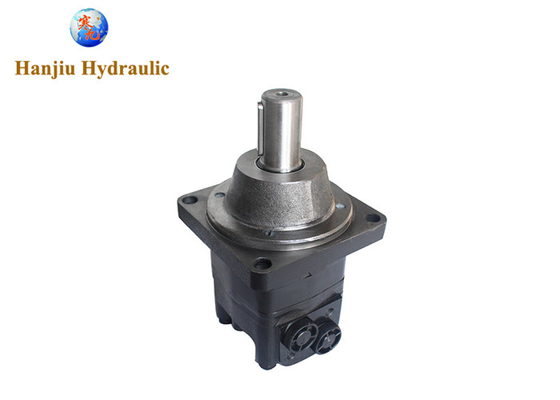

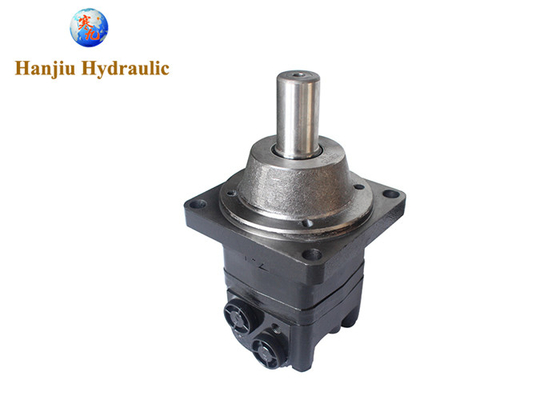

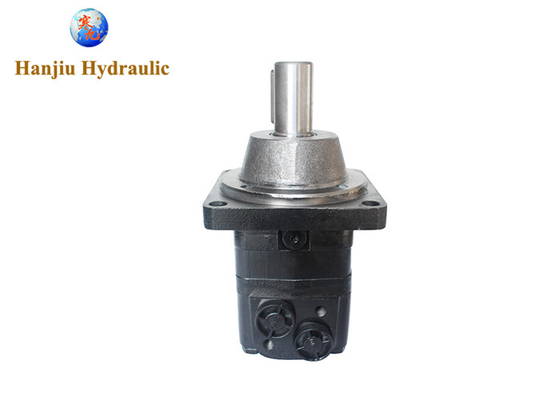

Wheel Motor BMSY-125-W-B-D-B, wheel flange, Shaft Ø 32mm, G1/2 Manifold Port
BMS is a Gerotor hydraulic orbital motor widely used suitable for a wide variety of hydraulics fluids. Lifting platforms, loaders, construction equipment. Large tractive forces are generated when needed, and the motor can also be used as the main drive. When the traction of the wheeled motor is not needed, the motor is in freewheeling mode. Drive at high speeds without specific hydraulics and save on control systems and fuel consumption! Due to the good sealing, the motor operates without problems even in harsh and dirty conditions. It has the characteristics of safety, excellent performance and low cost.
Quick review : BMSY-125-W-B-D-B
Output Shaft : Shaft Ø 32 , parllel key 10×8×45
Port : G1/2 Manifold Mount 2-M10 , G1/4
Rotation Direction : Left and Right
Spec:
| Type | BMSY | BMSY | BMSY | BMSY | BMSY | BMSY | BMSY | BMSY | BMSY | |
| BMSYS | BMSYS | BMSYS | BMSYS | BMSYS | BMSYS | BMSYS | BMSYS | BMSYS | ||
| 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | 155 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | 185 | |
| Max. torque (N•m) | cont. | 225 | 290 | 365 | 485 | 586 | 708 | 880 | 880 | 910 |
| int. | 305 | 390 | 480 | 590 | 705 | 860 | 1000 | 980 | 990 | |
| Max. output (kW) | cont. | 16 | 18 | 18 | 18.1 | 18.1 | 18 | 17 | 11 | 9 |
| int. | 20 | 22 | 23 | 25 | 24 | 23.8 | 20.2 | 12 | 11 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 21 | 21 | 20 | 20 | 16 | 14 |
| int. | 27.5 | 27.5 | 27.5 | 26 | 25 | 25 | 24 | 19 | 15 | |
| peak | 29.5 | 29.5 | 29.5 | 28 | 27 | 27 | 26 | 21 | 17.5 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 13.2 | 14.3 | |
