| Type: | Gerotor Hydraulic Motor | Manufacturer: | HANJIU |
|---|---|---|---|
| Model: | BMSY-125-E4-BD | Displacement: | 125ml/r |
| Shaft: | Ø 32mm | Port: | G1/2 Manifold |
| Highlight: | 125ml/r gerotor hydraulic motor,4 bolt flange gerotor hydraulic motor,4 bolt flange gerotor motor |
||

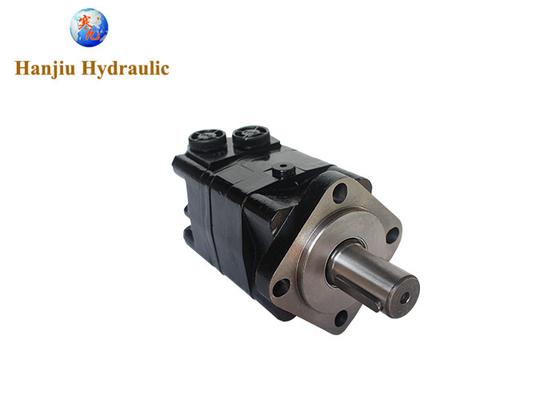

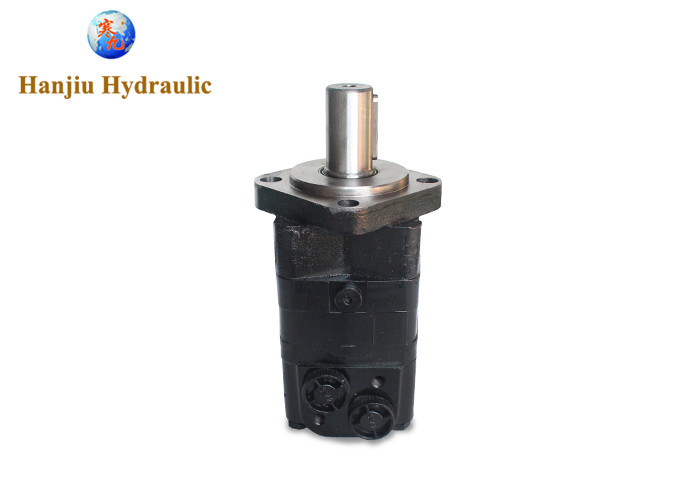

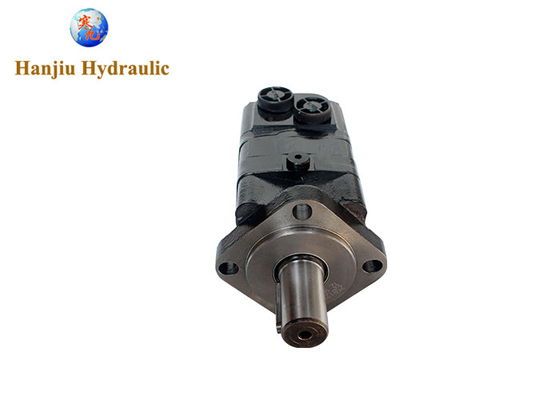

Gerotor Hydraulic Motor BMSY-125-E4-BD, 4 bolt flange, Shaft Ø 32mm, G1/2 Manifold Port
BMS is a Gerotor hydraulic orbital motor widely used suitable for a wide variety of hydraulics fluids. Lawn and turf equipment, Loader Angle Broom Attachment, Brush Cutter, Rider Sweeper, Winches, etc. It has the characteristics of safety, excellent performance and low cost.
Quick review : BMSY-125-E4-BD
Output Shaft : Shaft Ø 32 , parllel key 10×8×45
Port : G1/2 Manifold Mount 2-M10 , G1/4
Rotation Direction : Left and Right
Spec:
| Type | BMSY | BMSY | BMSY | BMSY | BMSY | BMSY | BMSY | BMSY | BMSY | |
| BMSYS | BMSYS | BMSYS | BMSYS | BMSYS | BMSYS | BMSYS | BMSYS | BMSYS | ||
| 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | 155 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | 185 | |
| Max. torque (N•m) | cont. | 225 | 290 | 365 | 485 | 586 | 708 | 880 | 880 | 910 |
| int. | 305 | 390 | 480 | 590 | 705 | 860 | 1000 | 980 | 990 | |
| Max. output (kW) | cont. | 16 | 18 | 18 | 18.1 | 18.1 | 18 | 17 | 11 | 9 |
| int. | 20 | 22 | 23 | 25 | 24 | 23.8 | 20.2 | 12 | 11 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 21 | 21 | 20 | 20 | 16 | 14 |
| int. | 27.5 | 27.5 | 27.5 | 26 | 25 | 25 | 24 | 19 | 15 | |
| peak | 29.5 | 29.5 | 29.5 | 28 | 27 | 27 | 26 | 21 | 17.5 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 13.2 | 14.3 | |
