Diaphragm Pump Danfoss Replacement Hydraulic Drive Motor BMP Series 125cc 540RPM

Large Image : Diaphragm Pump Danfoss Replacement Hydraulic Drive Motor BMP Series 125cc 540RPM

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMP series

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	Start from 95 usd
Packaging Details:	Carton, Box, Pallets
Delivery Time:	35 - 45 work days
Payment Terms:	L/C, T/T, Western Union, Western Union
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Item:	LSHT Motors	Model:	BMP
Fastening:	2 Bolt	Port:	Staggered Ports
Shaft:	Straight	Pilot:	82.5mm
Highlight:	540RPM Hydraulic Drive Motor , 125cc Hydraulic Drive Motor , Diaphragm Pump danfoss hydraulic motor

Can’t find what you are looking for? Contact us today to discuss your questions or application needs with our team.

Diaphragm Pump Hydraulic Drive Motor, Danfoss Replacement, BMP series, 125cc, 540 RPM

Fast review of this Drive Motor:

Hydraulic drive motor with a constant speed valve which maintains the motor speed of 540 rpm

Model No.	BMP-125
Displacement	125 ml/r
Pressure	170 bar
Output shaft	25mm Straight
Weight	11 kgs
Manufacturer	Hanjiu

Main Specifications:

Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMP BMPH BMPW 36	BMP BMPH BMPW 50	BMP BMPH BMPW 80	BMP BMPH BMPW 100	BMP BMPH BMPW 125	BMP BMPH BMPW 160	BMP BMPH BMPW 200	BMP BMPH BMPW 250	BMP BMPH BMPW 315	BMP BMPH BMPW 400	BMP BMPH BMPW 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	380	375	360	385
	int.	76	128	186	227	290	370	440	460	555	525	560
	peak	96	148	218	264	360	434	540	550	650	680	680
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	5
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	6
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	11	9	7	6
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	14	14	10.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	16	14	12
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	5.6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8

Technical data for BMP with 31.75 and 32 shaftt:

Type		BMP BMPH 36	BMP BMPH 50	BMP BMPH 80	BMP BMPH 100	BMP BMPH 125	BMP BMPH 160	BMP BMPH 200	BMP BMPH 250	BMP BMPH 315	BMP BMPH 400	BMP BMPH 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	460	475	490	430
	int.	76	128	186	227	290	370	440	570	555	580	560
	peak	96	148	218	264	360	434	540	670	840	840	780
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	6
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	7
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	14	12	9.5	7
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	17.5	14	11.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	13
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8

* Continuous pressure:Max.value of operating motor continuously.

* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .

* Peak pressure:Max.value of operating motor in 0.6 second per minute.

A compact, highly efficient hydraulic motor is a key component of a hydraulic drive system. Hanjiu offers a wide variety of motors with unique performance characteristics which are designed for superior, efficient system performance.

Hydraulic motors provide excellent control for acceleration, operating speed, deceleration, smooth reversals, and positioning. They also provide flexibility in design and eliminate much of the bulk and weight of mechanical and electrical power transmission. Accurate torque and speed calculations based upon system parameters will ensure the motor can survive the harshest operating environments.

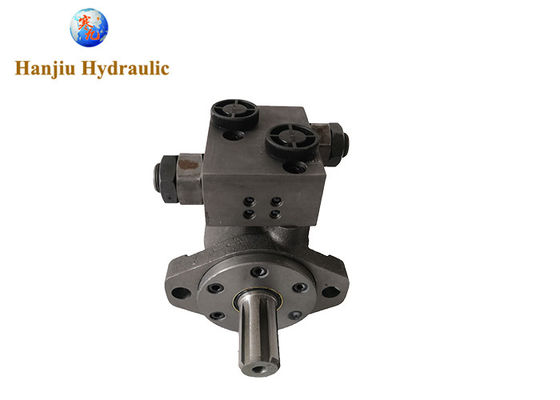

Diaphragm Pump Danfoss Replacement Hydraulic Drive Motor BMP Series 125cc 540RPM 0

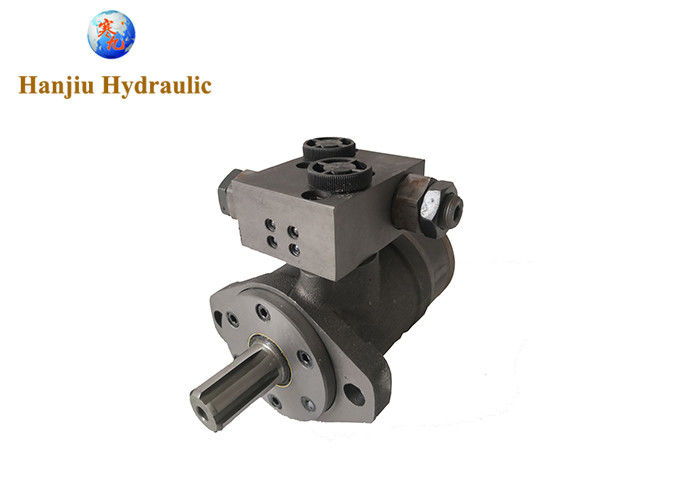

Diaphragm Pump Danfoss Replacement Hydraulic Drive Motor BMP Series 125cc 540RPM 1
