| Item: | Motor Geroler | Model: | 4000 Series |
|---|---|---|---|
| Direction Of Rotation: | Reversible | Fastening: | 2 Bolts. |
| Maximum System Temperature: | 82ºC | Minimum Oil Viscosity: | 70 SUS |
| Highlight: | Eaton 4000 geroler hydraulic motor,Eaton 4000 Series Geroler Motor |
||

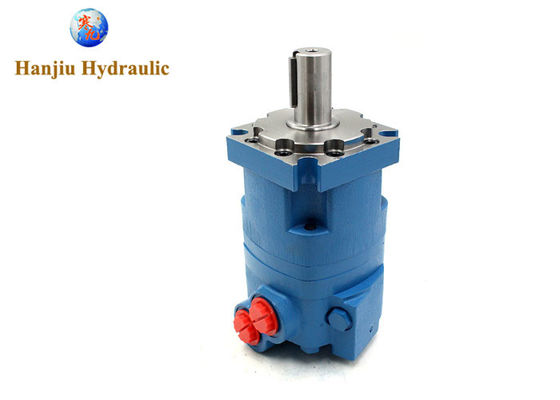

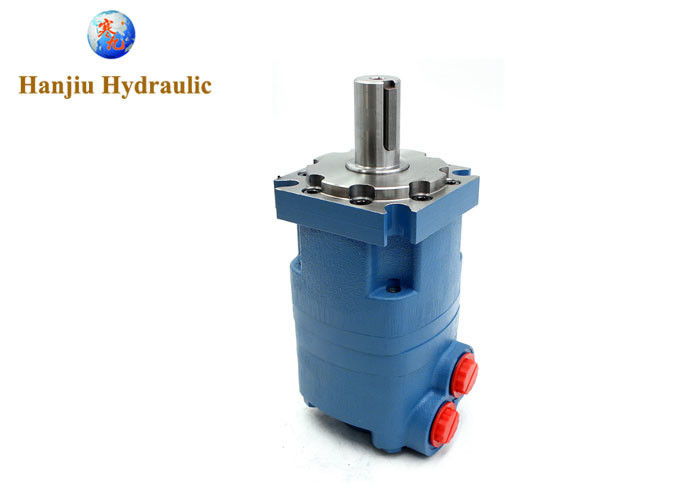

Motor Geroler, Eaton 4000 series like for hydraulic applications and industrial machinery
Geroler Engine
These motors are actuators widely used in industrial production lines in multiple areas and also in hydraulic applications and industrial machinery.
Description:
Reversible direction of rotation.
High radial loads on the axle, allow direct mounting of wheels or other elements.
Maximum system temperature 82ºC.
Minimum oil viscosity: 70 SUS.
Use 10 micron oil filters.
4000 series Motor Geroler
| Displ. cm3/r | 110 | 130 | 160 | 205 | 245 | 280 | 310 | 395 | 495 | 625 |
| Max Speed rpm | 697 | 722 | 582 | 459 | 383 | 336 | 303 | 239 | 191 | 151 |
| Flow l/min | 75/95 | 95/115 | 95/115 | 95/115 | 95/130 | 95/130 | 95/130 | 95/150 | 95/150 | 95/150 |
| Torque Nm | 320/470 | 375/560 | 485/705 | 600/800 | 705/845 | 753/957 | 850/1065 | 930/1185 | 945/1170 | 970/1180 |
| Discrption | ||
| Series 2.000 | ||
| Model | Displacement | Speed |
| Max. cont. | ||
| 104-1002 | 6,2 | 742 |
| 104-1023 | 6,2 | 742 |
| 104-1003 | 8,0 | 579 |
| 104-1024 | 8 | 576 |
| 104-1004 | 9,6 | 477 |
| 104-1025 | 9,6 | 477 |
| 104-1027 | 14,9 | 308 |
| 104-1026 | 11,9 | 385 |
| 104-1006 | 14,9 | 308 |
| 104-1027 | 14,9 | 308 |
| 104-1028 | 18,7 | 246 |
| 104-1007 | 305 | 246 |
| 104-1229 | 395 | 191 |
| Series 10.000 | ||
| Model | Displacement | Speed |
| Max. cont. | ||
| 119-1028 | 345 | 501 |
| 119-1029 | 480 | 354 |
| 119-1030 | 665 | 254 |
| 121-1013 | 665 | 254 |
| 119-1031 | 940 | 179 |
| 120-1027 | 665 | 254 |
| 120-1015 | 665 | 254 |
| Series H | ||
| Model | Displacement | Speed |
| Max. cont. | ||
| 101-1700 | 36 | 1021 |
| 101-1025 | 46 | 969 |
| 101-1705 | 59 | 953 |
| 101-1026 | 74 | 760 |
| 101-1035 | 97 | 585 |
| 101-1706 | 120 | 469 |
| 101-1028 | 159 | 353 |
| 101-1029 | 185 | 304 |
| 101-1030 | 231 | 243 |
| 101-1039 | 293 | 192 |
| 101-1031 | 293 | 192 |
| 101-1040 | 370 | 152 |
| 101-1032 | 370 | 152 |
A compact, highly efficient hydraulic motor is a key component of a hydraulic drive system. Hanjiu offers a wide variety of motors with unique performance characteristics which are designed for superior, efficient system performance. Contact us today to discuss your questions or application needs with our team.
