Product Details:
Payment & Shipping Terms:
|
| Model No.: | BMP/BMPH | Application: | Agricultural Equipment |
|---|---|---|---|
| Certificate: | ISO9001-2015 | Torque: | 182/227 Nm |
| Max Power: | 11.0/13.0KW | Max Flow: | 60/75LPM |
| Highlight: | Harvester oil seal motor,oil seal motor CB11516604,CB11516604 oil seal motor |
||

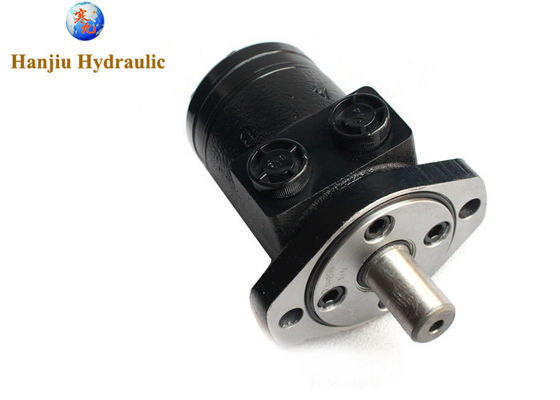

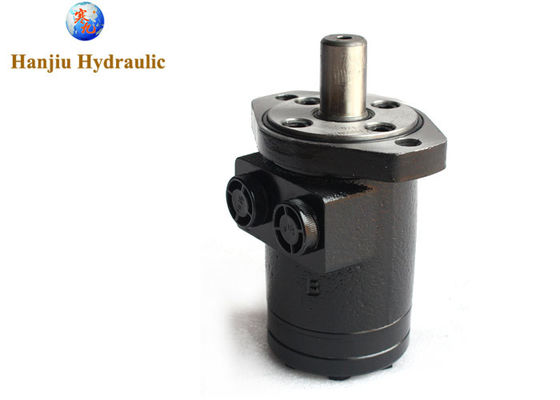

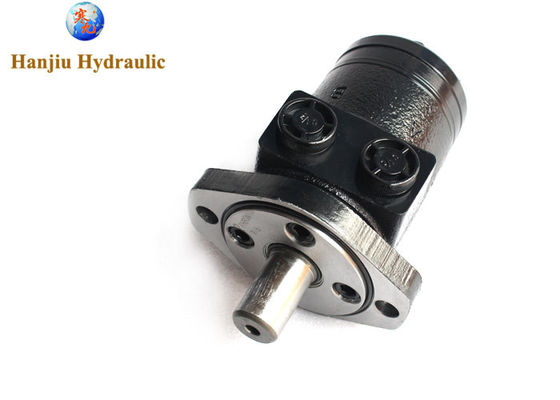

John Deere Sugarcane Harvester CB11516604 Hydraulic Components Charlynn H Series Gerotor Motor
Designed for medium duty applications, these motors use industry-proven spool valve technology combined with state of-the-art gerotors. In addition, a wide variety of mounting flanges, shafts, Ports and valving options provide design flexibility. Direction of shaft rotation and shaft speed can be controlled easily and smoothly throughout the speed range of the motor, and equipment can be driven direct, eliminating costly mechanical components.
|
HYDRAULIC SPOOL VALVE MOTOR |
|
- Displacement: 96.2cc |
|
- Flange H2 Ø106.4mm |
|
- Shaft: Ø25.4mm,woodruff key φ25.4X6.35 |
|
- Ports: 1/2 BSP" (A & B), 1/4" BSP (T) |
|
John Deere CH570 CH670 sugarcane equipment |
| EATON CHARLYNN TYPE | HANJIU TYPE |
| J (129-) | BMM |
| H (101-) | BMPH |
| S (103-) | BMRS/BMRW |
| T (158-) | BMRS/BMRW |
| W (162-) | BMRS/BMRW |
| 2000 (104-, 105-, 106-, 193-) | BMK2 |
| 4000 (109-, 110-, 111-) | BMK4 |
| 6000 (112-, 113-, 114-) | BMK6 |
| 10000 (119-) | BMK10 |
Applications
Harvestor / harvester built for harvesting specific crops.
Bean harvester
Beet harvester
Carrot harvester
Combine (grain) harvester
Combine (grain) Stripper
harvester Header
Corn harvester
Forage or silage harvester
Grape harvester
Over-the-row mechanical harvester for harvesting apples
Potato harvester
Potato spinner
Sugarcane harvester
Variations of harvesters are stripper cleaners and stripper loaders.
When you use a hydraulic motors, you found the speed is getting slowly
There are generally two possibilities for a slower motor speed
If it is a variable pump, check whether the flow of the oil pump is reduced (adjust the pump flow),
of course, the volumetric efficiency of the fixed pump also decreases.
Is the pressure adjusted too low (increase system pressure)
Excessive leakage inside the motor (repair or replace the motor)
If the motor used to rotate fast but is now slow, first determine whether the system pressure is sufficient,
and if the pressure is sufficient, replace the motor; If the system pressure is not enough,
you can try to increase the system pressure. If the system pressure can be increased but the motor is still slow,
it is recommended to replace the motor. If the system pressure cannot be increased or can not be increased to the rated pressure, it is recommended to check the overflow valve, if the overflow valve is good, then the oil pump needs to be replaced. But in the inspection process, you need to pay attention to whether the system has a speed control valve. If there is a speed control valve, you need to debug the speed control valve first.
Never repair, always replace a new one
