Product Details:
Payment & Shipping Terms:
|
| Type: | Hydraulic Geroler Motor | Model No.: | BMPH80 |
|---|---|---|---|
| Speed: | 770/960rpm | Torque: | 55/76 Nm |
| Max Power: | 10/12KW | Max Flow: | 60/75LPM |
| Highlight: | 80cc blince hydraulic motor,BMPH80 blince hydraulic motor,12KW blince hydraulic motor |
||

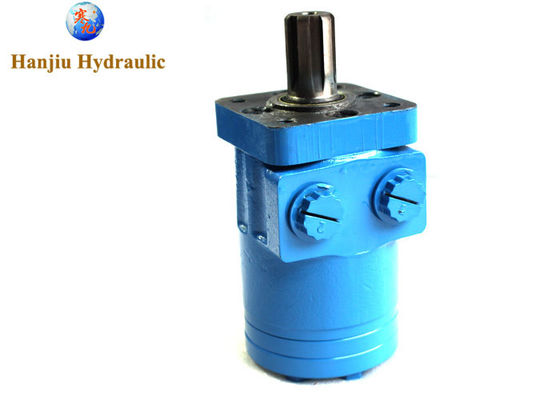

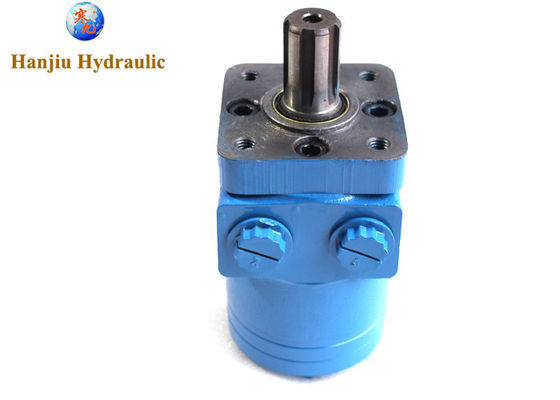

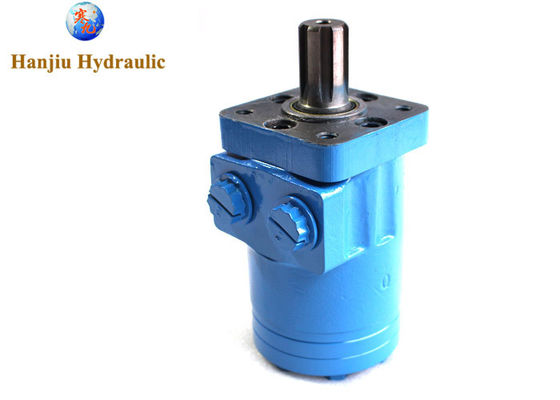

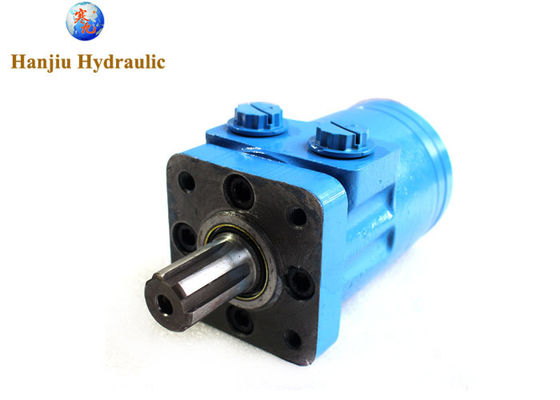

BLINCE hydraulic motor torque 80cc SAE A 4-Bolt Mount, 6B Spline Shaft, Side Ported, US vision ports
hydraulic motors specification as below
- Displacement: 77.7cc
- Flange H4 Ø82.55mm
- Shaft: Splined 6B
- Ports: 7/8-14 O-ring,7/16-20 UNF
- Charlynn 101-1082;101-1076;101-1090
related types :
101-1034
101-1026
101-1042
101-1058
101-1050
101-1066
Benefits
| Shaft distribution flow |
| Compact hydraulic motor |
| Low speed-high torque design |
| Can be used in parallel or series systems |
| Manufactured in accordance with the requirements of the ISO 9000-2000 quality system. |
Spool valve motor
HANJIU hydraulic profssion supply all series hydraulic motors, we have the most completely range of hydraulic motors from China
Danfoss series ------OMM/OMP/OMR/OMH/OMSY/OMT/OMV/ DH DS
M+S series----MM/MP/MR/MH/MS/MT/MV/EPRM/MLHH/MLHS
Charlynn series---S/H/T/2000/4000/6000/10000 series
Parker----TB/TE/TG
White----300/500/505....
Please do not hesitate to contact us for further information, inquiries or orders.
Thank you for choosing 'Hanjiu' Hydraulics.
