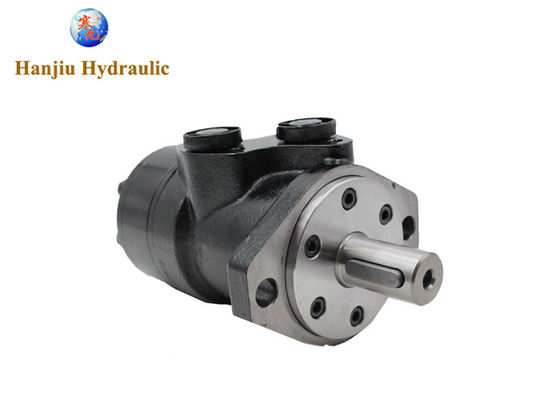

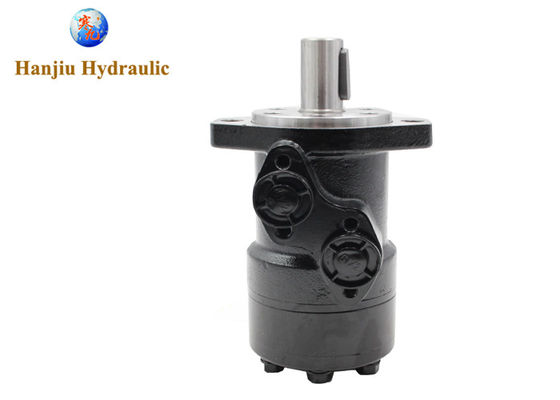

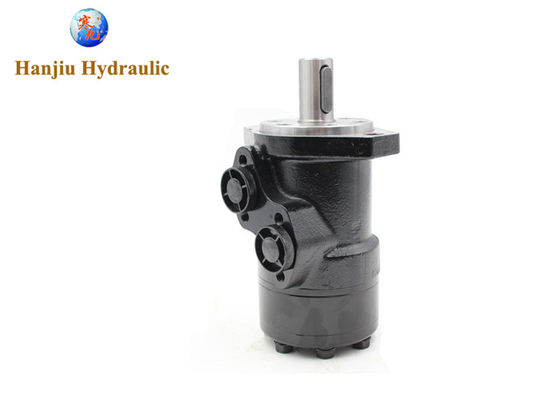

BMR160 Cylindrical Shaft Ø32 Mm 1/2 BSP Drain 1/4 BSP Hydraulic Blade Motor

BMR160 Cylindrical Shaft Ø32 Mm 1/2 BSP Drain 1/4 BSP Hydraulic Blade Motor
BMR160 Cylindrical Shaft Ø32 Mm 1/2 BSP Drain 1/4 BSP Hydraulic Blade Motor BMR160 Cylindrical Shaft Ø32 Mm 1/2 BSP Drain 1/4 BSP Hydraulic Blade Motor BMR160 Cylindrical Shaft Ø32 Mm 1/2 BSP Drain 1/4 BSP Hydraulic Blade Motor

Large Image :  BMR160 Cylindrical Shaft Ø32 Mm 1/2 BSP Drain 1/4 BSP Hydraulic Blade Motor

Product Details:
Place of Origin: China
Brand Name: HANJIU
Certification: CE
Model Number: BMR
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: 1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Delivery Time: 10 - 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability: 70000 pieces per year
Contact Now
Detailed Product Description
Type: Spool Valve Motor Brand: HANJIU
Model No.: BMR160 Displacement: 160cc
Speed: 378/475 Rpm Torque: 380/430/460 Nm
Max Power: 12.5 / 14 KW Max Flow: 60/75 LPM
Highlight:

32mm hydraulic blade motor

,

BMR160 hydraulic blade motor

,

160cc hydraulic blade motor



BLADE MOTOR BMR160 Cylindrical shaft Ø32 mm 1/2 BSP - Drain 1/4 BSP





This hydraulic motor can be used as a Blade motor on the combine harvester

This kind of hydraulic motor are widely used on harvesting system of agricultural machines hydraulic systems





Basic Motor: BMR
Size: 160
Mounting Flange: A2
Shaft Style: cylindrical
Shaft Size: 32 mm
Port Size: G 1/2
Drain Port: Standard
Check valve: Yes
Shaft Seal: Standard
Speed sensor: None
Max speed int: 470 U/min
Max speed cont: 375 U/min
Max torque int: 430 Nm
Max. torque cont: 380 Nm
Max. pressure drop int: 200 bar
Max. pressure drop cont: 175 bar
Max. oil flow int: 75 l/min
max. oil flow cont: 60 l/min
Max. inlet pressure int: 200 bar
Max. inlet pressure cont: 175 bar





Main Specifications of Hanjiu BMR








Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
Type BMR
BMRS
36		 BMR
BMRS
50		 BMR
BMRS
80		 BMR
BMRS
100		 BMR
BMRS
125		 BMR
BMRS
160		 BMR
BMRS
200		 BMR
BMRS
250		 BMR
BMRS
315		 BMR
BMRS
375
Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1085 960 750 600 475 378 310 240 190 155
int. 1220 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 360 360 390 390 365
int. 83 126 220 280 340 430 440 490 535 495
peak 105 165 270 320 370 460 560 640 650 680
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 10 7 6 5
int. 9.8 11.2 15 15 14.5 14 13 9.5 9 8
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 16.5 13 11 9 7
int. 16.5 17.5 20 20 20 20 17.5 15 13 10
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 20 17.5 15
Max. flow (L/min) cont. 40 50 60 60 60 60 60 60 60 60
int. 45 60 75 75 75 75 75 75 75 75
Weight (kg) 6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5



Technical data for BMR with 31.75 and 32 shaft:
Type BMR
BMRS
36		 BMR
BMRS
50		 BMR
BMRS
80		 BMR
BMRS
100		 BMR
BMRS
125		 BMR
BMRS
160		 BMR
BMRS
200		 BMR
BMRS
250		 BMR
BMRS
315		 BMR
BMRS
375
Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1250 960 750 600 475 378 310 240 190 155
int. 1520 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 380 450 540 550 580
int. 83 126 220 280 340 430 500 610 690 690
peak 105 165 270 320 370 460 560 710 840 830
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 11 10 9 7.5
int. 9.8 11.2 15 15 14.5 14 13 12 10 9
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 17.5 17.5 17.5 13.5 11.5
int. 16.5 17.5 20 20 20 20 20 20 17.5 15
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 21 17.5
Max. flow (L/min) cont. 45 50 60 60 60 60 60 60 60 60
int. 55 60 75 75 75 75 75 75 75 75
Weight (kg)   6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.





BMR160 Cylindrical Shaft Ø32 Mm 1/2 BSP Drain 1/4 BSP Hydraulic Blade Motor 0









Related items:



BMR160 Cylindrical Shaft Ø32 Mm 1/2 BSP Drain 1/4 BSP Hydraulic Blade Motor 1







BMR160 Cylindrical Shaft Ø32 Mm 1/2 BSP Drain 1/4 BSP Hydraulic Blade Motor 2





BMR160 Cylindrical Shaft Ø32 Mm 1/2 BSP Drain 1/4 BSP Hydraulic Blade Motor 3



Please do not hesitate to contact us for further information, inquiries or orders.

Thank you for choosing 'Hanjiu' Hydraulics.
