Drill Rig Motors Brevini Gerotor Hydraulic Motor BS400S4SS8CL254N01 Similar 23.9CID,1/2NPT,4BLT,1STR

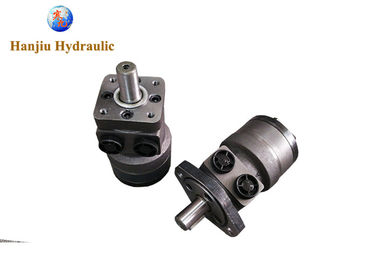

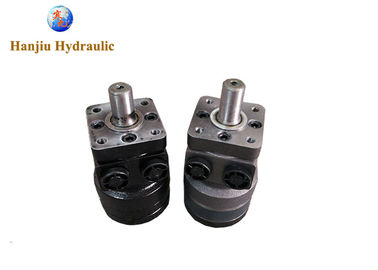

Large Image : Drill Rig Motors Brevini Gerotor Hydraulic Motor BS400S4SS8CL254N01 Similar 23.9CID,1/2NPT,4BLT,1STR

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMRS-400

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	Negotiable
Packaging Details:	43x29x18cm/ 3 pcs
Delivery Time:	25 - 35 work days
Payment Terms:	T/T, Western Union, Payple
Supply Ability:	200000 pieces per year

Contact Now

Detailed Product Description

Features:

Sam Brevini Interchange

Product:

Gerotor Hydraulic Motor

Series:

Size:

400 Cc

Highlight:

omr hydraulic motor

bmp hydraulic motor

Drill rig motors Brevini gerotor hydraulic motor BS400S4SS8CL254N01similar, 23.9CID,1/2NPT,4BLT,1STR

BS400S4SS8CL254N01 = BMRS

SERIES: Orbital motor

DISPLACEMENT: 393 cm3 /rev[23.9 in3 /rev]

MOUNTING FLANGE: 4 Bolt 3/8 16 UNC - Ø1.75 in

MAIN PORTS: 1/2" - 14 NPTF Main Ports

OUTPUT SHAFT: 1 in Parallel keyed

BMR indroduction:

This motor is a Gerotor Hydraulic Motor, also called Orbit Hydraulic Motor, or Low Speed High Torque Hydraulic Motor, also spool valve hydraulic motor.

Specifications/ Technical Data:

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Technical data for BMR with 31.75 and 32 shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1250	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1520	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	380	450	540	550	580
	int.	83	126	220	280	340	430	500	610	690	690
	peak	105	165	270	320	370	460	560	710	840	830
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	11	10	9	7.5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	12	10	9
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	17.5	17.5	17.5	13.5	11.5
	int.	16.5	17.5	20	20	20	20	20	20	17.5	15
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	21	17.5
Max. flow (L/min)	cont.	45	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	55	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

Applications

• Mining conveyers

• Mobile mixer-feeders

• Steel handling equipment

• Ride-on concrete trowels

• Mobile concrete mixing

• Drill rig motors

• Injection molding

• Rock power crushers

• Concrete trowels

• Concrete screed

• Waste recycler

• Marine winches

• Direct wheel drive

– Crop sprayers

– Skid steer

– Harvesters

– Asphalt/concrete paving

machines

– Turf mowers

– All terrain vehicles

Drill Rig Motors Brevini Gerotor Hydraulic Motor BS400S4SS8CL254N01 Similar 23.9CID,1/2NPT,4BLT,1STR 0

Drill Rig Motors Brevini Gerotor Hydraulic Motor BS400S4SS8CL254N01 Similar 23.9CID,1/2NPT,4BLT,1STR 1

Drill Rig Motors Brevini Gerotor Hydraulic Motor BS400S4SS8CL254N01 Similar 23.9CID,1/2NPT,4BLT,1STR 2
