M S Hydraulic Motor MLHP80C4E Interchange 80ml/Rev 2 Bolt Flange 1'' Shaft 7/8 Oil Ports

Large Image : M S Hydraulic Motor MLHP80C4E Interchange 80ml/Rev 2 Bolt Flange 1'' Shaft 7/8 Oil Ports

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMP

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Negotiable
Packaging Details:	27x40x14cm/ 3 pcs
Delivery Time:	25 - 35 work days
Payment Terms:	T/T, Western Union, Payple
Supply Ability:	120000 pieces per year

Contact Now

Detailed Product Description

Type:

Gerotor Hydraulic Motor

Brand:

HANJIU

Model No.:

BMP80

Feature:

M+S Interchange

Highlight:

omr hydraulic motor

bmp hydraulic motor

m s hydraulic motor MLHP80C4E interchange, 80ml/rev 2 bolt flange 1'' shaft 7/8 oil ports

MLHP80C4E

Mounting Flange: two holes

Displacement: 4.83 [ 79,2 cm /rev]

Shaft Extensions: 1" [25,4] straight, Parallel key

Port Size/Type: side ports, 2x7/8-14 UNF, O-ring, 7/16-20 UNF

Shaft Seal Version:Standard shaft seal

Drain Port:with drain port

Main Specifications:

Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMP BMPH BMPW 36	BMP BMPH BMPW 50	BMP BMPH BMPW 80	BMP BMPH BMPW 100	BMP BMPH BMPW 125	BMP BMPH BMPW 160	BMP BMPH BMPW 200	BMP BMPH BMPW 250	BMP BMPH BMPW 315	BMP BMPH BMPW 400	BMP BMPH BMPW 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	380	375	360	385
	int.	76	128	186	227	290	370	440	460	555	525	560
	peak	96	148	218	264	360	434	540	550	650	680	680
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	5
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	6
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	11	9	7	6
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	14	14	10.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	16	14	12
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	5.6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8

Technical data for BMP with 31.75 and 32 shaftt:

Type		BMP BMPH 36	BMP BMPH 50	BMP BMPH 80	BMP BMPH 100	BMP BMPH 125	BMP BMPH 160	BMP BMPH 200	BMP BMPH 250	BMP BMPH 315	BMP BMPH 400	BMP BMPH 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	460	475	490	430
	int.	76	128	186	227	290	370	440	570	555	580	560
	peak	96	148	218	264	360	434	540	670	840	840	780
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	6
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	7
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	14	12	9.5	7
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	17.5	14	11.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	13
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8

* Continuous pressure:Max.value of operating motor continuously.

* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .

* Peak pressure:Max.value of operating motor in 0.6 second per minute.

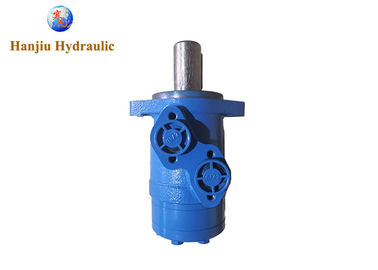

M S Hydraulic Motor MLHP80C4E Interchange 80ml/Rev 2 Bolt Flange 1'' Shaft 7/8 Oil Ports 0

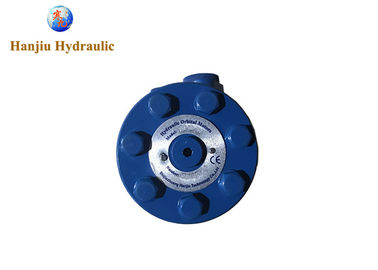

M S Hydraulic Motor MLHP80C4E Interchange 80ml/Rev 2 Bolt Flange 1'' Shaft 7/8 Oil Ports 1

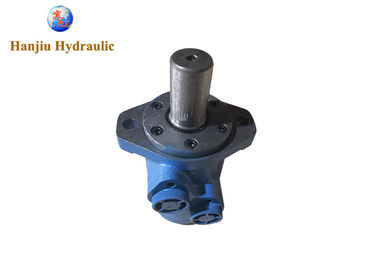

M S Hydraulic Motor MLHP80C4E Interchange 80ml/Rev 2 Bolt Flange 1'' Shaft 7/8 Oil Ports 2

Please do not hesitate to contact us for further information, inquiries or orders.

Thank you for choosing 'Hanjiu' Hydraulics.
