| Product: | Hydraulic Motor | Size: | 200 Ml/r |
|---|---|---|---|
| Flange: | 4-bolt | Rotation: | CCW |
| Highlight: | BMER-200-MS-SW Hydraulic Motor,25.4mm SAE 6B Shaft Hydraulic Motor,4 Bolt Mounting Hydraulic Motor |
||
Welcome to Hanjiu Hydraulic's shop
We specialize in orbital hydraulic motors. Customers use our hydraulic motors as high-quality direct replacements for Danofss, Eaton Char-lynn, White, M+S, Parker
We are glad that more and more customers choose Hanjiu hydraulic motors
We will continue to serve more customers with higher quality, lower prices, and faster delivery

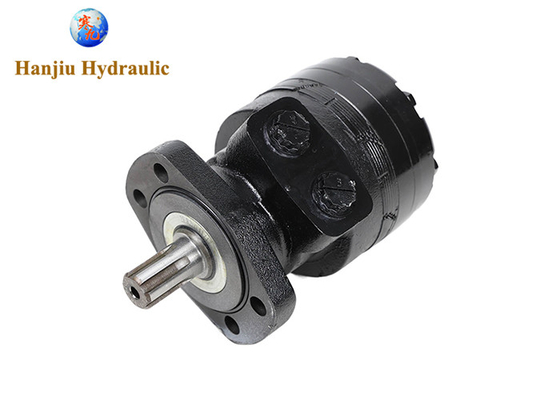

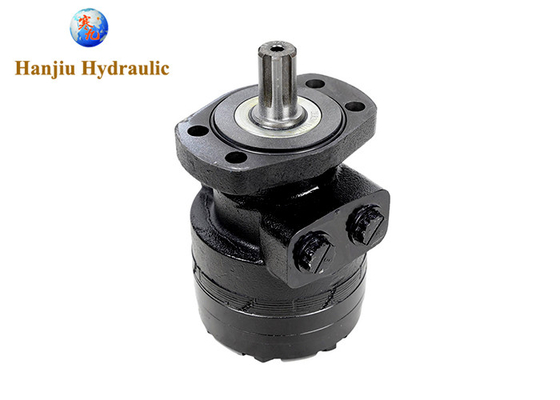

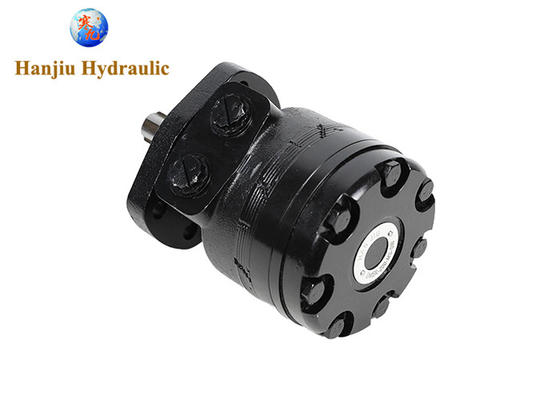

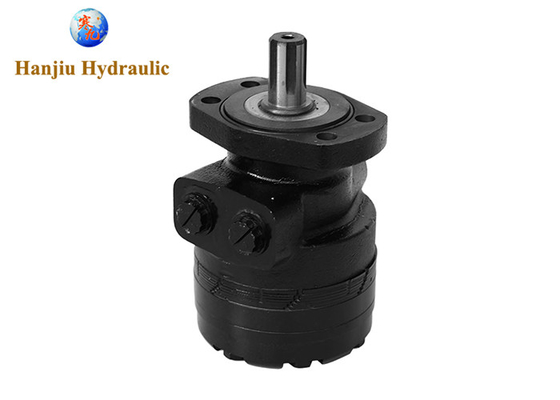

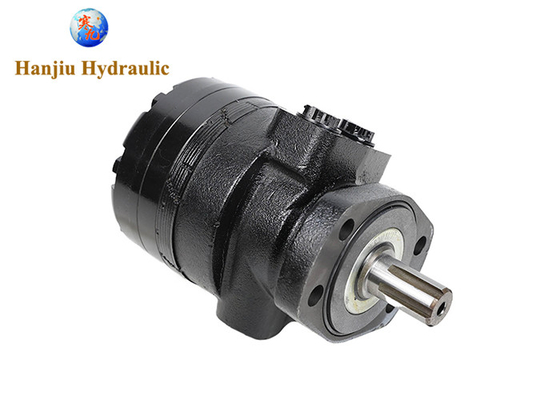

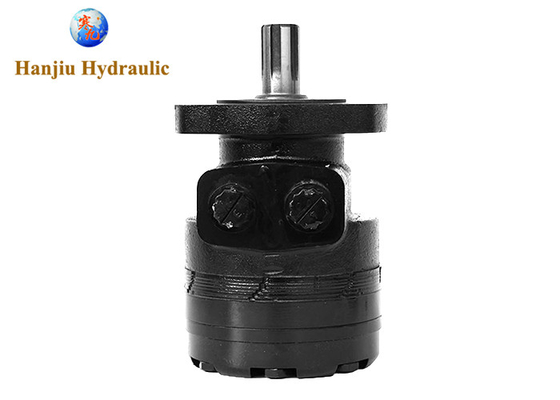

BMER-200-MS-SW BMER Series Hydraulic Motor Standard 4 Bolt Mounting with 25.4mm SAE 6B Shaft
Quicke review:
Model: BMER-200-MS-SW
Displacement: 200 ml/r
Flange: 4-bolt
Rotation :Standard
Specification:
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
BMER-2 Series Hydraulic Motors:
The BMER-2 Series features a Rolortorc gear set with high speed to distribute flow and high pressure. These motors are available with a variety of options to enable versatile operation depending on application requirements. Output shaft tapered roller bearings allow for high axial and radial forces, providing smooth operation during low pressure start-up and high pressure operation. The lightweight, structurally advanced motors are manufactured to the requirements of the ISO 9000-2000 quality system.
Description:
The Hanjiu BMER Series mid-size motors offer a perfect balance between price and performance, producing high torque at a reasonable cost. BMER motors perform well in a wide range of applications, especially low flow, high pressure applications. BMER motors exhibit smooth rotation throughout the speed conversion process, and the combination of shaft, bracket and displacement allows them to be configured to nearly any application requirement.
BMER motors feature a roller gear set design combined with a pressure balance plate. During startup, pressure causes the balance plates to flex toward the rotor, greatly improving volumetric efficiency. When the motor reaches operating pressure, the balance plates relax, allowing the rotor to turn freely, improving mechanical efficiency. Transmitting this power to the output shaft is a heavy-duty drive link that receives full-flow lubrication during operation for extended life.
Features:
n In-rotor valve design distributes oil efficiently and reduces overall motor length.
n Pressure-compensated balance plates improve volumetric efficiency at low flows and high pressures.
n Heavy-duty drive links receive full-flow lubrication during operation for extended life.
n High-pressure shaft seals eliminate the need for case drains and provide superior seal life and performance.
