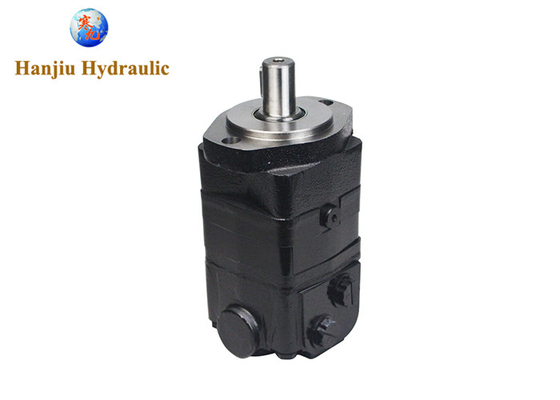

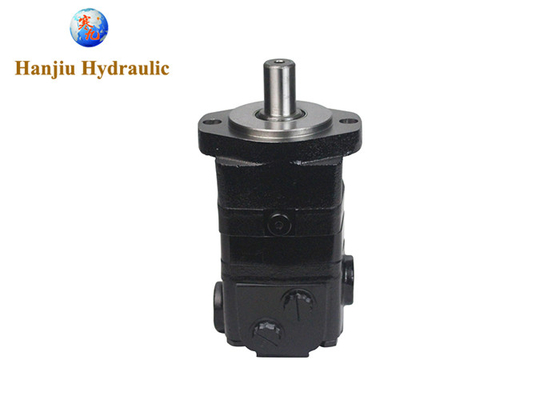

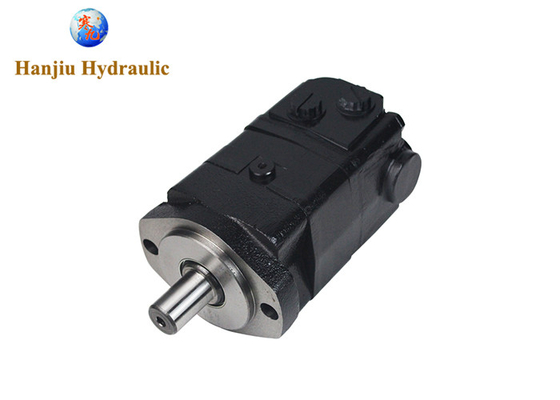

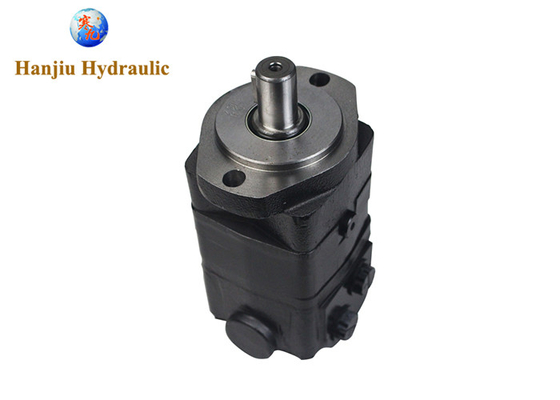

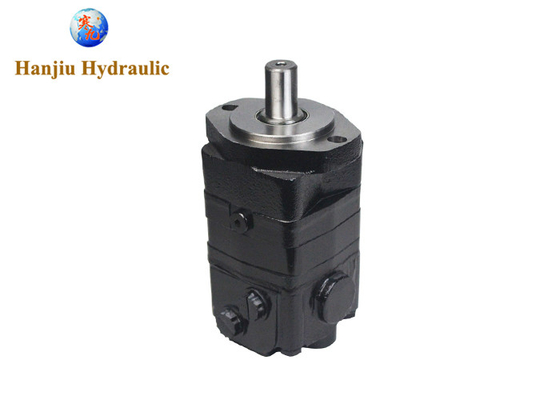

BMSY Hydraulic Motor, BMSY-125-E2-D-SU, 125 ml/r, 2 bolt flange, 25.4mm shaft, 7/8-14 UNF port, standard rotation

Large Image : BMSY Hydraulic Motor, BMSY-125-E2-D-SU, 125 ml/r, 2 bolt flange, 25.4mm shaft, 7/8-14 UNF port, standard rotation

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMSY-125-E2-D-SU

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to ask
Packaging Details:	Box, Pallet
Delivery Time:	25 - 35 work days
Payment Terms:	L/C, D/A, T/T, Western Union, Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Item:

Hydraulic Motor

Type:

Low Speed High Torque

Flange:

2 Hole, Rhomb

Shaft:

Cylindrical

Highlight:

2 bolt flange Hydraulic Motor

25.4mm shaft Hydraulic Motor

BMSY Hydraulic Motor, BMSY-125-E2-D-SU, 125 ml/r, 2 bolt flange, 25.4mm shaft, 7/8-14 UNF port, standard rotation

BMSY introduction:

This motor is a hydraulic disc motor, because it's widely used on kind of drills of Agricultural,Farm, Construction, Industrial and heavy machineries. it has numerous applications at any rolling, lifting, conveying applications. It's also called orbit hydraulic motor, or orbital motor, or Low Speed High Torque type motor, also disc valve hydraulic motors.

Main Specifications:

Type		BMSY BMSE 80	BMSY BMSE 100	BMSY BMSE 125	BMSY BMSE 160	BMSY BMSE 200	BMSY BMSE 250	BMSY BMSE 315	BMSY BMSE 375
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	200
Max. speed (rpm)	int.	988	900	720	560	450	360	280	240
Max. torque (N·m)	cont.	190	240	310	316	400	450	560	536
	int.	240	300	370	430	466	540	658	645
	peak	260	320	400	472	650	690	740	751
Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11.8
Max. output (kW)	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	17
Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	10
	int.	21	21	21	21	16	16	14	12
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	14
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

BMSY
BMSYS
160
BMSY
BMSYS
80
BMSY
BMSYS
100
BMSY
BMSYS
125
BMSY
BMSYS
200
BMSY
BMSYS
250
BMSY
BMSYS
315
BMSY
BMSYS
400
BMSY
BMSYS
475

BMSY Hydraulic Motor, BMSY-125-E2-D-SU, 125 ml/r, 2 bolt flange, 25.4mm shaft, 7/8-14 UNF port, standard rotation 0

BMSY Hydraulic Motor, BMSY-125-E2-D-SU, 125 ml/r, 2 bolt flange, 25.4mm shaft, 7/8-14 UNF port, standard rotation 1

BMSY Hydraulic Motor, BMSY-125-E2-D-SU, 125 ml/r, 2 bolt flange, 25.4mm shaft, 7/8-14 UNF port, standard rotation 2

More flange, shaft, oil ports, displacement can be provided as below:

BMSY Hydraulic Motor, BMSY-125-E2-D-SU, 125 ml/r, 2 bolt flange, 25.4mm shaft, 7/8-14 UNF port, standard rotation 3

BMSY Hydraulic Motor, BMSY-125-E2-D-SU, 125 ml/r, 2 bolt flange, 25.4mm shaft, 7/8-14 UNF port, standard rotation 4

BMSY Hydraulic Motor, BMSY-125-E2-D-SU, 125 ml/r, 2 bolt flange, 25.4mm shaft, 7/8-14 UNF port, standard rotation 5

BMSY Hydraulic Motor, BMSY-125-E2-D-SU, 125 ml/r, 2 bolt flange, 25.4mm shaft, 7/8-14 UNF port, standard rotation 6
