| Item: | Directional Control Valve | Model: | MP80 |
|---|---|---|---|
| Control Type: | Open Center | Flow Rate: | 80 LPM |
| Max Flow: | 90 LPM | Max Pressure: | 250 Bar |
| Highlight: | 80LPM Monoblock Hydraulic Control Valve,Open Center Monoblock Hydraulic Control Valve,250Bar Monoblock Hydraulic Control Valve |
||

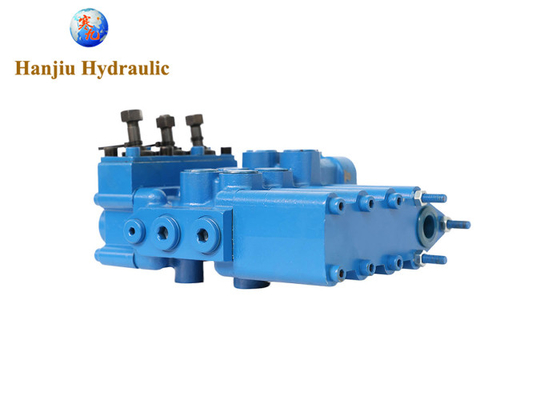

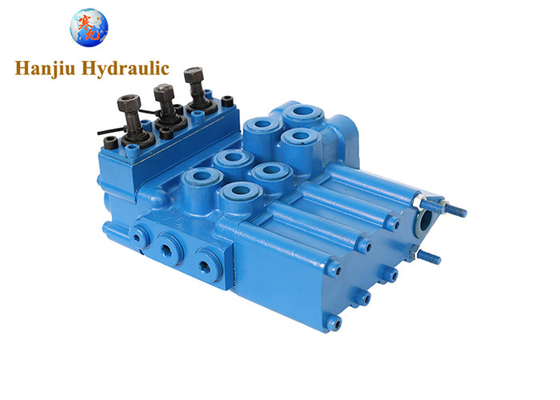

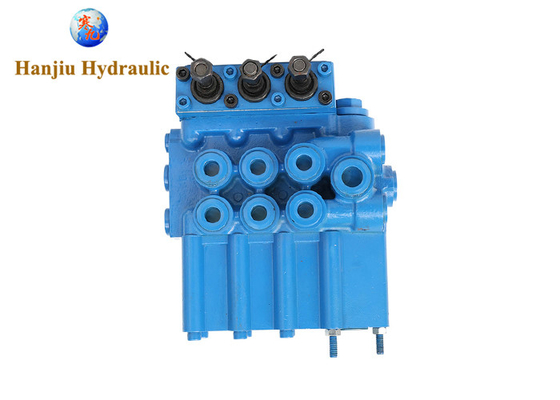

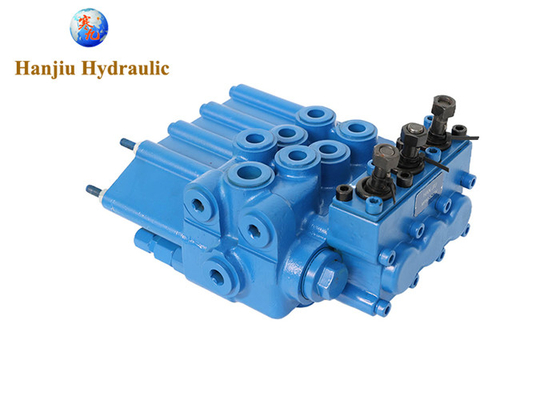

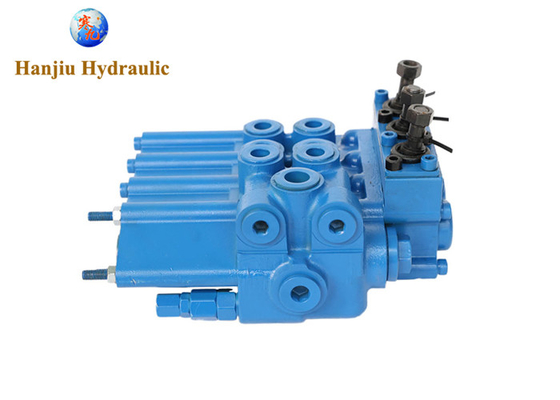

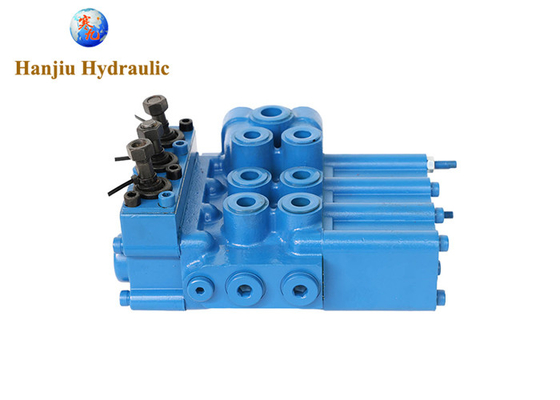

MP80/3 Series Monoblock Hydraulic Control Valve 80LPM 250Bar Open Center for Russian Tractors
Quick View:
Directional control valve MP 80 is used in hydraulic systems with flows up to 80 l/min. The segmented design makes the valve
flexible and easy to adapt to various applications
Features:
- Open centre
- Flow 80 l/min
- Rated inlet pressure 200 bar
- Maximum pressure at ports A and B 250 bar
Applications:
- Tractors
- Municipal vehicles
- Motor graders
Drawing:
More series available:
| Type | Number of sections | Nominal flow rate | Max. inlet pressure (P) | Max. work port press. (A/B) |
| l/min | bar | bar | ||
| p40 | 1-8 | 45 | 250 | 320 |
| p80 | 1-8 | 80 | 250 | 320 |
| Hssd5 | 1-8 | 45 | 290 | 320 |
| Hssd11 | 1-8 | 75 | 280 | 320 |
| zt12 | 1-8 | 45 | 290 | 320 |
| zt20 | 1-8 | 90 | 280 | 320 |
| Hsv6 | 1-3 | 45 | 250 | 320 |
| Hsdv10 | 1 | 90 | 300 | 350 |
