Product Details:
Payment & Shipping Terms:
|
| Item: | Monoblock Valve | Material: | Cast Iron |
|---|---|---|---|
| Apply To: | Tractors,loaders | Spool: | 4 Banks |
| Max Operation Pressure: | 250 Bar | Control Type: | Electric Control Type |
| Highlight: | 4P40DC Solenoid Operated Control Valve,ES3 Solenoid Operated Control Valve,12VDC Solenoid Operated Control Valve |
||

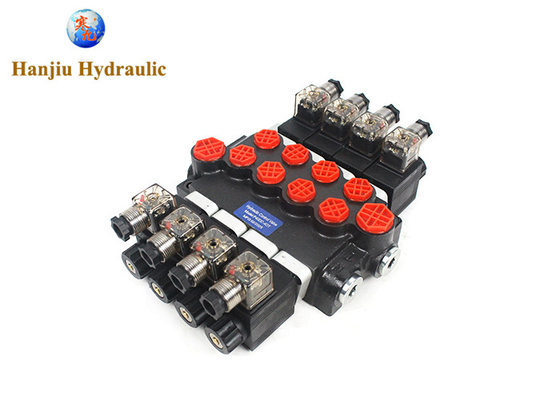

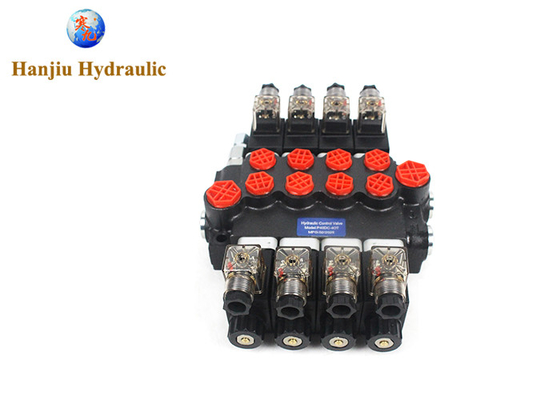

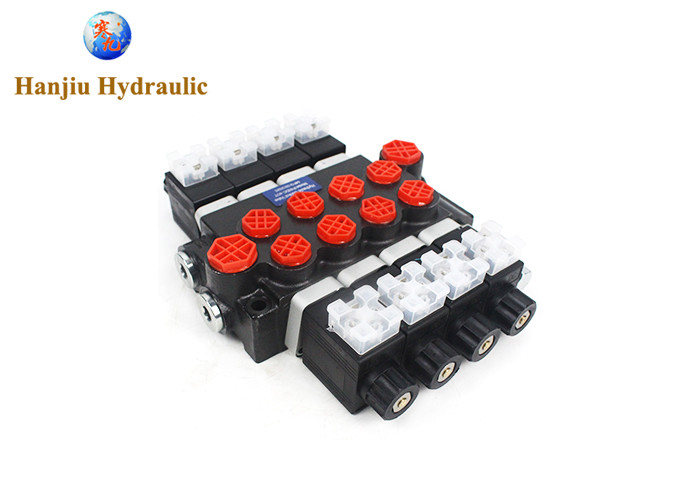

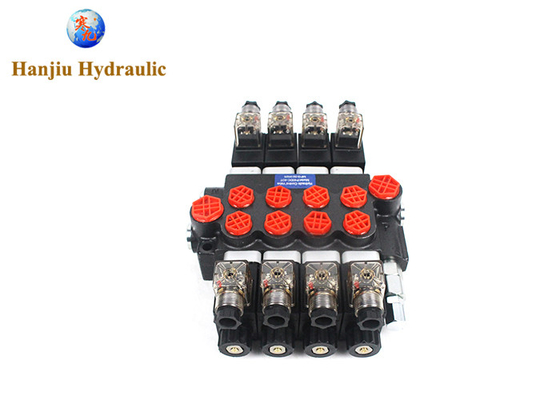

04Z50-AAAA-ES3-12VDC-S Solenoid Operated Control Valve 4P40DC Electrohydraulic valve
Solenoid direct control with spring return to neutral position.
Needs special spools and special body P40DC=Z50
Product details:
04Z50-AAAA-ES3-12VDC-S =P40-4--200-G08-C13ST1D1--G06-G08-12V
flow rate:40liters
spool type:4spools
pressure:200bar
inlet port:G1/2
working port:G3/8
control: 3position double acting
outlet port:G1/2
voltage:12VDC
Control type:
electro-hydraulic,solenoid
Circuit type: parallel
Application :
Cranes, Telescopic boom fork lifts, Back-hoe Excavators and Compactors,Sanitation Vehicles
| flow rate | 40 liters |
| number of spools | 4 banks |
| inlet section valve | side inlet, with relief valve |
| relief valve set pressure | 200bar |
| inlet port size | G1/2 |
| spool type | 3 positon, double acting |
| handle side arrangement | standard type |
| spool cap side arrangement | 3position, spring return,manual control,detent control, |
| working section arrangement | standard type |
| work port size | G3/8 |
| outlet section type | top outlet,side |
| outlet port size | G1/2 |
similar order code
| Z50D-ES3-12VDC-G |
| Z50D-ES1-12VDC-G |
| Z50-A-ES3-12VDC-G-1/2 |
| Z50-A-ES3-12VDC-NPTF |
| Z50D-ES3-24VDC-G |
| Z50-A-ES3-24VDC-G |
| Z50-B-ES3-12VDC-G |
| Z50-B-ES3-24VDC-G |
| Z50-C-ES3-12VDC-G |
| 07Z50-7*A-ES3-24VDC-G |
| Z50-A-ES3-12VDC-G |
| 05Z50-AAAAA-ES3-24VDCG |
| 05Z50-AAAAA-ES3-12VDCG |
| 02Z50-AA-ES3-12DC-S |
| 02Z50-AA-ES3-12V-NPTF |
| 05Z50-AACCC-ES3-12VDCG |
| 06Z50-2*A1(2*AES3)2*A1 |
| 06Z50-2*JY(2*AES3)2*JY |
Different types
As a core component in a hydraulic system, the stability and reliability of the hydraulic directional valve is critical to the operation of the entire system. Through regular maintenance and repair, as well as effective treatment of common failures, you can ensure that the hydraulic directional valves continue to play a good performance in the complex and changing conditions. If the directional valve is seriously damaged, it needs to be replaced in time, Hanjiu company produces and sells high-quality hydraulic valves, the quality of these products is guaranteed, after-sales service in place, if you need, you can go to the official website of Hanjiu company to browse the relevant information, look forward to working with you.
