Product Details:
Payment & Shipping Terms:
|
| Type: | Low Speed High Torque Motor | Material: | Cast Iron |
|---|---|---|---|
| Displacement: | 100ml/r | Flange: | 4 Bolts Square Flange |
| Port Size: | Metric Ports | Warranty: | 1 Year |
| Highlight: | 100cc low speed high torque motor,Charlynn 2k high torque motor,high torque motor With Metric Ports |
||

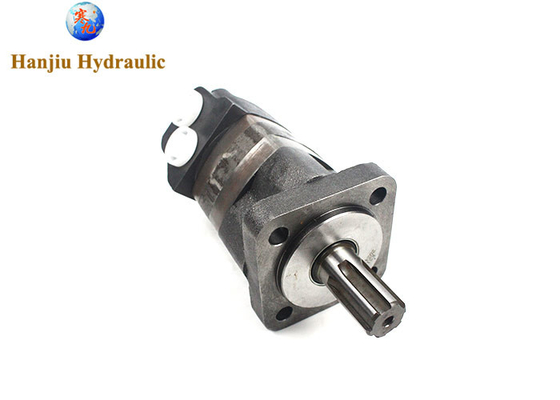

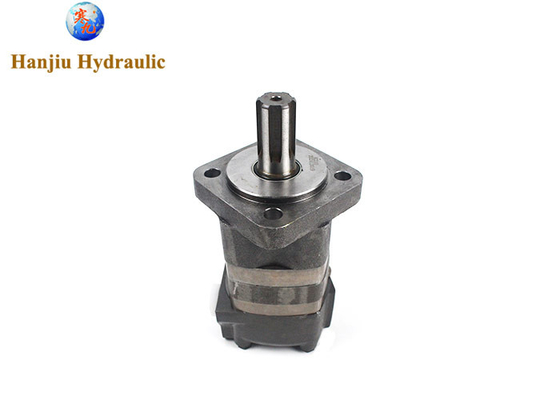

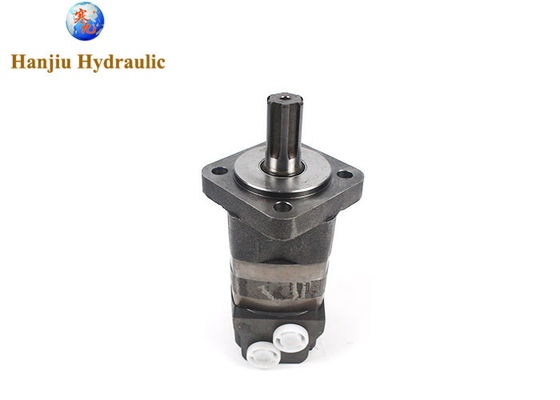

charlynn 2k low speed high torque motor,100cc, 4bolts square mounting, SAE 6B shaft with metric ports
Quick review:
Model No.: BMK2-100-E4-J1-M4
| displacement | 100ml/r |
| speed | 742-924 rpm |
| torque | 295-445 nm |
| mounting |
4×Φ13.5 Rhomb-flange Φ106.4,
pilot Φ82.5×6.4
|
| shaft |
φ30spline shaft ,shaft size: 6-30×25×8
|
Main specifiction:
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) |
65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||
Advantages of low-speed high-torque hydraulic motor
(1) High-torque hydraulic motors are suitable for low-speed, high-load work. Many heavy equipment, such as excavators, bulldozers, cranes, etc., need to perform tasks at low speeds. Hydraulic motors are able to provide a constant and stable high torque output at low speeds, ensuring that the equipment can efficiently complete its tasks.
(2) High-torque hydraulic motors are designed with a focus on providing powerful torque for heavy-duty and low-speed operation. Compared with traditional electric motors or internal combustion engine drives, hydraulic motors are able to provide higher torque at lower speeds, ensuring that the equipment is able to overcome larger loads and accomplish tougher tasks.
(3) The hydraulic system works in such a way that high torque hydraulic motors can work stably under high loads for long periods of time. Even during long periods of continuous operation, the hydraulic motors remain highly efficient, reducing the frequency of equipment downtime and improving productivity.
Low speed high torque hydraulic motors play an irreplaceable role in industry, agriculture and other fields due to their unique performance advantages and wide range of applications. With the continuous progress and innovation of technology, the performance of low speed high torque hydraulic motor will be further optimized and the application fields will be further broadened. Hanjiu company produces and sells high quality Low speed high torque hydraulic motor, if you want to know more about the professional knowledge, you can go to the official website of Hanjiu company to browse, Hanjiu company produces hydraulic pumps and spare parts. The products are sold all over the world and have gained good reputation and feedback. At present, we have agents in more than ten countries and regions around the world.
