BMSY-200-E4-FE-D BMSY Series Hydraulic Motors 200cc Sdantad Motor With 31.75mm 17T Shaft

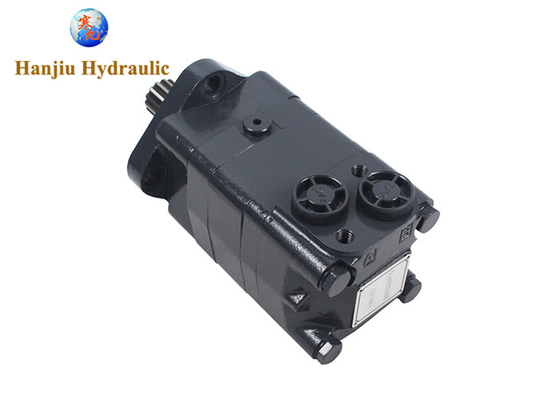

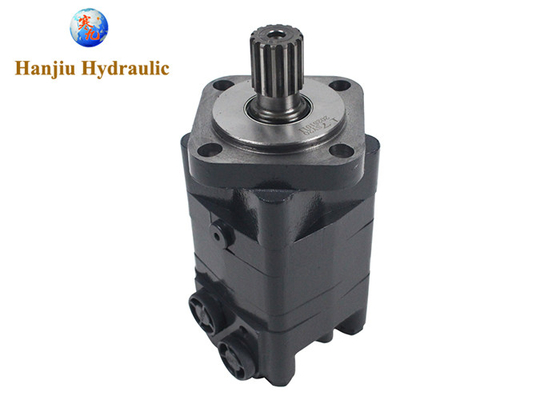

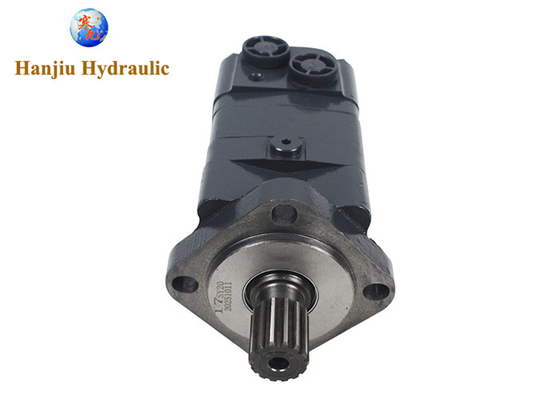

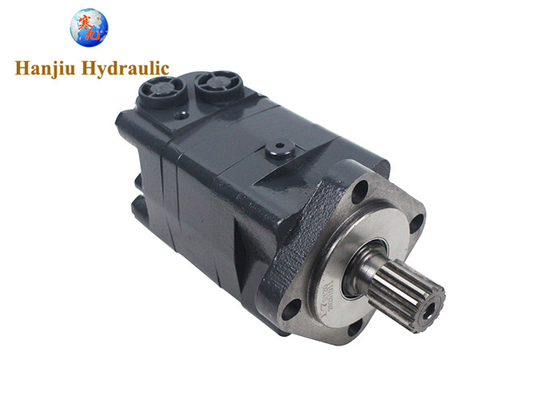

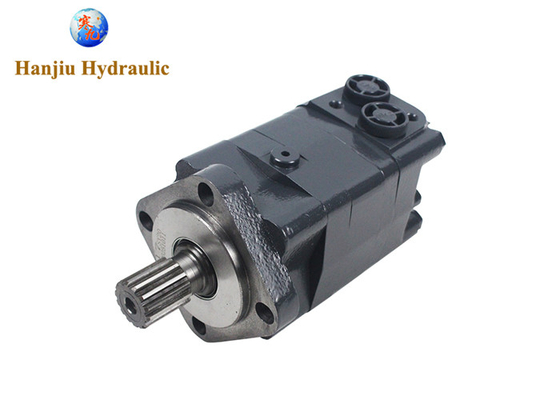

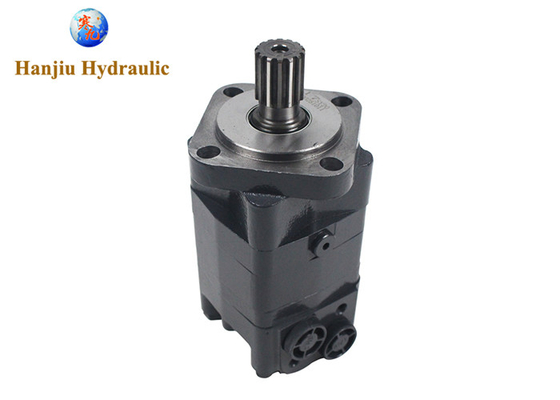

Large Image : BMSY-200-E4-FE-D BMSY Series Hydraulic Motors 200cc Sdantad Motor With 31.75mm 17T Shaft

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE, ISO9001
Model Number:	BMSY-200-E4-FE-D

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the selle to get the best offer
Packaging Details:	Box, carton, pallet
Delivery Time:	35 work days
Payment Terms:	T/T, Western Union, Payple
Supply Ability:	70000 pieces per year

Contact Now

Detailed Product Description

Product:

Hydraulic Motor

Model No.:

BMSY-200-E4-FE-D

Displacement:

200 Cc

Brand:

Hanjiu

Highlight:

31.75mm Hydraulic Motors

200cc Hydraulic Motors

BMSY Series Hydraulic Motors

BMSY-200-E4-FE-D BMSY Series Hydraulic Motors 200cc Sdantad Motor with 31.75mm 17T Shaft

Quick review:

Model No.	BMSY-200-E4-FE-D
Shaft	31.75mm 17T Shaft
Geometric displacement	200 cm³

Specification:

Main Specifications:

Type		BMS BMSE 80	BMS BMSE 100	BMS BMSE 125	BMS BMSE 160	BMS BMSE 200	BMS BMSE 250	BMS BMSE 315	BMS BMSE 375
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	200
Max. speed (rpm)	int.	988	900	720	560	450	360	280	240
Max. torque (N·m)	cont.	190	240	310	316	400	450	560	536
	int.	240	300	370	430	466	540	658	645
	peak	260	320	400	472	650	690	740	751
Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11.8
Max. output (kW)	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	17
Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	10
	int.	21	21	21	21	16	16	14	12
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	14
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

BMSY-200-E4-FE-D BMSY Series Hydraulic Motors 200cc Sdantad Motor With 31.75mm 17T Shaft 0

Dimentions:

BMSY-200-E4-FE-D BMSY Series Hydraulic Motors 200cc Sdantad Motor With 31.75mm 17T Shaft 1

More BMSY series hydraulic motor available:

BMSY 80	BMS 80
BMSY 100	BMS 100
BMSY 125	BMS 125
BMSY 160	BMS 160
BMSY 200	BMS 200
BMSY 250	BMS 250
BMSY 315	BMS 315
BMSY 400	BMS 400
BMSY 475	BMS 475

BMSY-200-E4-FE-D BMSY Series Hydraulic Motors 200cc Sdantad Motor With 31.75mm 17T Shaft 2

More hydraulic motors available:

BMSY-200-E4-FE-D BMSY Series Hydraulic Motors 200cc Sdantad Motor With 31.75mm 17T Shaft 3

About Hanjiu:

Hanjiu technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China, we have the most completely range of them, matching Danfss/ M+S/ Charlynn/ White/ Parker... with fast leading time, excellent price and best service. Our aim is to make your hydraulic system is easy and affordable!
