Product Details:
Payment & Shipping Terms:
|
| Type: | Low Speed High Torque Motor | Material: | Cast Iron |
|---|---|---|---|
| Displacement: | 400ml/r | Flange: | 2 Bolt Standard Flange |
| Port Size: | Manifold Ports | Drain Line: | 7/16-20UNF |
| Speed: | 191-287 Rpm | Torque: | 775-925 Nm |
| Highlight: | 24.0 Cu In Char-Lynn 104-1044 Motor,Side Ports Hydraulic Motor,Hydraulic Low Speed High Torque Motor |
||

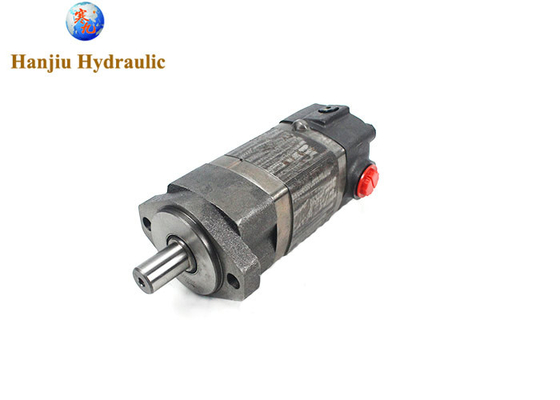

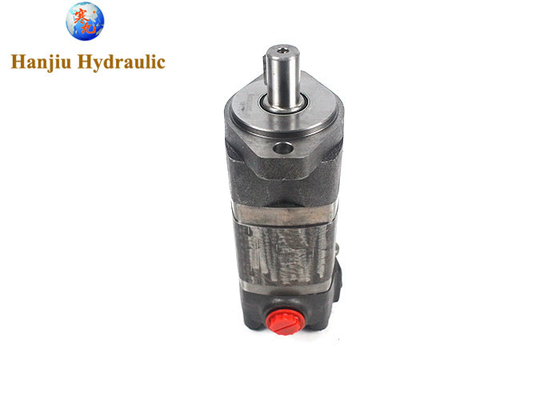

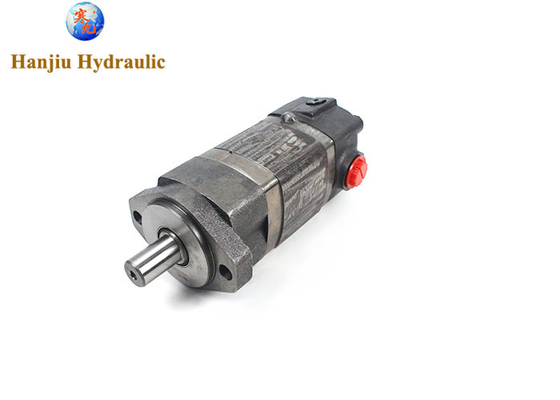

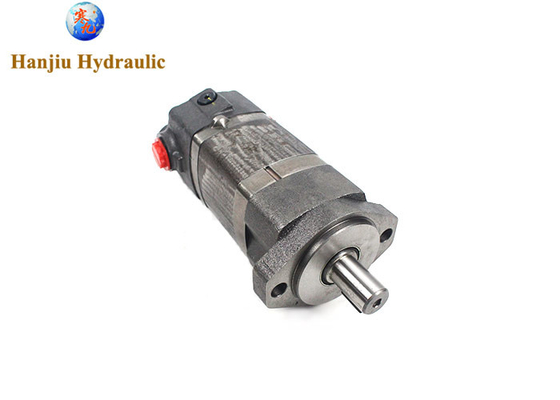

24.0 cu in Char-Lynn 104-1044 Hydraulic Motor side ports low speed high torque motor
Quick review:
Model No.: BMK2-315= 104-1044-006
| displacement | 400ml/r |
| speed | 191-287 rpm |
| torque | 775-925 nm |
| mounting |
2 Bolt SAE A Flange
|
| shaft | Straight key shaft |
Main specifiction:
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) |
65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||
More BMK2 motor, BMK2 - Orbital Motor (Displacement 65 – 500 CC) available:
Application:
Geroler motors are a type of hydraulic motor known for their high torque output at low speeds. This makes them ideal for various heavy-duty applications where significant rotational force is required. Here are some common applications of Geroler motors
Construction Equipment
Excavators The powerful torque of Geroler motors is essential for digging and lifting heavy loads.
Cranes Geroler motors provide the necessary force for lifting and moving heavy objects.
Drilling rigs The high torque output is ideal for drilling into the ground.
Agricultural Machinery
Tractors Geroler motors power the various implements used in agriculture, such as plows, harrows, and balers.
Harvesters The high torque is required for cutting, threshing, and transporting crops.
Industrial Machinery
Presses Geroler motors provide the force needed for pressing and forming materials.
Conveyors The high torque can be used to move heavy loads along conveyor belts.
Mixers Geroler motors are used to power the mixing blades in various industrial processes.
Marine Applications
Winches Geroler motors are used to power winches for lifting and lowering heavy objects.
Steering systems The high torque can be used to turn the rudders of large ships.
Mobile Equipment
Forklifts Geroler motors provide the power for lifting and moving heavy loads.
Aerial work platforms The high torque is needed to lift the platform to high altitudes.
Other Applications
Oil and gas industry Geroler motors are used in various applications, such as pumping and drilling.
Mining industry The high torque is required for moving heavy equipment and materials.
Manufacturing Geroler motors are used in various manufacturing processes, such as metalworking and plastics processing.
These are just a few examples of the many applications of Geroler motors. Their versatility and high torque output make them a valuable component in a wide range of industries.
