| Item: | Monoblock Valve | Material: | Cast Iron |
|---|---|---|---|
| Apply To: | Sanitation Vehicles | Spool: | 3 Spools |
| Max Operation Pressure: | 250 Bar | Control Type: | Electric Control Type |
| Highlight: | P40 Series Electric Hydraulic Control Valve,Sanitation Vehicles Electric Hydraulic Control Valve,P40 Series Power Beyond Option Valve |
||

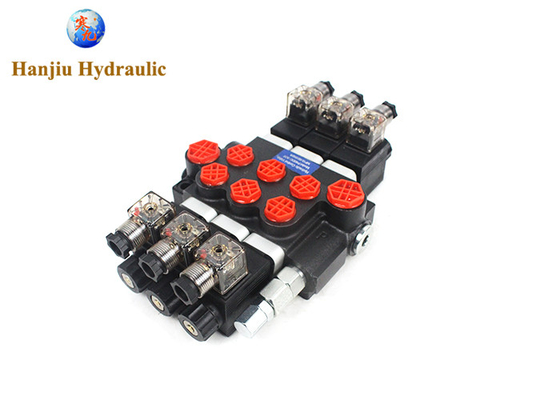

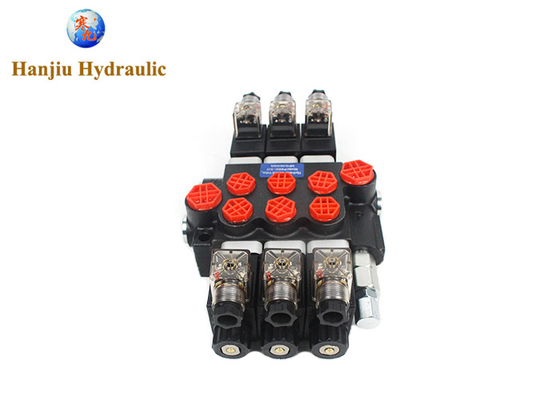

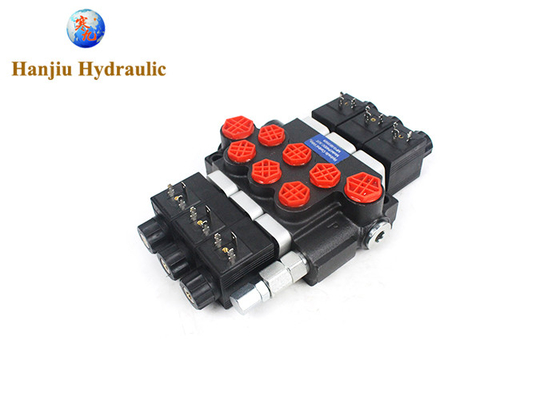

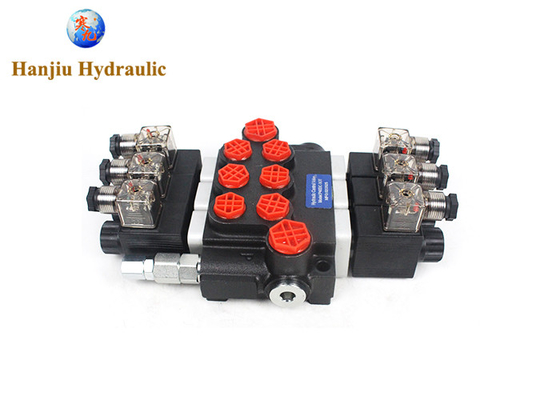

P40 Series Power Beyond Option P40 Electric and Hydraulic Control Valve for Sanitation Vehicles
Solenoid direct control with spring return to neutral position.
Needs special spools and special body P40DC=Z50
3P40DC=03Z50-A-ES3-12VDC-G
Control type:
electro-hydraulic,solenoid
Circuit type: parallel
Application :
Cranes, Telescopic boom fork lifts, Back-hoe Excavators and Compactors,Sanitation Vehicles
| flow rate | 40 liters |
| number of spools | 3 spools |
| inlet section valve | side inlet, with relief valve |
| relief valve set pressure | 200bar |
| inlet port size | G1/2 |
| spool type | 3 positon, double acting |
| handle side arrangement | standard type |
| spool cap side arrangement | 3position, spring return,manual control,detent control, |
| working section arrangement | standard type |
| work port size | G3/8 |
| outlet section type | top outlet,side |
| outlet port size | G1/2 |
Different types
