Product Details:
Payment & Shipping Terms:
|
| Item: | Hydraulic Valve | Model No.: | SD8-6 |
|---|---|---|---|
| Flow: | 80 LPM | Manufacturer: | Hanjiu |
| Material: | Cast Iron | Warranty: | 12 Months |
| Highlight: | Industrial Solutions Hydraulic Supplies,Manual Hydraulic Supplies,80 LPM Hydraulic Supplies |
||

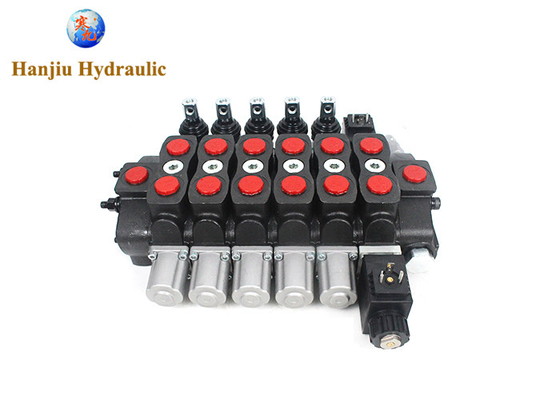

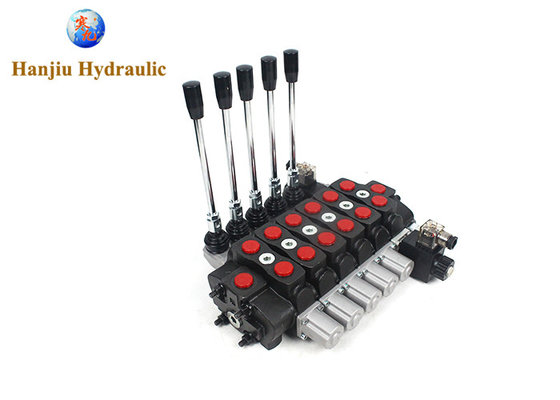

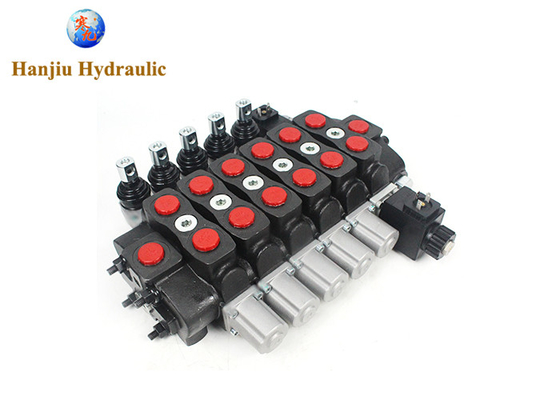

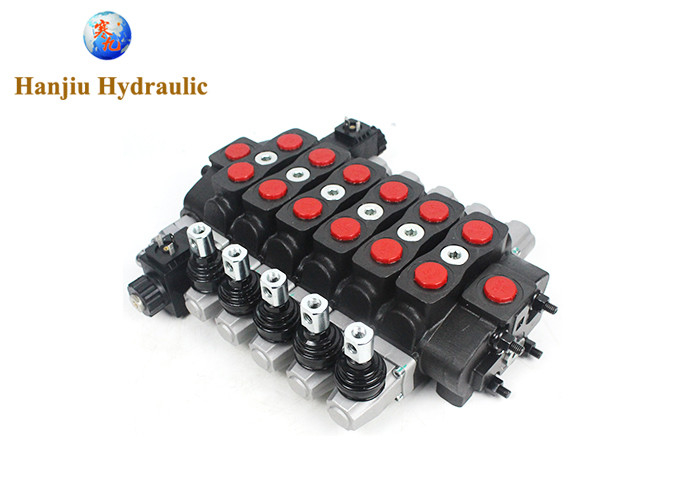

SD8 - 80 LPM | Hydraulic Supplies and Industrial Solutions, Manual with electric valve
Product Introduction:
SD8 Valve is a reliable and durable hydraulic valve designed for superior performance. It is compact, resistant to high pressure and has a long service life, making it an ideal choice for a wide range of industries.
Customization Service:
This versatile valve offers customizable options, including hydraulic system selection, valve body customization and multiple control methods.
Technical Information:
|
Control Method
|
Manual+Electric |
| Presure Medium | Mineral oil based hydraulic oil |
| Nominal Flow | 80 L/min (21 gpm) |
| Viscosity Range | 15 CST- 75 CST |
| Operating Pressure | 315 bar (4568 psi) |
| Ambient Temp | -40°C to +80°C (-40°F to +176°F) |
| Valve Structure | Sectional type Valve |
| Valve Sections | 6 Bank |
| Rustproof Level | Neutral salt spray test, 48hours |
Description:
Introduction to SD8 directional valve.
SD8 directional valve is an advanced hydraulic component with compact structure, high pressure resistance and long service life. Designed to meet the stringent requirements of various industries, this sectional hydraulic valve has excellent performance and high reliability.
Hydraulic system:
SD8 directional valve has two hydraulic systems: open center and closed center. This versatility enables it to be seamlessly integrated into different hydraulic devices, ensuring optimal performance and efficiency in various applications.
Customizable options:
To meet individual customer requirements, each valve body can be equipped with overflow valves, supplementary valves and combination valves. This customization feature enables users to tailor the functionality of the valve to their specific needs, ensuring an enhanced user experience and improved system performance.
Multiple control methods:
SD8 directional valve provides comprehensive control methods to meet different application requirements. It supports manual control, pneumatic control, electro-hydraulic control, solenoid control, electro-pneumatic control, joystick control, remote control, etc. This wide range of control options ensures compatibility with different systems and enables efficient operation according to specific requirements.
Wide range of applications:
SD8 directional valve is widely used in hydraulic systems in various industries. Whether it is construction machinery, sanitation machinery, mining machinery, agricultural machinery or other types of machinery, the valve has proved its reliability and effectiveness. It is a reliable component for optimizing hydraulic systems and improving overall performance.
In short, SD8 directional valve is an excellent hydraulic component with compact structure, high pressure resistance and long service life. Its customizable options, diverse control methods and wide range of applications make it an ideal choice for hydraulic systems in construction, sanitation, mining, agriculture and other industries. Experience the reliability and performance of SD8 directional valve and push your hydraulic system to new height
Features:
Simple, Compact and heavy duty designed sectional valve from 1 to 14 sections for open and closed center hydraulic systems.
Fitted with a main pressure relief valve and a load check valve on every working section.
Available in manual control only.
Optional carry-over port.
A wide range of port and circuit valves.
Intermediate sections for several types of circuit.
Diameter 18mm interchangeable spools.
Available with parallel, tandem or series circuit.
More valves:
| Product Series | Application equipment |
| DCV | Drilling rigs, cranes, flatbed trucks, special operation vehicles (sanitation trucks, garbage transport trucks, road sweepers), dump trucks, truck-mounted cranes and other construction machinery |
| P40/80/120 | Tractors, busy at both ends, flatbed trucks, truck-mounted cranes, mainly agricultural equipment |
| P81 | wood splitter |
| Walvoil SD5/8/11 | Same as P40, it can also be used on drilling rigs and truck-mounted cranes. |
| Bucher DS15 | Same as DCV, can replace part of DCV according to installation size according to flow pressure. |
| RD5100/5200/5300 | Tractors, busy at both ends, flatbed trucks, truck-mounted cranes, mainly agricultural equipment |
| HDCF50 | Corn harvester, wheat ear picker, large weeder, peanut harvest/fruit picking machine and other crop harvesting machinery |
| HSV6/9 | Modify the excavator, change the excavator movement and other machinery |
| HSGK | Special for scissor-type aerial work vehicles |
| ZT12/20 | Sprayer, can replace DCV40, P40/80 and other functions |
| CDB15/20 | Loaders, forklifts (oil forks), drilling rig traveling valves, drilling rig dismounting valves |
| DF50/80 | tractor |
| Product series with L | loader |
