Product Details:
Payment & Shipping Terms:
|
| Product: | Geroler Hydraulic Motor | Model No.: | BMV Motor |
|---|---|---|---|
| Displacement: | 400 Cc | Brand: | Hanjiu |
| Material: | Cast Iron | Warranty: | 1 Year |
| Highlight: | square mount Hydraulic Motor,BMV400 Hydraulic Motor,G1 manifold ports Hydraulic Motor |
||

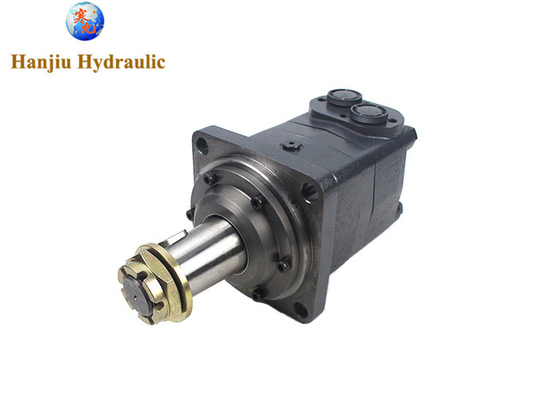

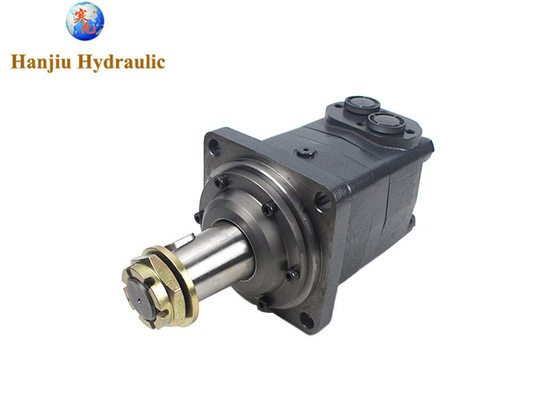

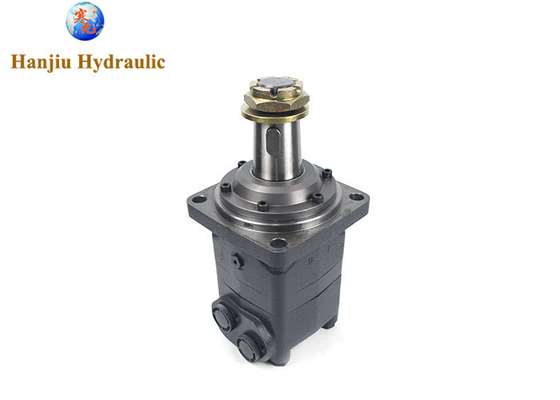

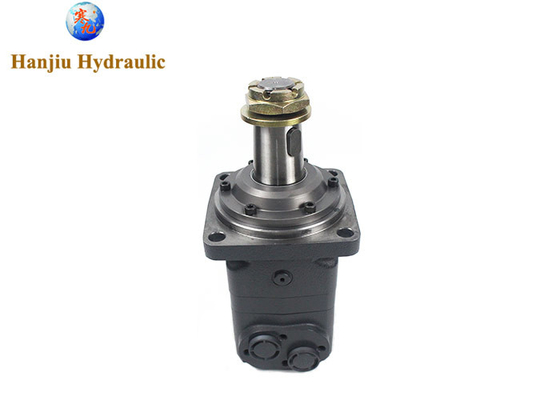

Hydraulic Motor MV400K,OMV400,BMV400,square mount 4 bolts, ø60 tapered 1:10 with G1 manifold ports
This series is the BMV series hydraulic motor
Model: BMV-400-4-T-D
Displacement: 400 ml/r
Flange: 4-Ø18 Square-flange Ø160, pilot Ø160X11
Shaft: Cone shaft Ø60, parallel key 16×10×32
Rotation :Standard
Main Specifications:
| Type | BMV 315 | BMV 400 | BMV 500 | BMV 630 | BMV 800 | BMV 1000 | |
| Geometric displacement (cm3 /rev.) | 333 | 419 | 518 | 666 | 801 | 990 | |
| Max. speed (rpm) | cont. | 510 | 500 | 400 | 320 | 250 | 200 |
| int. | 630 | 600 | 480 | 380 | 300 | 240 | |
| Max. torque (N·m) | cont. | 920 | 1180 | 1460 | 1660 | 1880 | 2015 |
| int. | 1110 | 1410 | 1760 | 1940 | 2110 | 2280 | |
| peak | 1290 | 1640 | 2050 | 2210 | 2470 | 2400 | |
| Max. output (kW) | cont. | 38 | 47 | 47 | 40 | 33 | 28.6 |
| int. | 46 | 56 | 56 | 56 | 44 | 40 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max. flow (L/min) | cont. | 160 | 200 | 200 | 200 | 200 | 200 |
| int. | 200 | 240 | 240 | 240 | 240 | 240 | |
| Weight (kg) | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
Application:
Key Applications
Construction Equipment
Excavators Driving tracks, swing mechanisms, and attachments.
Cranes Rotating and lifting operations.
Drilling rigs Powering drilling mechanisms and auxiliary functions.
Agricultural Machinery
Tractors Driving tracks or wheels, powering implements.
Harvesters Operating various components like feed systems and conveyors.
Industrial Machinery
Conveyors Providing power for belt or roller conveyors.
Mixers Driving mixing blades in various industrial processes.
Presses Applying force for various industrial applications.
Marine Applications
Winches Powering lifting and lowering operations.
Steering systems Providing power for steering mechanisms.
Thrusters Generating propulsion for marine vessels.
Mobile Equipment
Forklifts Driving wheels and lifting masts.
Aerial work platforms Powering platform rotation and extension.
Specific Applications Based on Motor Characteristics
High torque, low-speed applications Excavator tracks, heavy-duty mixers.
Medium torque, medium-speed applications Conveyors, agricultural machinery components.
High-speed applications Some specialized orbital motors can be used in applications requiring higher speeds, such as certain pump drives.
Would you like to explore a specific application in more detail or discuss the selection of an orbital motor for a particular project.pls talk to me!
