| Item: | Hydraulic Motor | Type: | Low Speed High Torque |
|---|---|---|---|
| Flange: | Wheel Mounting | Shaft: | 35mm Cone-shaft |
| Material: | Cast Iron | Warranty: | 1 Year |
| Highlight: | 2900psi LSHT Motor,240RPM LSHT Motor,315cc LSHT Motor |
||

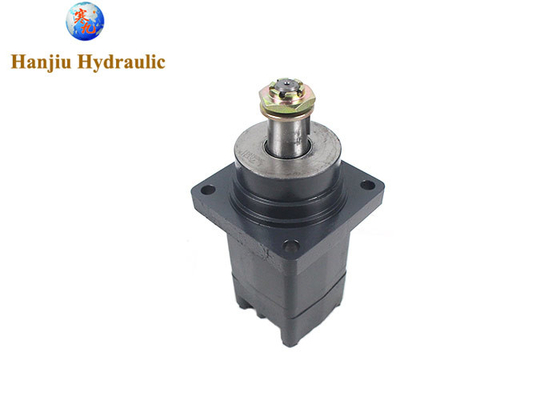

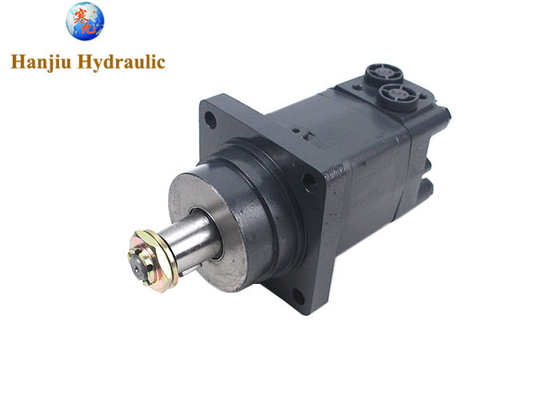

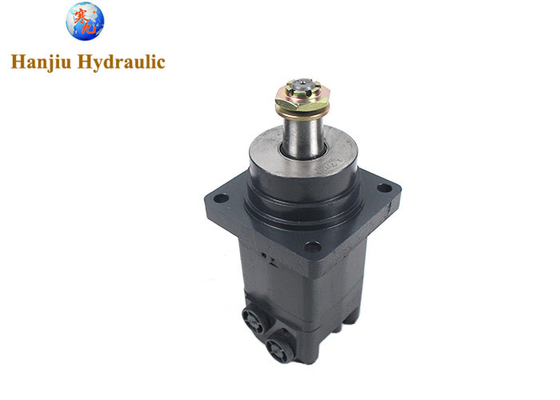

LSHT Motor, 315cc, 240RPM, 7787in-lb, 2900psi Differential, 19.81GPM, Wheel Mount, tapered shaft φ35mm Shaft, Side Ported, #10 SAE (5/8")
Product details:
model type:BMSY-315-WE-T1-S
displacement:315cc
flange: wheel mounting
shaft:35mm cone-shaft
ports:7/8-14UNF
Main Specification:
| Type | BMSY BMSE 80 |
BMSY BMSE 100 |
BMSY BMSE 125 |
BMSY BMSE 160 |
BMSY BMSE 200 |
BMSY BMSE 250 |
BMSY BMSE 315 |
BMSY BMSE 375 |
|
| Geometric displacement (cm3 /rev.) |
80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
More flange, shaft, oil ports, displacement can be provided as below:
The BMSY series motor adapts the advanced ROLORTORC gear set design with DISC distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. The output shaft tapered roller bearings permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure operation. These low weight advanced construction design motors are manufactured in accordance with the requirements of the ISO 9000-2000 quality system.
