Product Details:
Payment & Shipping Terms:
|
| Product: | Orbital Hydraulic Motor | Model No.: | 119-1047-003 |
|---|---|---|---|
| Manufacturer: | Hanjiu | Brand: | Hanjiu |
| Highlight: | Danfoss Char-Lynn Hydraulic Motor,119-1047-003 Hydraulic Motor,119-1047 Hydraulic Motor |
||

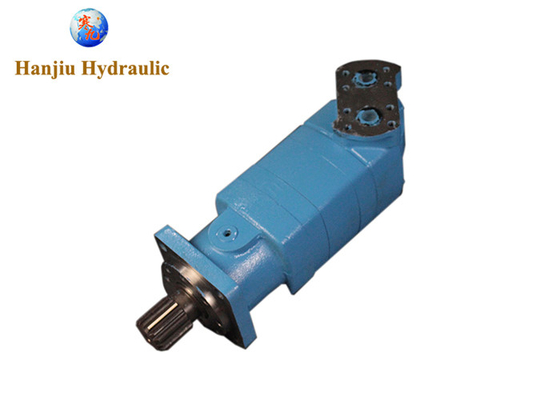

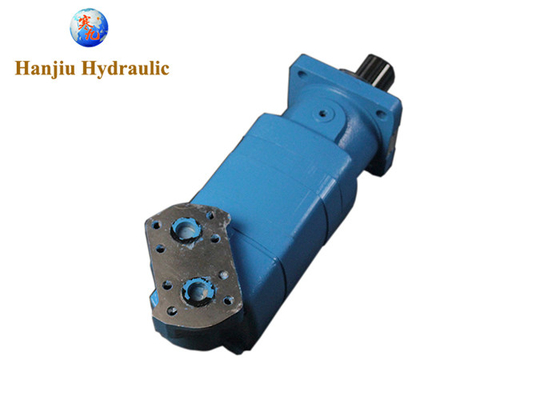

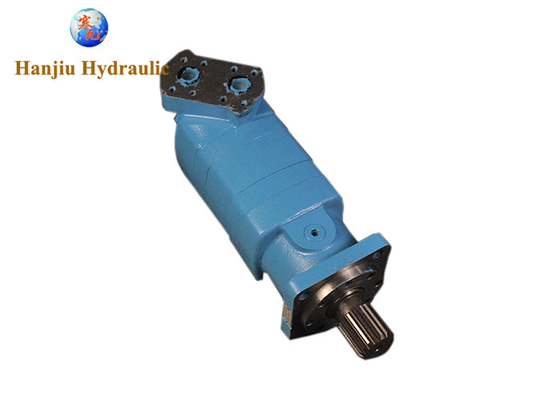

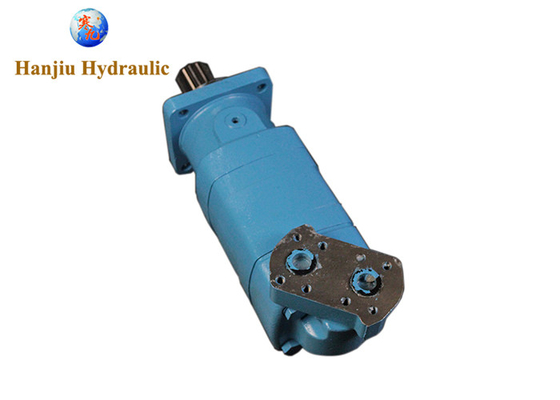

NEW OEM level 119-1047 119-1047-003 Danfoss Char-Lynn Hydraulic Motor replacement made in China
Quick review:
Hanjiu BMK10 = Danfoss Eaton Charlynn 10000 series
Model Number:
119-1047-003 119-1047
|
Characteristic
|
Value
|
| Model no. | 119-1047-003 |
| Manufacturer | Hanjiu |
| Fetures | Compatible with Danfoss Eaton Char-lynn |
| Drain Port Dimension |
9/16 - 18 UNF-2B SAE O-Ring port
|
| Geometric displacement [cm3/r [in3/r]] |
940.8 [57.41)
|
| Main port dimension |
1.25 inch drilled hole, 4 x 7/16 - 14 UNC-2B block mounting threads
|
| Main port style |
Sideport - staggered
|
| Main port thread type |
Split Flange
|
| Motor function |
Standard
|
| Motor Series |
10000 Series
|
| Motor size |
940
|
| Motor type |
Standard
|
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] |
127.0 x 13.8, 161.9, 16.8 [5.00 x 0.54, 6.38, 0.66]
|
| Mounting flange type |
4 Bolt - Square
|
Specification:
Main Specification
| Type | BMK10 350 |
BMK10 480 |
BMK10 665 |
BMK10 940 |
|
| Geometric displacement (cm3 /rev.) |
351 | 479 | 638 | 933 | |
| Max.speed (rpm) | cont. | 500 | 350 | 250 | 178 |
| int. | 790 | 560 | 400 | 280 | |
| Max.torque (N•m) | cont. | 1050 | 1480 | 2080 | 2750 |
| int. | 1400 | 1980 | 2600 | 3400 | |
| Max.pressure drop (MPa) |
cont. | 20.5 | 20.5 | 20.5 | 19 |
| int. | 27.5 | 27.5 | 26 | 24 | |
| Max.flow (L/min) | cont. | 170 | 170 | 170 | 170 |
| int. | 265 | 265 | 265 | 265 | |
*Continuous pressure:Max.value of operating motor continuously.
*Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
*Peak pressure:Max.value of operating motor in 0.6 second per minute.
We provide Char-Lynn Eaton Hydraulic Motor 10,000 Series aftermarket types. These hydraulic motors are very Low speed, high torque hydraulic motors. Long life under extreme operating conditions. The BMK10 series motor adapts the GEROLER gear set design with high speed distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. These low weight advanced construction design motors are manufactured in accordance with the requirements of ISO 9001-2000 quality system.
More BMK10 series to match Danfoss Eaton Charlynndrive motors
Hanjiu Technology Company production of LSHT hydraulic motors, a wide variety of types, their production of motors for the main markets of hydraulics including construction, agriculture, traditional industry, metallurgy, mining, shipbuilding and horticulture and other fields, Hanjiu company relies on its strong global distribution network to sell their products to various countries and regions, in many places can appreciate the Hanjiu technology hydraulic motors to provide fast and convenient services.
