| Product: | Orbital Hydraulic Motor | Model No.: | 119-1034-003 |
|---|---|---|---|
| Manufacturer: | Hanjiu | Brand: | Hanjiu |
| Highlight: | Danfoss Hydraulic Orbital Motors,Mobile Hydraulic Orbital Motors,119-1034-003 Hydraulic Orbital Motors |
||

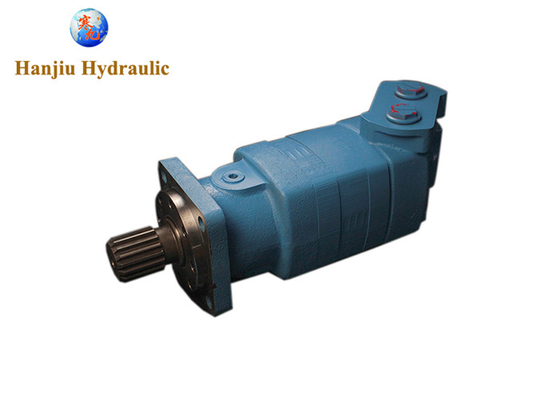

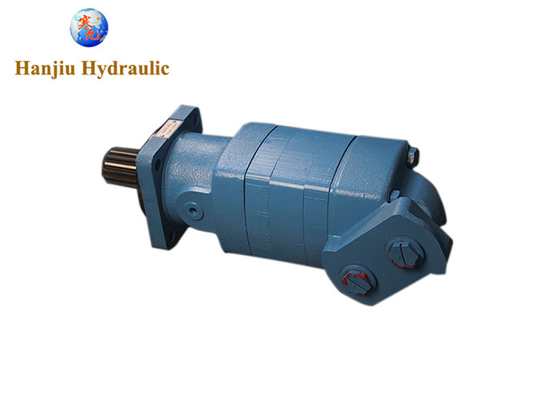

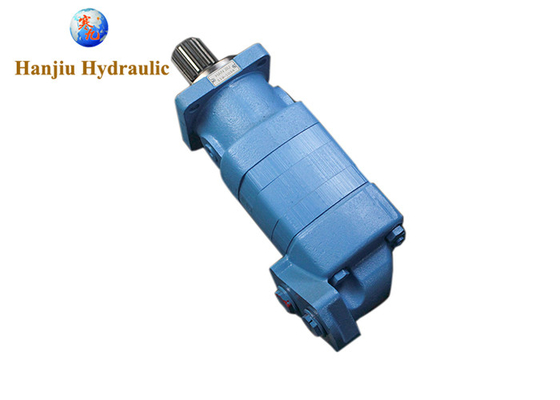

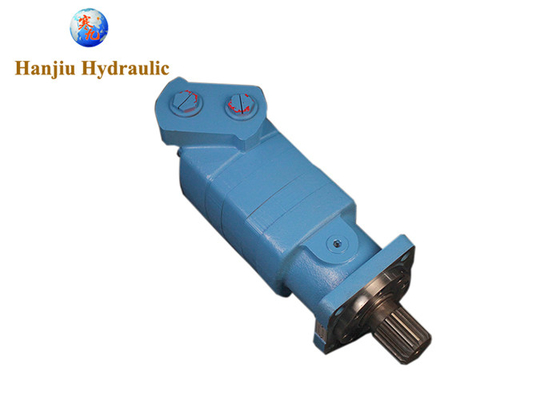

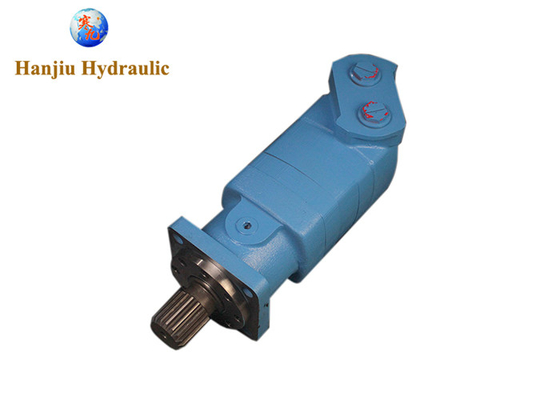

119-1034-003 119-1034 Danfoss Eaton Char-lynn replacement hydraulic orbital motors for Mobile application
Quick review:
Hanjiu BMK10 = Danfoss Eaton Charlynn 10000 series
Model Number:
119-1034-003 119-1034
|
Characteristic
|
Value
|
| Model no. | 119-1034-003 |
| Manufacturer | Hanjiu |
| Fetures | Compatible with Danfoss Eaton Char-lynn |
| Valve system |
Disc valve with valve drive
|
| Orbital gearwheel set type |
Geroler
|
| Motor size |
665
|
| Geometric displacement [cm3/r [in3/r]] |
665.3 [40.60)
|
| Motor type |
Standard
|
| Motor function |
Standard
|
| Mounting flange type |
4 Bolt - Square
|
| Mounting flange dimension |
127.0 x 13.8, 161.9, 16.8 [5.00 x 0.54, 6.38, 0.66]
|
| SHAFT TYPE |
Splined
|
| Shaft dimension |
Dia. 2 1/8 inch, 16T, 1/2 - 20 UNF-2B thread in shaft end
|
| Main port style |
Sideport - staggered
|
| Main port dimension |
1 5/16 - 12 UN-2B SAE O-Ring port
|
| Drain Port Dimension |
9/16 - 18 UNF-2B SAE O-Ring port
|
| Brake Release Port Dimension |
n/a
|
| Painted |
No
|
| Paint information |
n/a
|
| Special features hardware |
Standard
|
| Special Features Assembly |
Standard
|
| Dust seal |
Standard
|
Specification:
Main Specification
| Type | BMK10 350 |
BMK10 480 |
BMK10 665 |
BMK10 940 |
|
| Geometric displacement (cm3 /rev.) |
351 | 479 | 638 | 933 | |
| Max.speed (rpm) | cont. | 500 | 350 | 250 | 178 |
| int. | 790 | 560 | 400 | 280 | |
| Max.torque (N•m) | cont. | 1050 | 1480 | 2080 | 2750 |
| int. | 1400 | 1980 | 2600 | 3400 | |
| Max.pressure drop (MPa) |
cont. | 20.5 | 20.5 | 20.5 | 19 |
| int. | 27.5 | 27.5 | 26 | 24 | |
| Max.flow (L/min) | cont. | 170 | 170 | 170 | 170 |
| int. | 265 | 265 | 265 | 265 | |
*Continuous pressure:Max.value of operating motor continuously.
*Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
*Peak pressure:Max.value of operating motor in 0.6 second per minute.
We provide Char-Lynn Eaton Hydraulic Motor 10,000 Series aftermarket types. These hydraulic motors are very Low speed, high torque hydraulic motors. Long life under extreme operating conditions. The BMK10 series motor adapts the GEROLER gear set design with high speed distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. These low weight advanced construction design motors are manufactured in accordance with the requirements of ISO 9001-2000 quality system.
More BMK10 series to match Danfoss Eaton Charlynndrive motors
Hanjiu Technology Company production of LSHT hydraulic motors, a wide variety of types, their production of motors for the main markets of hydraulics including construction, agriculture, traditional industry, metallurgy, mining, shipbuilding and horticulture and other fields, Hanjiu company relies on its strong global distribution network to sell their products to various countries and regions, in many places can appreciate the Hanjiu technology hydraulic motors to provide fast and convenient services.
