Product Details:
Payment & Shipping Terms:
|
| Model No.: | HSSD4 | Warranty: | 1year |
|---|---|---|---|
| Material: | Cast Iron | Flow: | 45lt |
| Spool Function: | O/Y/A | Control Type: | Detent Return |
| Highlight: | High Pressure Control Monoblock Valves,3600 PSI Monoblock Valves,12 GPM Monoblock Valves |
||

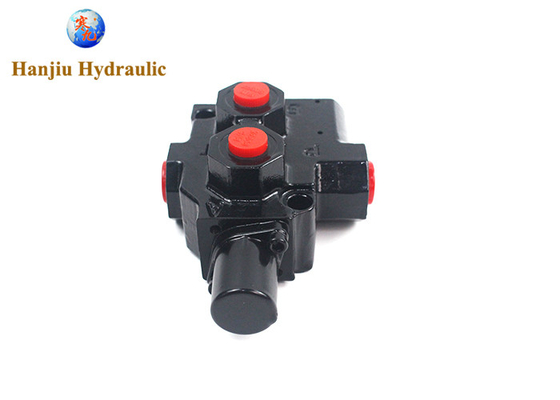

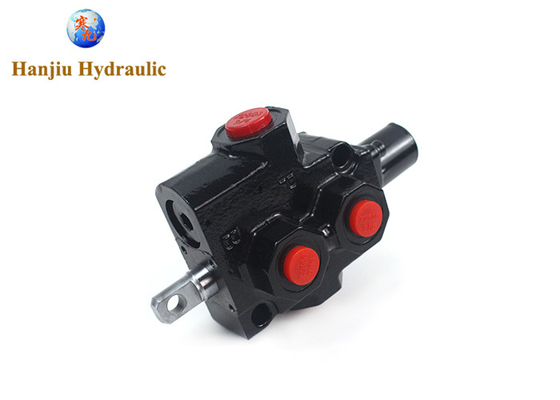

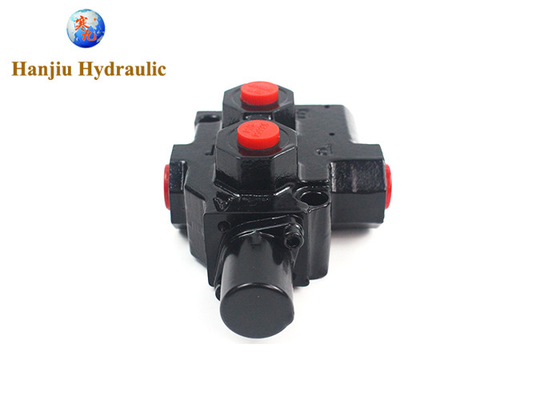

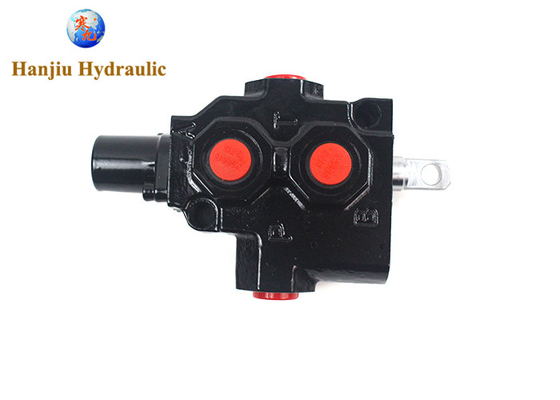

Simple, compact design, one-spool valve for open and closed center hydraulic systems
• Main pressure relief valve
• Optional rotary and detent kick-out controls
• Optional cable control • Interchangeable spools.
|
BRAND |
HANJIU |
|
VALVE TYPE |
HSSD4-O2W |
|
FLOW RATE (LPM) |
45L/min |
|
MAXIMUM WORKING PRESSURE (BAR) |
315bar |
|
Operating Viscosity Range |
15-75cst |
|
MAXIMUM OPERATING TEMPERATURE (C) |
100.00 |
|
MINIMUM AMBIENT OPERATING TEMPERATURE |
-40° |
|
MAXIMUM AMBIENT OPERATING TEMPERATURE |
80° |
|
MOUNTING TYPE |
Manual, Hydraulic,Pneumatic, Electro-pneumatic, Electro-hydraulic,Solenoid, Joystick, Joystick and Cable |
Product Features and Benefits:
Manual control for precise flow regulation
Monoblock construction for compact size and durability
High flow capacity of 40 L/min for efficient operation
Maximum pressure of 230 bar for handling high-pressure systems
Wide operating viscosity range of 15 - 75 mm²/s for compatibility with various fluids
Temperature range of -40°C to +60°C for use in harsh environments
Applications:
The SD4 Manual 1 Spool Monoblock Directional Valve is suitable for a variety of applications, including:
Material handling equipment
Construction machinery
Agricultural machinery
Industrial vehicles
Telehandlers
Forklifts
All-terrain cranes
Stackers
Aerial platforms
Motor graders
