| Item: | Hydraulic Valves | Material: | Cast Iron |
|---|---|---|---|
| Apply To: | Construction Application,Cranes,tractors | Spool: | 2 Spools |
| Max Operation Pressure: | 250 Bar | Control Type: | Manual Control +air Control |
| Highlight: | 4 positions Joystick Directional Control Valve,Manual Joystick Directional Control Valve,double acting Joystick Directional Control Valve |
||

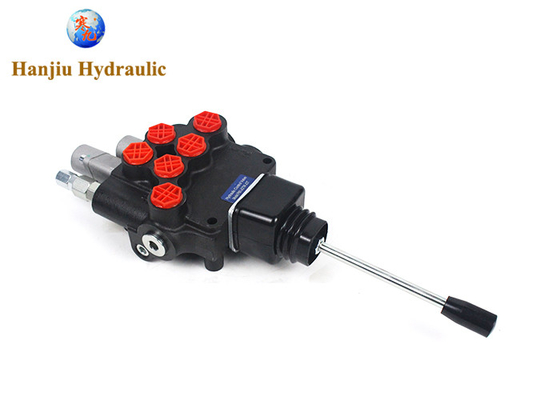

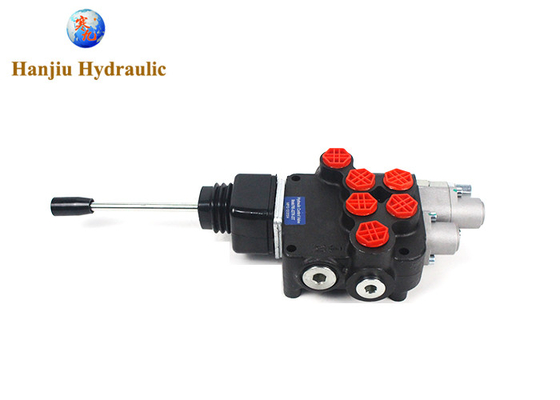

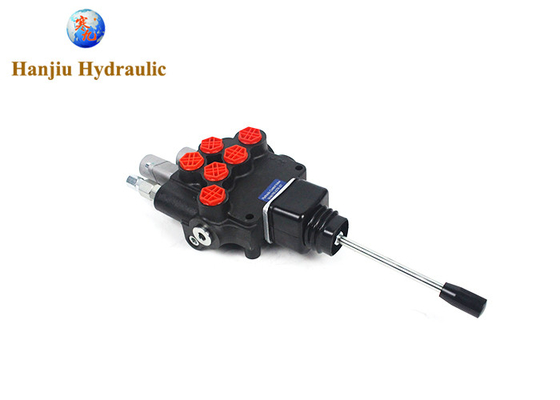

P80 Joystick Directional Control Valve 4 positions double acting manual control type
Introducing the P80 Joystick Directional Control Valve, a versatile and cost-effective solution for your hydraulic control needs. The P80 series is a line of economical monoblock directional control valves that boasts compact structure, stable performance, and high universality.
With its circuit type parallel design and monoblock structure, the P80 Joystick Directional Control Valve can be customized with 1-7 sections to fit various applications. Its joystick control mechanism allows for precise and smooth movement, making it easy to operate and control.
One of the key advantages of the P80 Joystick Directional Control Valve is its low price point, making it an affordable option for businesses and individuals looking for hydraulic control solutions. Despite its affordability, the P80 series does not compromise on quality, ensuring reliable and consistent performance.
| flow rate | 80 liters |
| number of spools | 2spools with joystick |
| inlet section valve | side inlet, with relief valve |
| relief valve set pressure | 250bar |
| inlet port size | G3/8,G1/2, G3/4 |
| spool type | 4 positons, double acting |
| handle side arrangement | standard handle |
| spool cap side arrangement | 3position, spring return,manual control,detent control,joystick |
| working section arrangement | standard type |
| work port size | G3/8,G1/2,G4/3,G1 |
| outlet section type | top outlet,side |
| outlet port size | G3/8,G1/2,G4/3,G1 |
The hydraulic valve is widely used in hydraulic systems in construction, industry and agriculture.
The valve is adapted to various types of machines such as:sprayers, turners, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, agricultural machines, tractors, industrial machines and other hydraulically operated equipment.
