| Model No.: | 3p40 | Warranty: | 12-18 Months |
|---|---|---|---|
| Spool: | 1, 2, 3, 4, 5, 6, ... | Flow: | 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ... |
| Spool Function: | Floating Control Type | Material: | Cast Iron |
| Highlight: | 3 Spool Directional Control Valve,11GPM Monoblock Directional Control Valve,40 L/Min Directional Control Valve |
||

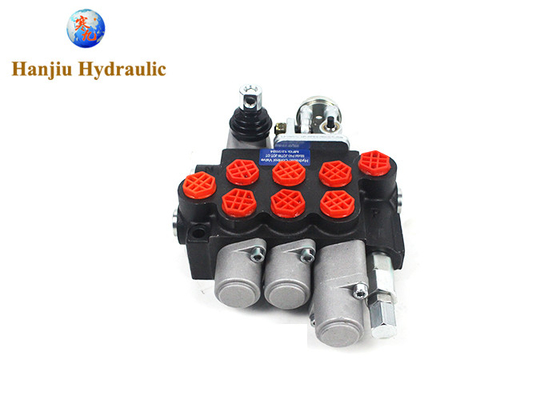

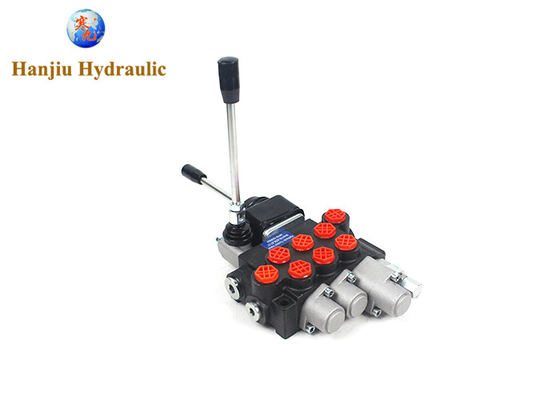

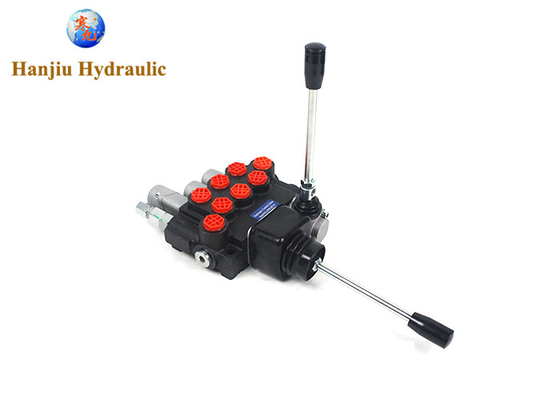

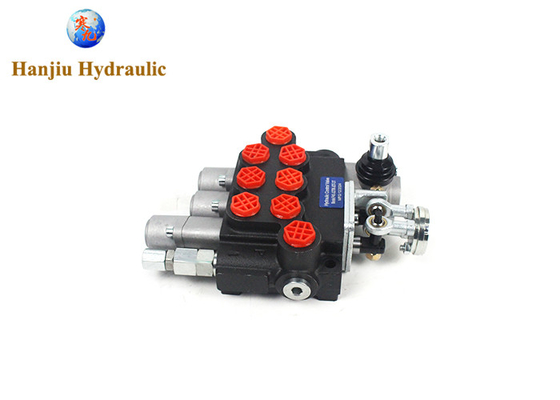

Monoblock Directional Control Valve 40 L/Min (11GPM) 3 Spool 4 Positions Double Actiong + Joystick
P40 series valves with middle-high pressure monoblock construction is developed based on Europe technology.
.Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be returned.
.Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure.
.Oil way: Parallel circuit, power beyond option
.Control Way: Manual, Hydraulic,Pneumatic, Electro-pneumatic, Electro-hydraulic,
Solenoid, Joystick, Joystick and Cable, Micro Switch
.Valve construction: monoblock construction, 1-7 levers.
| Ambient temperature | -40C...+60C |
| Viscosity | 12 ...800 mm2/s |
| Fluid temperature | -15C...+80C |
| Filtration | 10 to NAS 1638 |
| Max operating pressure | 250 bar |
| Back pressure | 50 bar |
| Nominal flow | 40 l/min |
| Leakage(A,B-T) | 15cm3/min at 120bar |
| Spool stroke | 6 mm |
| Actuating force | < 200 N |
| Modification/ Spools | with 1 to 7 |
Pressure range:
Maximum supply pressure: 250Bar (3625,94 psi)
Maximum pressure on return: 50Bar (725,19 psi)
Maximum pressure on sections: 300Bar (4351,13 psi)
The opening pressure of the bypass valve increases proportionally with increasing flow rate:
180 bar (2610,68 psi) at 10 l/min
190 bar (2755,72 psi) at 20 l/min
200 bar (2900,75 psi) at 30 l/min
210 bar (3045,79 psi) at 40 l/min
It is recommended to check and set the correct pressure before commissioning.
Self-adjustable, full rotation 30Bar (435,11 psi change).
