| Item: | Torqmotor | OEM #: | TE0125 |
|---|---|---|---|
| Manufacturer: | Hanjiu | Displacement: | 125ml/r |
| Mounting Flange: | SAE-2 BOLT FLANGE | Shaft Type: | 25mm Keyed |
| Highlight: | SAE 2 Bolt Flange Orbital motor,130cc Orbital motor,25mm Key Shaft Orbital motor |
||

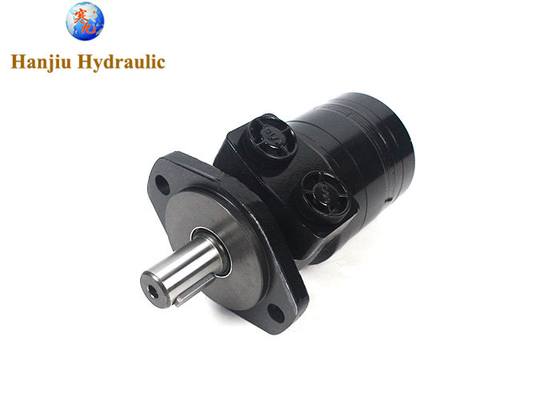

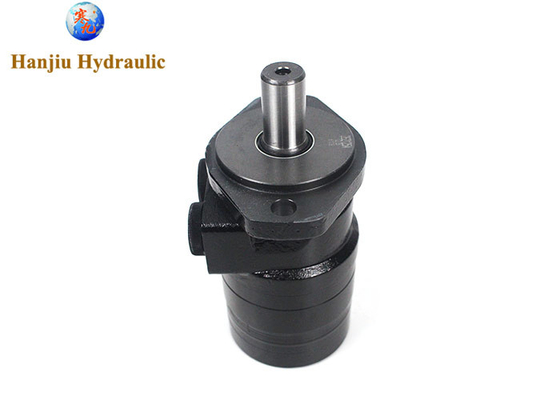

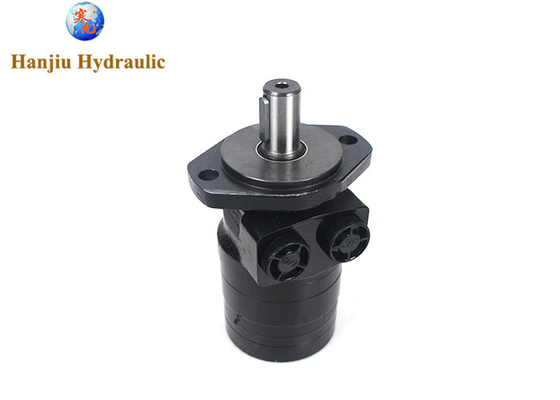

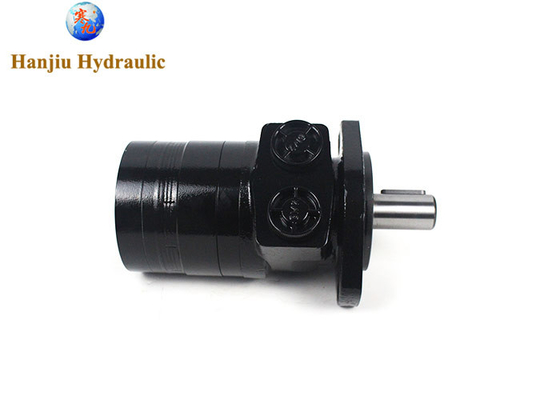

Details specifications More Parker type Torque motors: TB, TC, TJ, TE, TF, TG, TK The HANJIU BME2 Series is a durable hydraulic torque motor with superior side load capacity, high-pressure shaft seal and smooth low-speed operation. HANJIU BME2 motors are designed for vehicle propulsion, augers, chain drives, winches, boom rotate and other light-duty applications. Intermittent pressures go to 27500 psi. Max dynamic side load capability is 1500 lb. The HANJIU BME2 Series is available in 11 displacements ranging fromn 65 cc/rev to 375 cc rev at pressure up to a maximum supply pressure of 200 bar. The BME2 Series can carry up to 1500 lb dynamic side load at the key – Robust construction for longer life – Continuous oil flow across internal splines for longer life – Superior side load capacity – Smooth, extra low speed operation – High pressure shaft seal is standard – Innovative design eliminates the need for a case drain Parker Torque Motor TE Series Orbital motor,130cc, SAE 2 bolt flange with 25mm key shaft
Series:
TE
Shaft:
25mm Straight Key shaft
Rotation:
Standard
Displacement (cm3/rev):
0125
Mounting:
SAE "A" 2 Bolt
Ports:
G1/2
Geometric Displacement:
125 cm3/rev (10 in3/rev)
Maximum Speed:
441rev/min
Maximum Oil Flow (continuous / intermittent):
45 lpm (12 gpm) / 57 lpm (15 gpm)
Max. Differential Pressure (continuous / intermittent):
140 bar (2030 PSID) / 190 bar (2750 PSID)
Maximum Supply Pressure:
200 bar (2900 PSID)
Maximum Torque - Continuous / Intermittent:
245 Nm / 335 Nm
Maximum Performance:
14.1 KW (23.4 HP)
Minimum Starting Torque - Continuous / Intermittent:
245 Nm / 335Nm (3637 lb in)
