Product Details:
Payment & Shipping Terms:
|
| Product: | Forklift Hydraulic Motors | Model Number: | BME2-100-HS-T1-B |
|---|---|---|---|
| Displacement: | 100 Ml/r | Brand: | Hanjiu |
| Highlight: | BME2 series Geroler Orbital Motors,Parker TE Geroler Orbital Motors,Forklift parts Geroler Orbital Motors |
||
Welcome to the website of Hanjiu Technology
We focus on the design, development, manufacture and export of high-quality hydraulic products
You can get hydraulic motors suitable for any equipment here
We have various series, various sizes, various speeds and torques

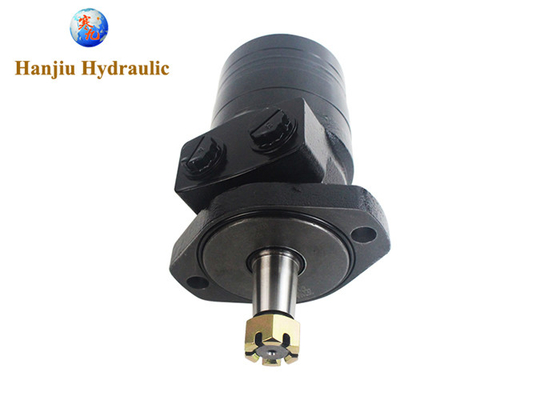

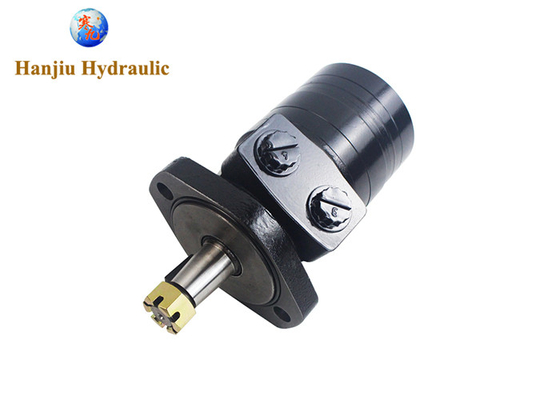

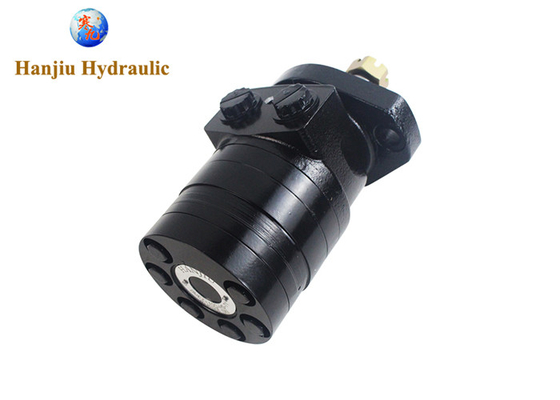

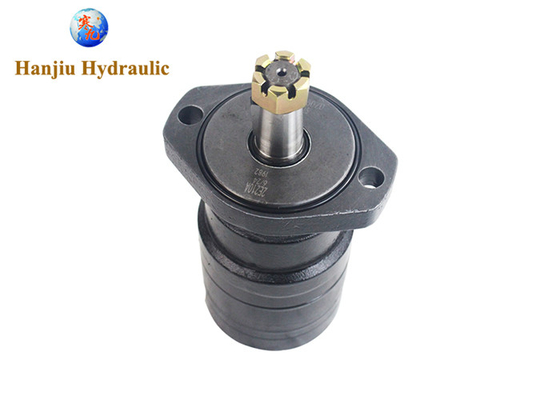

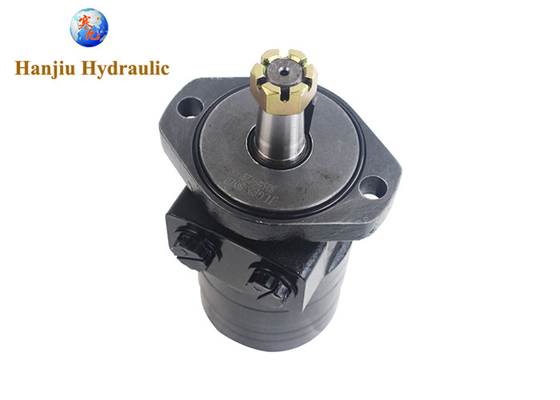

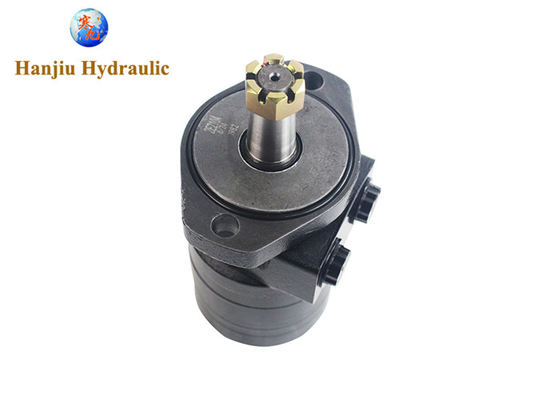

Forklift Parts, BME2 series Geroler Orbital Motors compatible with Parker TE
BME2 series is a forklift hydraulic motor that can be applied to forklift
Features. Displacement: 4.08 – 22.6 in³/rev;
Cont. Torque: 92.9 – 323.8 lbf.ft;
Continuous Speed: 152 – 667 rpm.
BME2 series is a forklift hydraulic motor that can be applied to forklifts.
The hydraulic motor of a forklift converts hydraulic pressure and flow into angular displacement and torque to power the hydraulic system. When the hydraulic motor is not working properly, the forklift cannot operate. The best way to keep the machine running properly is to perform regular maintenance. If the failure is determined to be caused by a motor failure, the motor needs to be replaced. We provide:
Learn about our forklift hydraulic motor series.
To determine the best motor for a specific forklift, you need information about that specific machine. The best starting point is the ID plate of the forklift, and the ID plate of the forklift hydraulic motor. It is installed on the existing hydraulic motor. Send a picture of the ID plate to our experts and they will tell you which motor you need. Or, if the ID plate is not available, contact us with your hydraulic motor details to help match and determine the best hydraulic motor for the job.
We offer a full range of forklift hydraulic motors in a variety of sizes, capacities and efficiencies including:
If you have questions about which motor is best for your needs, please contact us! Our skilled team is happy to help you.
Forklift hydraulic motors to help you move forward. We have high-quality hydraulic motors compatible with various models of various brands of forklifts. Contact us now and we will be happy to help you.
About Hanjiu Technology:
Hanjiu Technology is a young, creative and energetic hydraulic team founded in China, dedicated to serving the world's hydraulic applications, focusing on R&D, design, manufacturing and export. The areas of expertise include but are not limited to material handling equipment, construction equipment, agricultural machinery tractors, ships, mobile equipment, forklifts, aerial work platforms, harvesters, loaders, pipeline machinery, mixers, winches, steering systems, etc.
Frequently Asked Questions:
What is the difference between a hydraulic pump and a hydraulic motor?
Which hydraulic motor is the most efficient?
Can hydraulic motors be repaired?
Buy forklift hydraulic motors online
Here is it's technical details:
| Type | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 230 | 250 | 295 | 315 | 375 | ||
| Geometric displacement (cm3 /rev.) | 66.8 | 81.3 | 101.6 | 127 | 157.2 | 193.6 | 226 | 257 | 287.8 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 667 | 543 | 439 | 350 | 283 | 229 | 247 | 216 | 196 | 178 | 152 |
| int. | 842 | 689 | 553 | 441 | 355 | 289 | 328 | 287 | 254 | 235 | 199 | |
| Max. torque (N•m) | cont. | 126 | 157 | 191 | 245 | 307 | 382 | 378 | 381 | 393 | 448 | 439 |
| int. | 176 | 215 | 268 | 335 | 422 | 520 | 528 | 543 | 547 | 587 | 613 | |
| Max. output (kW) | cont. | 8.3 | 8.8 | 7.9 | 8.9 | 8.9 | 9 | 9.9 | 9.3 | 8.7 | 8 | 7.6 |
| int. | 13.9 | 14.4 | 13.5 | 14.1 | 15.6 | 15.7 | 17.9 | 16.5 | 15.6 | 14.3 | 14 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 10 | 10 | 9 |
| int. | 19 | 19 | 19 | 19 | 19 | 19 | 165 | 15.5 | 14.5 | 13.5 | 12.5 | |
| peak | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 17 | 16 | 16 | |
| Max. flow (L/min) | cont. | 45 | 45 | 45 | 45 | 45 | 45 | 57 | 57 | 57 | 57 | 57 |
| int. | 57 | 57 | 57 | 57 | 57 | 57 | 75 | 75 | 75 | 75 | 75 | |
BME2 is a Parker TE, TB, TC replacement motor, it's interchangeable type, which is our specialty.
It has the same shape and mounting dimensions as the Parker motor, which perfectly matches the application of the Parker motor, and can be installed directly without any modification to the hydraulic system. The performance is the same as the Parker motor, the price is 3/5 or more cheaper than the Parker motor, and the delivery time is stable and fast. Models and specifications are abundant. Full line of high and low speed motors provide power ranging up to 613 N*m torque with speeds ranging from 152 rpm to 842 rpm. A complete range of sizes is offered in gear, gerotor operating configurations. Hanjiu hydraulic motors deliver excellent performance with high efficiency, true wear compensation and longer service life.
Hanjiu BME2 series Gerotor Motors include ligh duty motors to replace Parker Light Duty Motor TB Series, TJ Series, TC Series, TS Series, TE Series. Also have more other series Gerotor Motors include medium duty motors to replace Parker Medium Duty Motor TF Series, TG Series, TH Series. They are rugged Low Speed High Torque (LSHT) orbital motors featuring robust construction with continuous oil flow across splines for longer life, superior side load capacity, and smooth extra low speed operation. A high pressure shaft seal is standard. Dependability is based on high quality design and manufacturing.
