Product Details:
Payment & Shipping Terms:
|

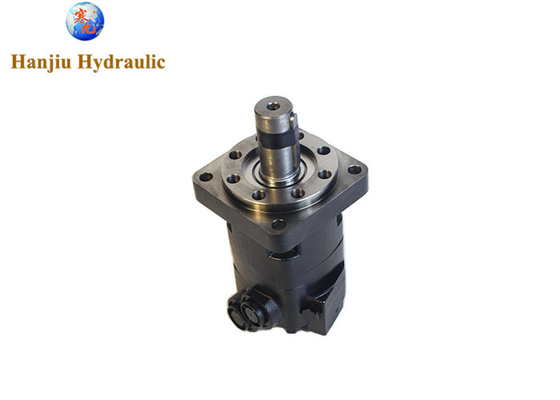

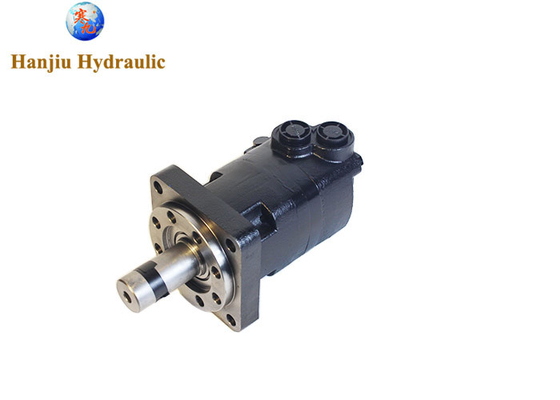

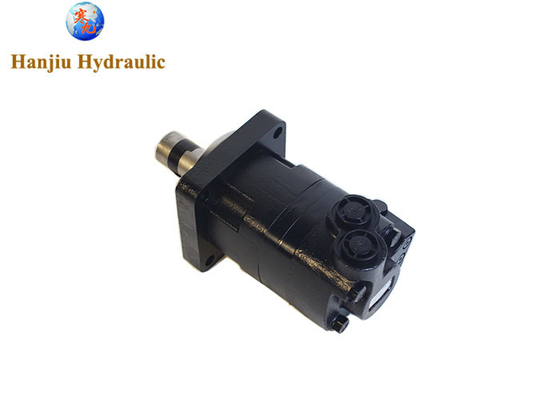

| Features: | OEM Quality | Type: | Disc Geroler Motor |
|---|---|---|---|
| Series: | 109-1185-006 | Material: | Cast Iron |
| Origin: | China | Displacement: | 130 CM3/R |
| Mounting Type: | STANDARD, 4 BOLT, SAE C | ||
| Highlight: | 109-1185-006 Hydraulic Motor,1091185006 Hydraulic Motor,Eaton Char-Lynn Hydraulic Motor |
||
Quick review:
| Mounting flange | SAE-C 4 bolts |
| Drive shaft | Cylindrical 40 mm |
| Displacement (cm³/r) | 130 |
| Max. operating pressure (bar) | 205 |
| Max. torque (Nm) | 375 |
| Max. oilflow (l/min) | 95 |
| Max. Speed (rpm) | 722 |
| Direction of rotation | Clockwise and counterclockwise |
| Inlet port | BSP female 3/4" BSP |
| Outlet port | BSP female 3/4" BSP |
| Positition oil ports | Side |
| Options | No |
| Drain port | 1/4" (8) internal thread (BSPP) |
| Seal material | NBR |
| Shaft seal type | Standard |
| Type | Geroler Disc Valve |
| Code | 109-1185 |
other types
| 110 | 130 | 160 | 205 | 245 | 310 | 395 | 495 | 625 |
| 4-110AAA-F | 4-130AAA-F | 4-160AAA-F | 4-200AAA-F | 4-250AAA-F | 4-310AAA-F | 4-390AAA-F | 4-490AAA-F | 4-630AAA-F |
| 4-130ABA-F | 4-160ABA-F | 4-160ABA-F | 4-200ABA-F | 4-250ABA-F | 4-310ABA-F | 4-390ABA-F | 4-490ABA-F | 4-630ABA-F |
| 4-110ACA-F | 4-130ACA-F | 4-160ACA-F | 4-200ACA-F | 4-250ACA-F | 4-310ACA-F | 4-390ACA-F |
Geroler motors offer several key advantages that make them well-suited for a wide range of applications
1. High Torque Output
Geroler motors are renowned for their exceptional torque output, even at low speeds.
This makes them ideal for heavy-duty applications where significant rotational force is required.
2. Smooth Operation
Geroler motors provide a smooth and pulsation-free operation, ensuring consistent performance and reduced noise levels.
3. Compact Design
Geroler motors are known for their compact size, allowing for efficient use of space in various installations.
4. Reversibility
Geroler motors can operate in both clockwise and counterclockwise directions, providing versatility in applications requiring reversible motion.
5. Wide Speed Range
Geroler motors are capable of operating over a wide range of speeds, making them adaptable to various requirements.
6. High Efficiency
Geroler motors generally exhibit high efficiency, converting hydraulic energy into mechanical energy with minimal losses.
7. Reliability and Durability
Geroler motors are designed for reliability and durability, ensuring long-term performance and minimal maintenance.
8. Versatility
Geroler motors are available in various sizes and configurations, making them suitable for a wide range of applications across different industries.
9. Low-Speed Performance
Geroler motors are particularly well-suited for low-speed applications, where they can maintain high torque output without sacrificing efficiency.
10. Ease of Maintenance
Geroler motors typically require minimal maintenance, with simple procedures for inspection and repair.
These advantages make Geroler motors a valuable choice for applications demanding high torque, smooth operation, and reliability.
